The Geological, Engineering, and Financial System Dynamics of the Canadian Oil Industry

Alternative Title: Canada will not be "Fine"

This is a comprehensive expansion dispatch for:

Optimal Zero Sum Game Theory: The American Century

You MUST read the previous dispatch in full to understand the logic flow and importance of what is being discussed here. There will be no explanation or re-exploration of that dispatch, its vernacular and scenario parameters herein.

That dispatch covers the Top Down view from oil logistics, infrastructure, macroeconomic, legal and game theory angles of how the US and Canada will behave since the Venezuelan Oil domino has fallen. It has a detailed look at how Canada is severely underestimating Albertan Secession dynamics and how the US may deliberately weaponize this to achieve Oil Superpower Status.

Total combined reading time for both estimated at 3 hours. You have been warned.

The Payoff: These 2 dispatches will ensure you have the most unbiased and technically comprehensive understanding of the how the initial domino of Venezuela will affect the geopolitical and macroeconomic balance of North America and possibly the World.

IMPORTANT: WCS PRICE IS ALWAYS QUOTED IN USD. CURRENCY VALUES ARE CONSISTENT FOR PROFIT/LOSS AND BOOK VALUE CALCULATIONS.

This is a detailed exploration of The Dilemma:

• “If there is a WCS differential blowout, why not shut down production?”

One would think it should be simple: Save the profit margins and restart when conditions are favorable.

Systems Dynamics says otherwise, requiring multi level and multi domain thinking.

We have to answer a “simple” one line question with 30 000 words.

---

Canadian Oil Inventory

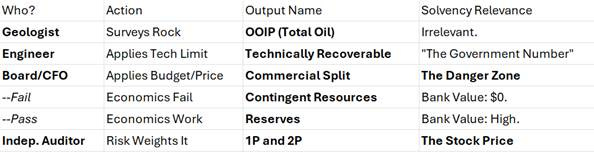

Classification Hierarchy for CORPORATE Entities:

1. Total Petroleum Initially In Place (TPIIP): All the oil.

2. Technically Recoverable: What the engineers can get out.

3. Contingent Resources: We know its there and recoverable, but we can’t sell it yet (Profit/Pipe issues).

4. Reserves: Recoverable + Profitable + Pipe is Ready + Plan is Approved.

Note the distinction is specifically for Corporate Entities.

This is to protect investors. They are not buying science projects that “may” deliver billions of barrels in the future that cost $1000/bbl to produce.

When we are reading reports of “Oil Reserves” by country, we are actually referring to Number 2.

But the solvency and book value of an oil company is based upon Number 4. By law, companies must change their booked assets between 3 and 4 depending upon the full production and profitability loop. Countries can simply report oil volumes based on Number 2.

It is crucial to understand that oil reserves are both geology and accounting ghosts.

---

Step 1: The Geologist’s Reality - Total PIIP

Input: Seismic data, core samples, well logs.
Question: “How much oil is physically inside this rock?”

The Geologist calculates the rock volume x porosity x oil saturation.

Result: Total Petroleum Initially In Place (PIIP) / Original Oil In Place (OOIP).

Scale: This is the massive number.

Financial Value: $0. (You can’t sell rock).

Step 2: The Engineer’s Reality - Technical Recovery

Input: Steam-Oil Ratio (SOR), Temperature constraints, Physics.
Question: “How much of this oil can physically move?”

The Engineer applies a Recovery Factor (RF).

SAGD RF: ~50-60%.

Cold Flow/CHOPS RF: ~10-15%.

Calculation: TPIIP x RF

Result: “Technically Recoverable Resource.”

This is still not an asset. It is just “Accessible Inventory.” This is usually where the Govt of Canada gets their 160 Billion figure.

Step 3: The Commercial/Project Gate

The Technically Recoverable barrels now hit a fork in the road defined by the NI 51-101 / COGEH Guidelines.

To cross the fence from Resource (Unbankable) to Reserve (Bankable), the oil must pass three tests:

1. Economic Viability: Positive Net Present Value (NPV) at forecast prices.

2. Market Access: Pipeline capacity available.

3. Intent: A timeline for development within a specific window (usually ~5 years).

Scenario A Fail

If the timeline is too far out, price is too low, the pipe is full, or the board hasn’t approved the money:

· The barrels are labeled Contingent Resources.

· Sub-classification: “Development Pending” or “Economic Status Undetermined.”

· Investor View: These usually show up in a separate table deep in the AIF (Annual Information Form), unrelated to cash flow projections.

Scenario B Pass

If the netback is positive and the Board signs the check:

· The resource barrels graduate to Reserves.

Step 4: The Reserve Auditor (GLJ / Sproule / McDaniel)

Canadian companies must hire an Independent Evaluator (a specialized engineering firm) to certify the Reserves.

The Evaluator sorts the “Passed” barrels by Confidence/Probability:

· Proved (1P): “We are 90% sure this oil will payout.” (Conservative).

· Proved + Probable (2P): “We are 50% sure.” (The ‘Best Estimate’ target).

· Possible: “10% chance.” (Speculative upside).

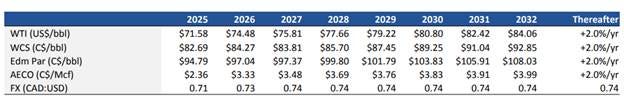

The Pricing Table
The Evaluator runs these cash flow models using a Consultant Price Deck.

The Bias: These decks usually forecast WTI rising to $80+.

The Evaluator should be running a STRESS TEST for a true audit. This is where the CIA Research Team comes in. We are the independent auditor oil companies and banks didn’t realize they needed.

Step 5: The “De-Booking” Audit Reality Check

Once the Reserves are booked, they are not safe forever.

At Year-End (and sometimes quarterly triggers), the company must re-run the tests.

The “Orinoco Crash” Simulation:

1. Price Check: The Evaluator inputs the new market reality ($30 WCS).

2. The Discounted Cash Flow model turns RED (Negative NPV).

• PUD-Proved Undeveloped barrels are the first to die because they carry capital cost burdens.

• PDP-Proved Developed Producing barrels take a massive hit for cashflow depending on the specifics for that geology and operation. This profitability audit may delete current day PDP wells at current prices to the CONTINGENT category as well.

3. Re-Classification: The Evaluator strips the barrels out of Step 4 (Reserves) and pushes them back into Step 3 (Contingent).

4. Financial Hit: The “Value of Reserves” line on the balance sheet drops.

Step 6: What the Public/Investor Sees

The investor reads the AIF (Annual Information Form) and the Year-End Reserves Statement.

Key Tables:

1. “Reconciliation of Reserves”: This table shows Technical Revisions (We lost oil because rocks are bad) and Economic Revisions (We lost oil because price dropped). In a crash year, the “Economic Factors” column will show a massive negative number (e.g., -500 MMbbls).

2. “Net Present Value (NPV10)”: The summation of future cash flow discounted at 10%. Investors assume this is cash. It is not. It is a model based on the Evaluator/Company price deck.

Oil Inventory Summary

Orinoco Pricing shuts the gate. The Reserve Auditor (Step 4) is legally obligated to stop the flow of new PUDs and claw back existing PDP, effectively starving the company’s financial valuation.

---

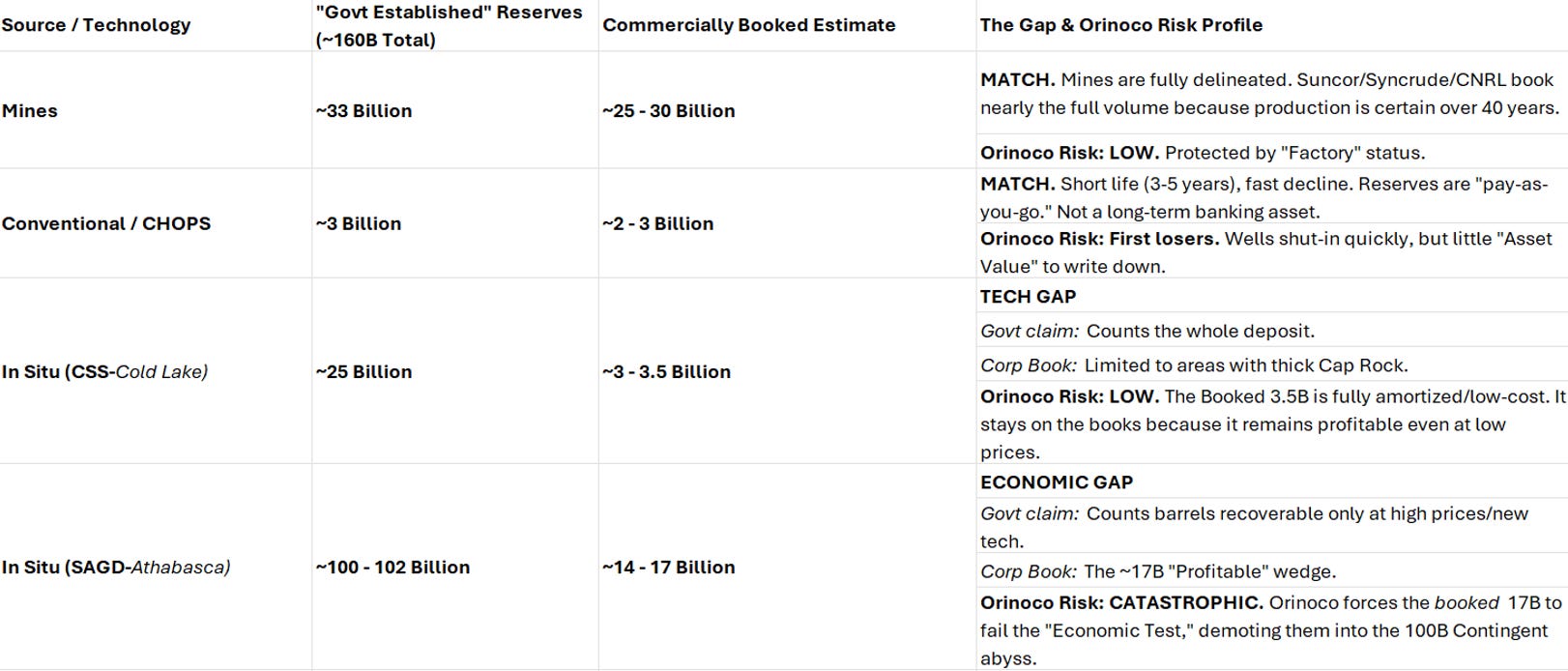

Solving the 160 Billion Barrel Puzzle

The Canadian Government (AER) states Canada has ~160+ Billion barrels of “Established Reserves.”

Corporate Booked Reserves (what companies actually claim in annual reports) sum to a much lower number (roughly 40-50 Billion total across the sector).

Contingent Resources

The reason you don’t see that massive SAGD 100+ billion barrel chunk on corporate balance sheets is because of Development Horizon Restrictions.

You can only book commercial reserves from contingent if you plan to produce them within a “reasonable timeframe” (usually ~30-50 years max) and generally require a line-of-sight to capital funding. Along with expected profit at current market prices.

The Oil Sands are so big that the Government counts barrels that won’t be produced for 80 or 100 years. There is a mismatch between Corporate Accounting and Government reserve numbers.

Companies hold these extra billions as “Contingent Resources” (or sometimes “Best Estimate Contingent Resources”).

“We own the lease, we know the oil is there, the government counts it, but we have no immediate plan/money to build the plant to get it.”

Accounting Apocalypse

If the Orinoco shutdown scenario effect hits:

1. The Reserve Write-Down - The Immediate Crash:

• Companies lose PDP/PUD book value immediately. Stocks crash. Covenants breach. Banks seize assets.

2. The Contingent Wipeout - The Long-Term Value Destruction:

• That massive backlog of “Missing 100 Billion” SAGD barrels?

• To turn “Contingent” into “PDP/PUD” you need a price signal that justifies building a new plant.

• If Orinoco Heavy holds the price down permanently, those contingent numbers never graduate. They become “Stranded Assets.”

• Companies like Cenovus or CNRL trade at a premium because the market gives them “option value” for those future billions. If the shutdown phase starts, the market realizes that option value is zero.

Oil Inventory Summary

• Mines: Solid. Booked. Safe from sterilization (but vulnerable to high costs). Full product loop creates SCO.

• CHOPS: Low reserves, purely cash-flow based.

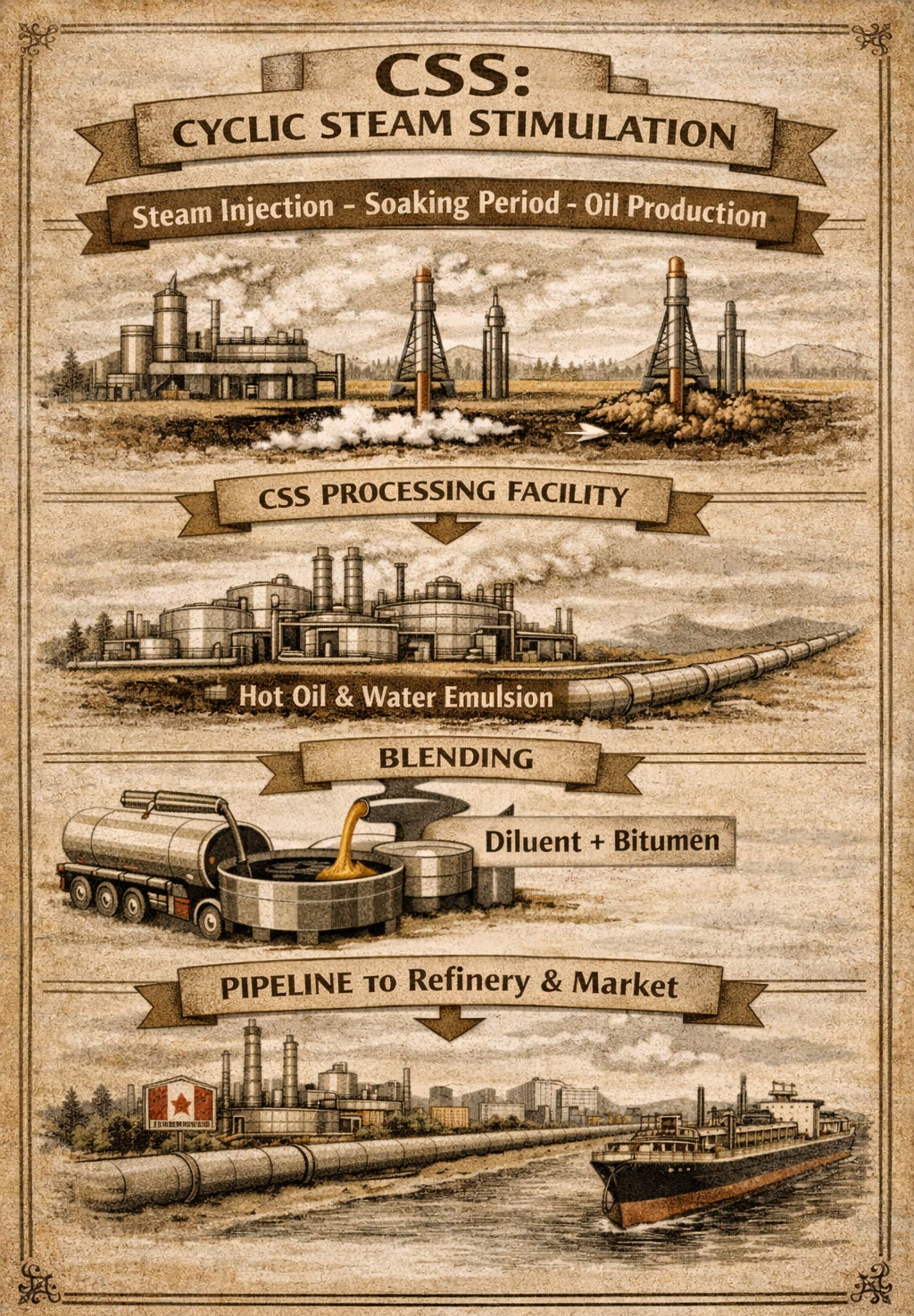

• CSS: Minimal effect.

• SAGD:

  • Booked: ~17 Billion. Highly leveraged and based upon financial accounting rules.

  • Contingent Resources: ~100 Billion. The vast wealth stays frozen in the ground forever.

Canada sits on a massive ocean of “Known but Unbooked” In Situ bitumen that currently waits for a pipe and a price.

Orinoco Displacement thesis ensures they get neither.

---

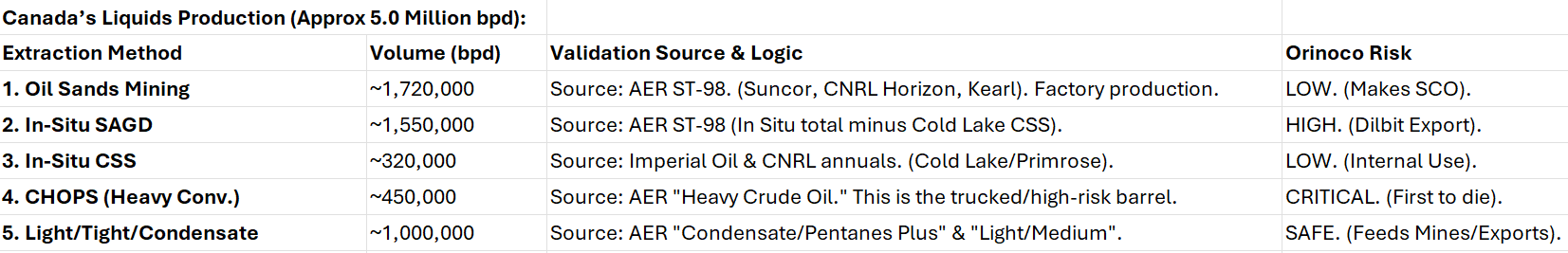

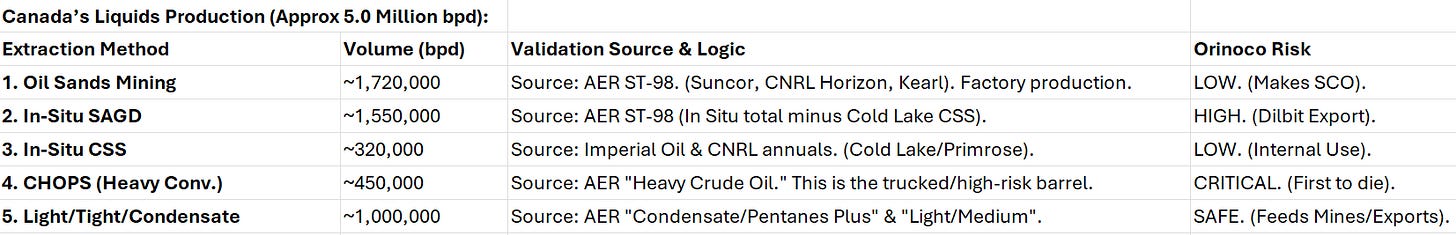

Canadian Oil Types and Extraction Technologies

We will explore each type below to understand the unique pros and cons of each oil type.

---

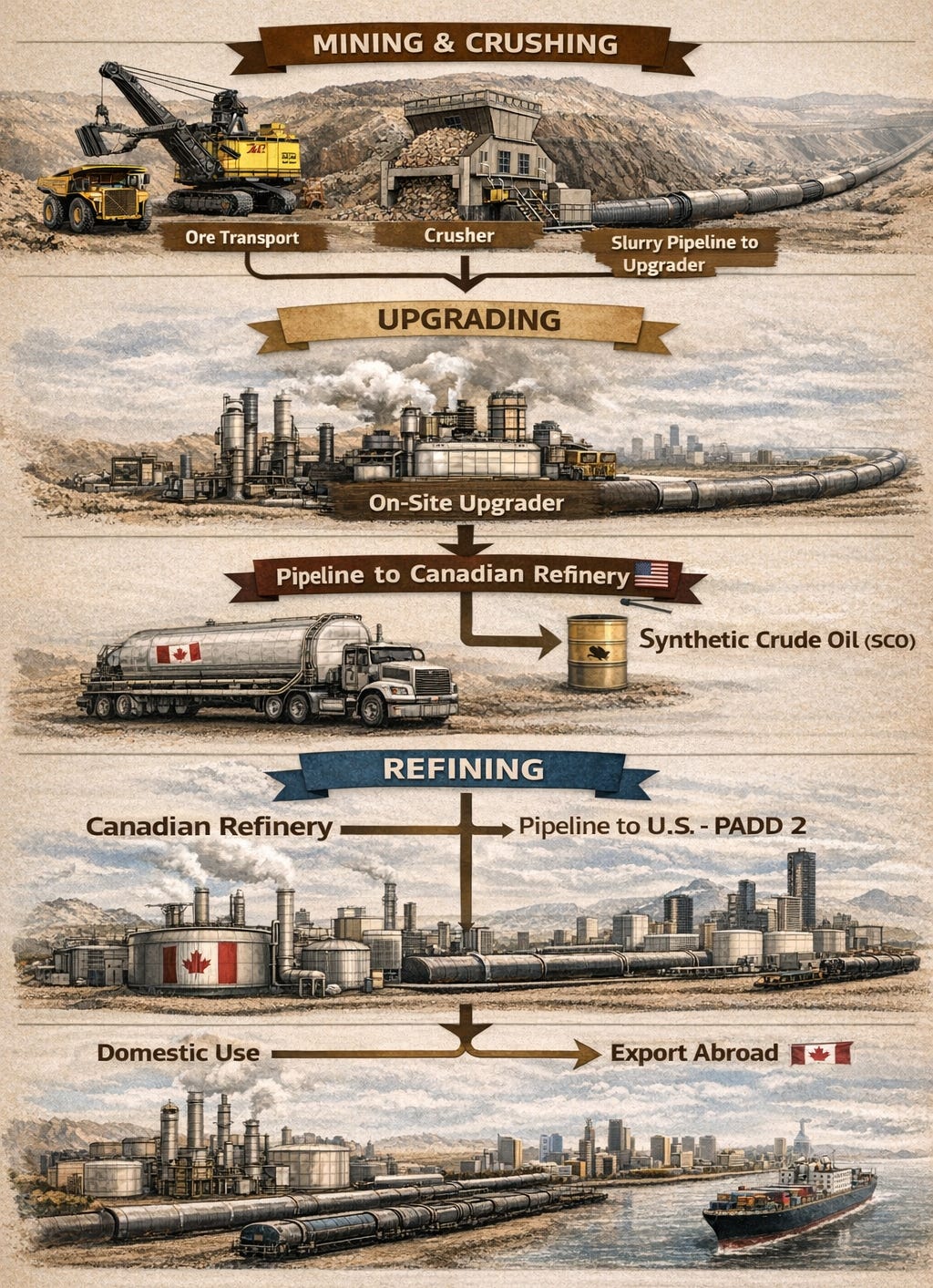

Mined Bitumen

Mining bitumen is a “Continuous Integrated Factory.” There are zero gaps, zero third-party drivers, and zero decisions made on a daily basis. The oil moves on a metaphorical conveyor belt from the dirt to the refinery.

This efficient, relentless flow is why it bulldozes the competition in the pipeline queue.

The Bully

Mining projects have massive fixed costs (Interest on $20B loans, Unionized labor camps, Heating bills for upgraders).

It might cost $30/bbl (all-in) to build AND operate the mine. But $15 is the actual operating cost.

As long as the oil price is above $15, The Mine Runs Full Tilt.

This spreads those fixed costs over as many barrels as possible. If they shut down, they still have to pay the fixed costs, and they go bankrupt faster.

If you keep producing you lose $800 000 per day. But if you stop production, you lose $1M per day. It’s the Devil’s bargain. Figures for illustrative purposes only. Actual numbers based on per site oil volumes and oil prices.

SCO-Synthetic Crude Oil is produced from mined bitumen. This is already high value and thus it is more profitable to transport than CHOPS or SAGD grades.

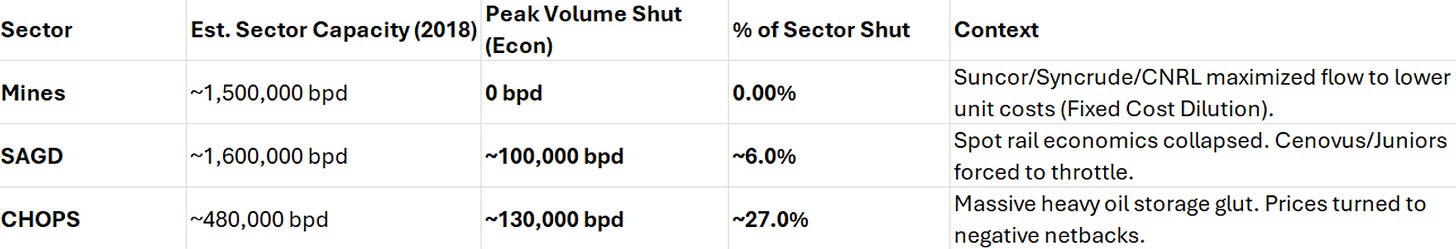

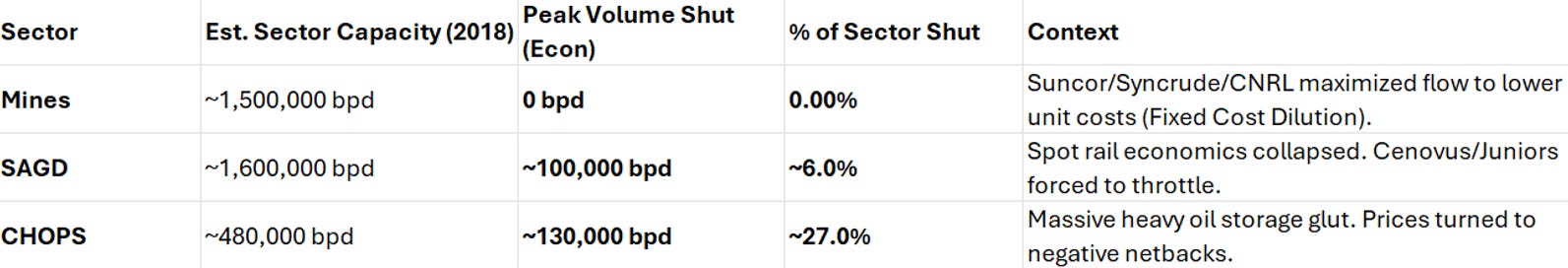

Historical Proof (2018): Suncor Base Plant, Syncrude, and CNRL Horizon did NOT cut production voluntarily. They over-filled the pipeline, driving the differential to -$50, effectively choking the rest of the market.

---

The Pit Quarry

Massive P&H 4100 Electric Rope Shovels and Caterpillar 797 Heavy Haulers (400-ton capacity) are operated in this mining operation. It looks more like a perpetually in progress construction site.

The Variable Cost: Diesel fuel and tires.

Unlike a reservoir that relies on pressure/heat, the mine has no geological uncertainty. The daily output is determined solely by how fast you drive the trucks.

Preparation - Crushing & Slurry

After being mined and loaded on trucks, the truck dumps the ore into a giant “Crusher” / Sizer.

The crushed ore is mixed with hot water. It travels via a large diameter pipeline to the extraction plant.

Friction: Near Zero. From this point on, the product never stops moving and never sees a truck again.

Primary Extraction - Separation Process

The slurry hits a Primary Separation Vessel (PSV).

Warm bitumen floats to the top (froth); sand sinks to the bottom (tailings).

The floating froth is dirty. They wash it with Naphtha or Paraffin to remove the fine clay.

Status: At this stage, it is just “Bitumen” (identical to SAGD). But it doesn’t stop there.

---

Upgrading

This is the shield against Orinoco Displacement. Most legacy mines (Syncrude, Suncor, CNRL Horizon) feed an On-Site Upgrader.

The bitumen enters a Fluid Coker (Syncrude) or Delayed Coker (Suncor).

The heavy carbon molecules (”Coke”) are cracked and physically rejected as a solid waste product (Petcoke).

Output: Synthetic Crude Oil (SCO).

• Specs: ~30-34° API (Light Oil), Zero Residue, Low Sulfur.

• Value: WTI Pricing (or close to it).

Horizontally Integrated

Suncor (Upstream) tells Suncor (Refinery) that the oil is coming.

Because the operator and assets are investment-grade, they have the priority on the Enbridge Mainline. They hold the long-term “Take-or-Pay” committed space contracts wherever possible with TMX or Keystone.

They displace Spot shippers (CHOPS) via apportionment when the pipeline space is over requested during spot shipping crises, guaranteeing their product gets to market.

The SCO moves in massive, high-speed, low-viscosity batches. Enbridge prefers these batches because they reduce power consumption on the pumping stations (easier to pump light oil than heavy dilbit).

Suncor Mining does not need to beg a Texan to buy its oil. It ships the oil to Suncor Refining. The demand is verified internally. Orinoco cannot displace a barrel that never hits the open market.

Transport

Why Mines dominate the pipeline logic:

• No Diluent Required: Because SCO is light oil (like Arab Light), it needs 0% Condensate.

• SAGD/CHOPS: To ship 1 barrel of Bitumen, you must inject 1.4 barrels of “Stuff” (Blend) into the pipe.

• 0.4 / 1.4 = 0.3 diluent fraction ; if 1 barrel shipped it remains 0.7 bitumen and 0.3 diluent.

• Mining: To ship 1 barrel of SCO, you inject 1 barrel of SCO.

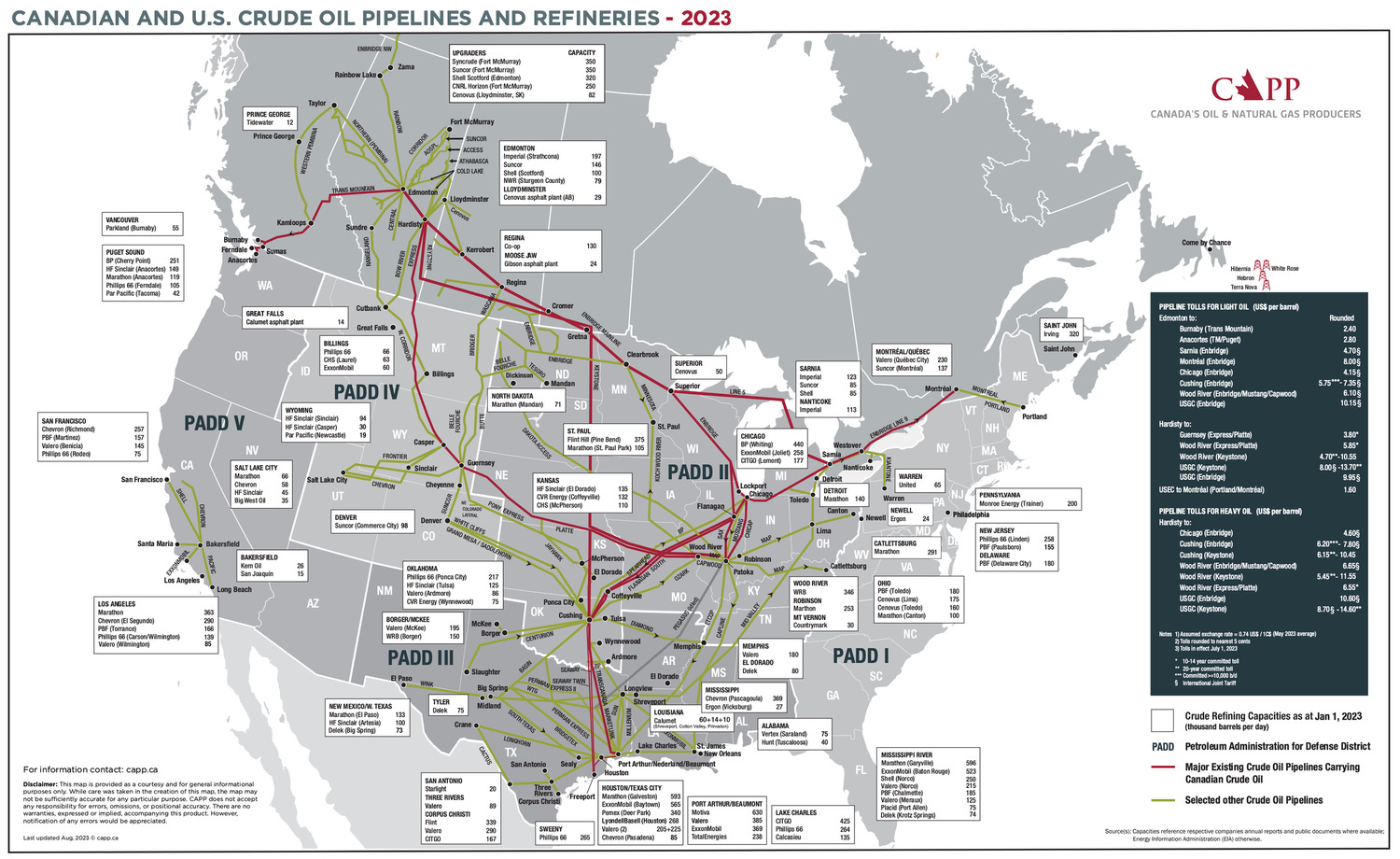

The SCO flows directly into dedicated “Feeder Pipelines” (like the Oil Sands Pipeline corridor) owned by the Majors, connected straight to the Hardisty Mainline hub.

Final Receipt

Destination: Sarnia (Ontario), Chicago (PADD2), or Denver.

Much SCO avoids PADD3 Texas entirely, since SCO is light oil and PADD3 already has that from US shale plays.

Refined products on the Canadian side can be used domestically or exported internationally.

SCO or refined products sent to the US can be used there or upgraded further as needed for PADD2 requirements.

A refinery still needs “Light” barrels to balance the slate. The demand for SCO does not vanish; it remains robust. PADD2 will always want this.

Physical Inflexibility - The Start/Stop Cost

• Thermal Inertia: Cokers operate at 900°F+. If you shut them down rapidly (”Crash Cool”), the fluid inside hardens into concrete-like coke.

  • Repair Cost: Hundreds of millions of dollars and 3–6 months to drill out the coke and repair the steel.

• Frost Risk: The Mines are in Northern Alberta. If the plant stops circulating fluid in winter (Jan 2026), miles of pipe freeze and burst.

• Operators will burn cash for quarters before they risk the catastrophic damage of a full shutdown.

Mined Bitumen Summary

Mined Bitumen isn’t just “last to stop” because it’s big. It survives because it has physically transformed itself out of the market segment that Venezuela is attacking. It is no longer selling “Tar”; it is selling “Pre-Refined Feedstock” SCO to a customer base (PADD2) that Orinoco cannot reach easily.

Shutdown Profile: Near Zero flexibility. Mines operate like factories. You cannot shut them down without massive mechanical risk to upgraders and huge restarting costs. They will fight to the death to keep flowing.

But geologically, mined bitumen is the BEST candidate for cutting production. They experience zero shutdown damage. The reserves sit there and do nothing.

In the face of the Orinoco Displacement:

1. Chemical: They sell Light Oil (SCO) which Venezuela doesn’t have.

2. Economic: Their marginal cost to run is low enough to survive price wars.

3. Logistical: They own the pipeline contracts and don’t need diluent.

4. Strategic: They sell to themselves via Refineries integration.

Mines are the “Last Man Standing.” They will likely be the only entities still producing 90%+ capacity while CHOPS and SAGD are liquidated.

---

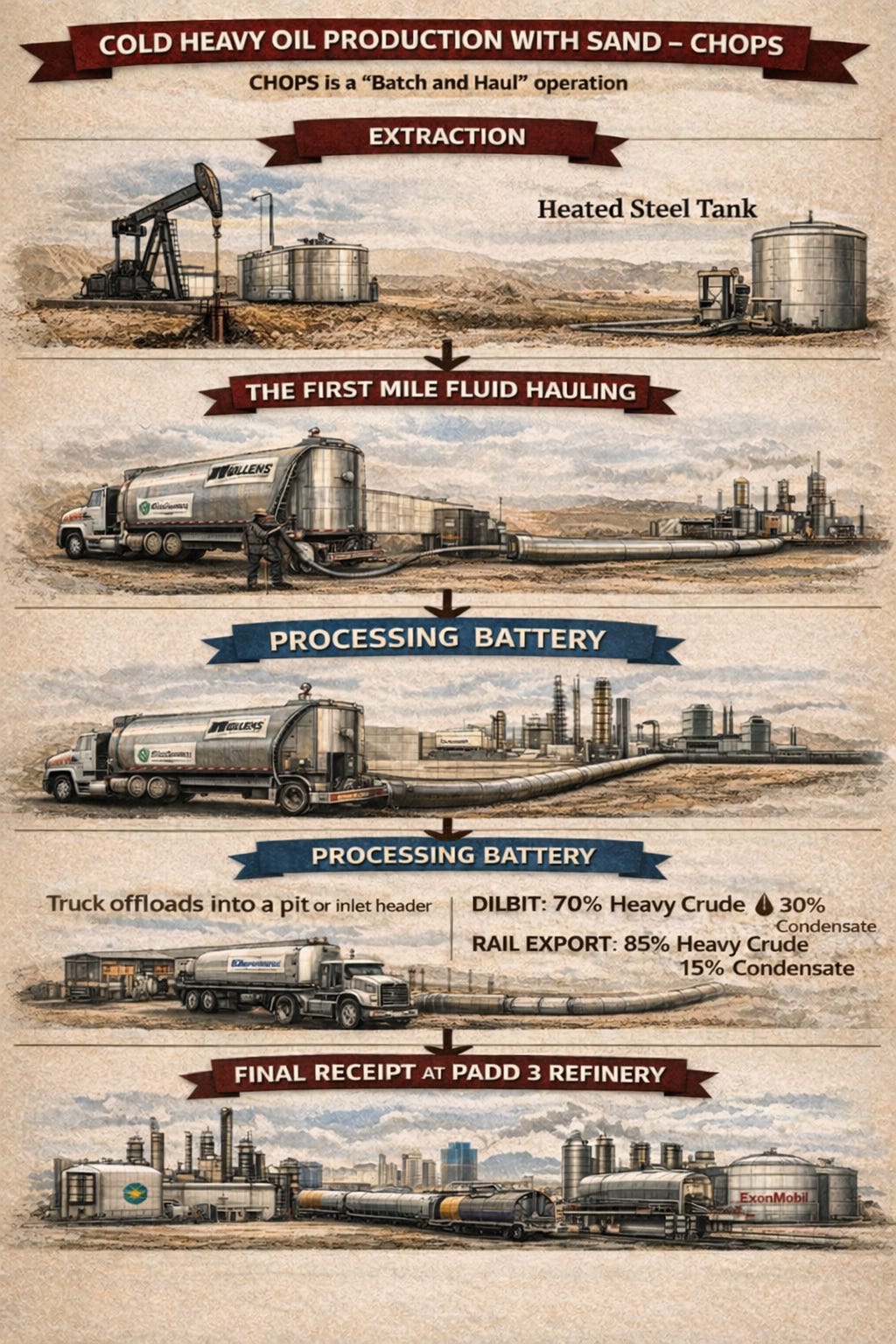

Cold Heavy Oil Production with Sand - CHOPS

A messy, high-friction logistics chain explains exactly why it is the most vulnerable barrel in Canada.

Unlike a SAGD or mined bitumen facility (where oil flows from the reservoir to the pipeline in a closed loop), CHOPS is a “Batch and Haul” operation.

High Variable Costs (Trucking, Power, Treating fees) ensure they shut down relatively fast.

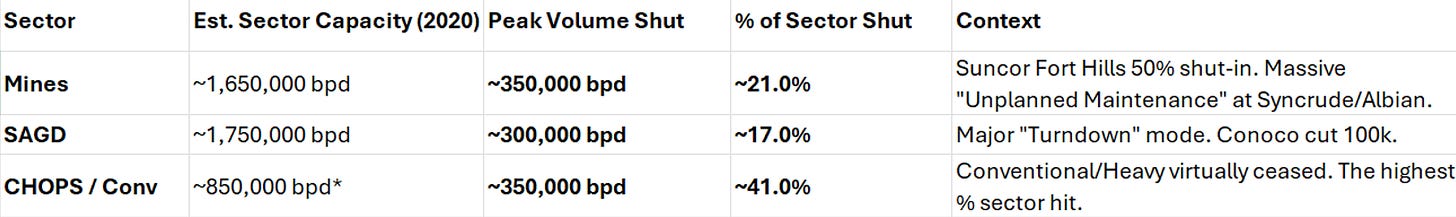

Historical Proof (2020): Companies like Baytex and smaller privates shut in ~80-100% of their heavy oil immediately.

---

Extraction

A vertical well is drilled with a Progressive Cavity Pump (PCP) or pump jack at the surface driven by an electric or gas motor.

The pump brings up “Emulsion.” It is not just oil; it is a sludge consisting of Heavy Oil + Water + Natural Gas + Sand.

The emulsion is pumped directly into a generic, heated steel tank (400-1000 bbl) sitting on the dirt lease. This extraction method is similar to Orinoco Heavy.

Vulnerability: There is no pipeline here. Once that tank is full, the pump must shut off.

The First Mile Fluid Hauling

A sensor (or a guy with a stick) sees the tank is full.

A third-party trucking company (e.g., Mullens, Rosenau) dispatches a tanker.

1. Driver connects hoses.

2. Sucks up the sand/oil sludge.

3. Drives 20km - 100km to a processing plant.

The producer pays this bill instantly. Cost is charged by the hour or cubic meter.

Processing Battery

Truck offloads into a pit or inlet header at a Third-Party Battery (e.g., owned by a midstreamer like Secure Energy or Tervita).

The sludge goes through:

1. Free Water Knockout (FWKO): Separates the bulk water.

2. Heats the oil to ~80°C to break the emulsion.

3. Desander/Centrifuge: Spins the remaining sand out of the oil.

4. Clean marketable crude is produced.

This is often the point of sale. The producer pays Treating cost to the Battery operator. The volume is measured, and the Aggregator takes title here.

The Battery typically pushes the Clean Crude into a small local pipeline (feeder) that runs to a major hub like Hardisty or Edmonton.

The oil is technically useless because it is too thick to export. It must be doctored.

• For PIPELINE Export (Dilbit):

  • The Midstreamer mixes the Heavy Crude (70%) with Condensate (30%).

  • Goal: Reduce viscosity so it can move on the Mainline.

• For RAIL Export (Railbit):

  • The Midstreamer mixes Heavy Crude (85%) with Condensate (15%).

  • Goal: Just flowable enough to load/unload hot.

The Battery operator must buy diluent to be able to transport via pipeline. They charge the CHOPS producer directly.

The Aggregator Delivery Guillotine - No Pipeline Market Access

CHOPS producers generally do not own pipeline space. They sell to “Aggregators” (Midstream trading houses like Plains or Gibson) at the terminal gate.

The Aggregator buys the oil spot price (day-to-day) to fill their uncommitted “Spot” space on the pipeline.

When the Mines (Suncor/CNRL) over-nominate and fill the Mainline to 100%, Spot capacity shrinks to zero.

The Aggregator calls the CHOPS producer: “We are not posting a price today. Do not send trucks.”

The market doesn’t just crash for them; it physically vanishes. They literally cannot sell the oil for $0.01 because the Aggregator buyer refuses delivery.

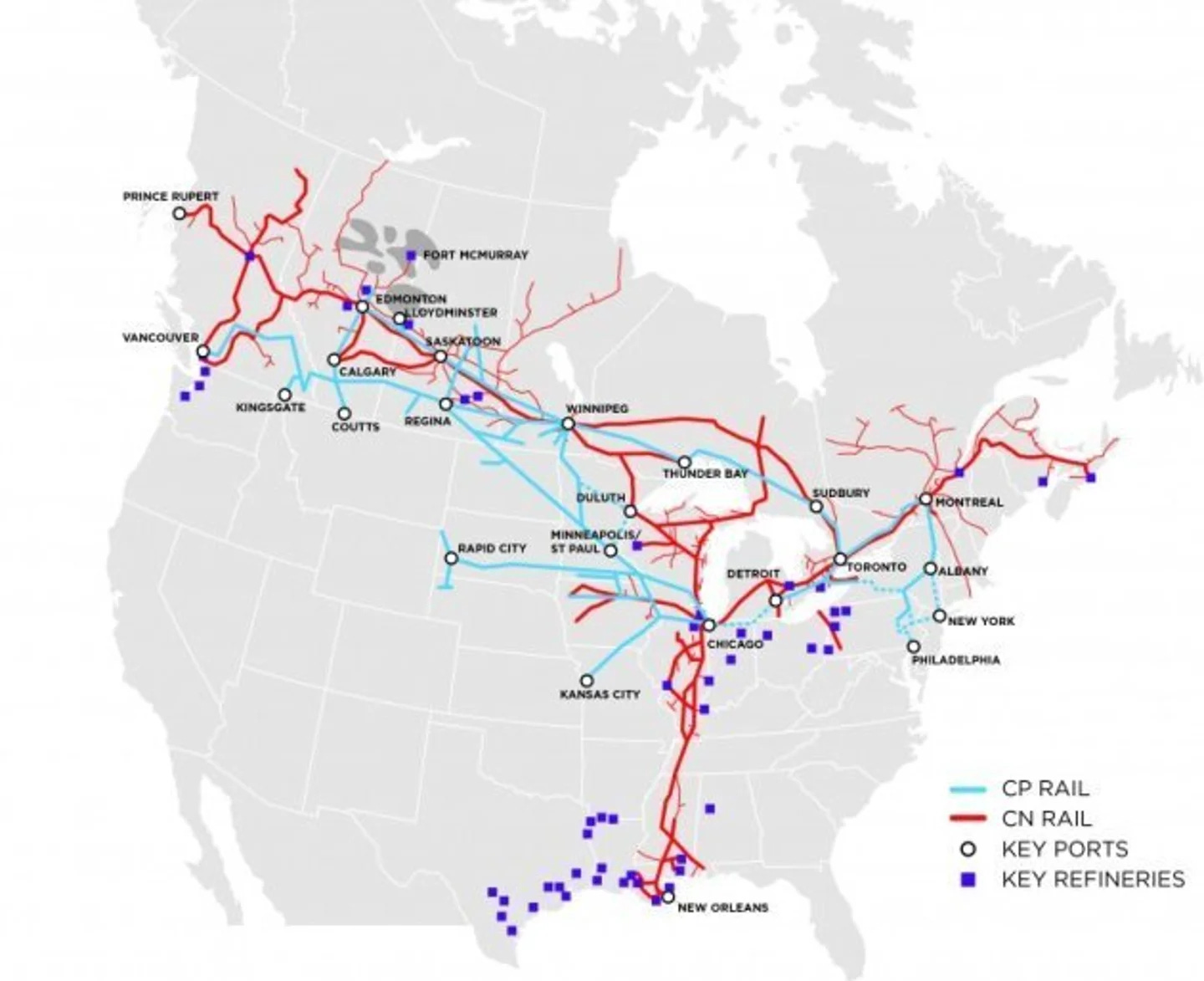

Fallback: Rail Dependence

If the Pipeline/Aggregator door is slammed shut, CHOPS tries to run for the Fire Exit: Rail.

The “Railbit” Trap: To rail CHOPS oil, you need to find a terminal, lease cars, and find a buyer in Texas.

Rail adds $15-$20 per bbl.

If Orinoco Heavy is selling in Texas for a lower price due to transport cost advantage, the price in Texas is too low to cover the rail ticket. The “Netback” becomes negative.

They are insolvent instantly.

Final Receipt at PADD3 Refinery

Pipeline: Arrives at terminal, flows into storage.

Rail: Train pulls into a shed. Operators hook up Live Steam Hoses to the rail car coils. The steam melts the Railbit (which turned to jelly during the trip) so it can flow out the bottom valve.

Refining

1. Diluent Recovery Unit (DRU): The refiner boils off the expensive Condensate immediately. They either sell it back to Canada (Pipeline reversal) or use it as gas/petrochemical feed.

2. The Main Event: The raw Heavy Bitumen goes to the Coker/Asphalt unit.

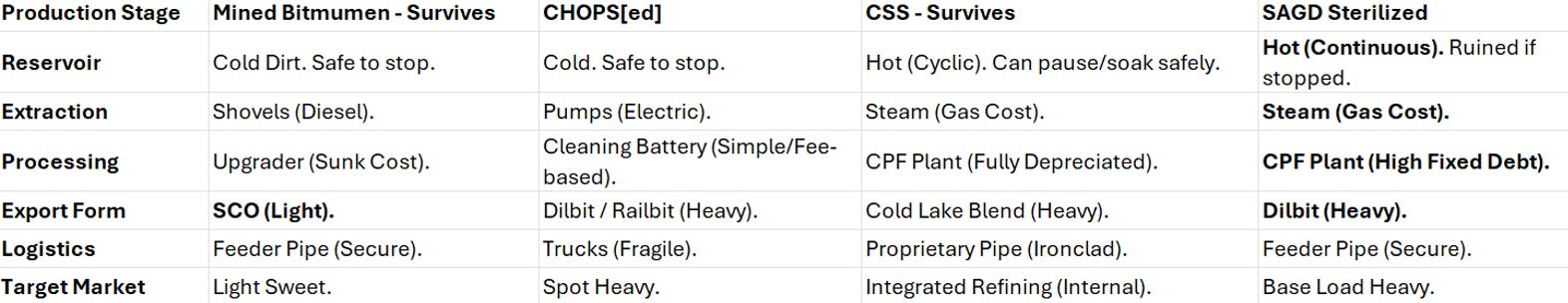

Weakest Link Status

Look at the friction points compared to a Suncor Mine:

1. Mines have endless storage; CHOPS has a 400-1000 bbl site tank that fills within days.

2. Suncor uses a pipe; CHOPS relies on a human driver who charges hourly.

3. CHOPS pays a fee to clean the sand; Mines own the upgrader.

4. CHOPS sells to an Aggregator who has no loyalty; Suncor sells to itself.

These 4 failure modes explain why historically CHOPS operations die first in a price squeeze.

Shutdown Profile: High Flexibility. These are pump jacks or screw pumps on cold rock. You can turn them off and on with minimal geological damage.

---

Cyclic Steam Stimulation – CSS

Unlike the “Conveyor Belt” of Mining or the “Open Artery” of SAGD, CSS operates on a Breath-In / Breath-Out cycle.

Because this method is dominated by Imperial Oil (Cold Lake) and CNRL (Primrose), it operates differently financially. It produces a generic “Dilbit” product (vulnerable), but it sits inside a “Fortress” balance sheet (secure).

---

The Reservoir Huff and Puff

Clusters of vertical or deviated wells (Spider-web pattern). Unlike SAGD (which needs two wells), CSS uses One Well for both injection and production.

High-pressure steam is blasted into the well for weeks.

The pressure is so high it physically cracks (heaves) the formation, forcing steam into the rock fractures.

Steam is shut off at this point. The well sits idle for days/weeks to let the heat transfer into the bitumen.

The well is then opened. The emulsion flows back up the same pipe driven by the internal pressure looking to escape from the reservoir.

The Orinoco Advantage: In a price crash, you can just Extend the Soak. You simply don’t start the next Injection Cycle. You stop burning Natural Gas (Cost) immediately, but you don’t ruin the well. It just sits there, warm and waiting; with limits of course. Steam injections at intervals are required to keep the reservoir in a productive state.

CSS Central Processing Facility

Fluids move to a massive central plant (similar to a SAGD CPF).

Because thousands of wells are on different cycles (some steaming, some producing), the plant runs at a steady rate.

Imperial Cold Lake started in 1985. The multi-billion dollar plant is Paid Off. There is almost zero “Capital Service Cost” attached to these barrels. Even at $25 oil, they are likely cash flow positive because they aren’t paying a mortgage.

Blending Weakness

This is the only link where CSS shares the vulnerability of SAGD and Orinoco.

Cold Lake bitumen is extremely thick (~9-10° API).

It must be blended ~30/70 with Condensate to create “Cold Lake Blend” (CLB).

Just like SAGD, if Condensate prices are high and WCS prices are low, the margin is squeezed. Imperial fights this by sourcing its own diluent internally or using committed supply.

Private Transport Highway

Imperial Oil owns the Cold Lake Pipeline System.

The line does not just dump into the Hardisty Hub “General Pool.”

It directs flow specifically to Edmonton (Strathcona Refinery) and the Interprovincial Pipeline (Mainline) toward Sarnia.

Because they own the feeder pipe and are the largest shipper on it, they are rarely bullied out of space.

Market / Integration - The Buyer Guarantee

This is why CSS survives the Orinoco Crash while SAGD dies.

• Internal Demand:

  • Imperial’s Strathcona Refinery (Edmonton) is designed to run on Cold Lake feedstock.

  • Imperial’s Sarnia Refinery (Ontario) is designed to run on Cold Lake feedstock.

  • ExxonMobil’s Joliet Refinery (Illinois) loves this stuff.

• The Closed Loop:

  • A significant percentage of CSS production never hits the open market. It is an intra-company transfer from the Upstream division (Imperial Oil Resources) to the Downstream division (Imperial Oil Products).

  • Orinoco Irrelevance: Even if Venezuelan Merey 16 is $10 cheaper, Suncor or Imperial won’t fire their own Upstream division to buy it.

CSS Summary

CSS is a non-participant in the carnage.

1. Operationally: They can trim costs by pausing steam cycles without breaking the reservoir, for a time…

2. Financially: The plant is paid off, so break-even is low.

3. Strategically: Exxon buys the barrel from itself. They own 70% of Imperial Oil.

CSS can pause production at a much more attractive dollar cost than SAGD. But it is not infinite. Several quarters worth of stall is possible. But under a sustained demand drought with 700 000 bpd shut in Canada, we are talking about a several year rebalancing arc. Costs explode and the operator has to decide when/if it makes economic sense to restart dead CSS sites.

As a quick note, for reasons of geology and engineering, CSS applicable geological formations cannot utilize SAGD technology. That is a discussion worth another 2000 words. We will continue to examine the potential present day consequences of Orinoco Displacement. This is not a future development roadmap for the Canadian oil industry.

---

Steam Assisted Gravity Drainage - SAGD

SAGD occupies the dangerous Middle Ground. It has the high fixed costs of a Mine (massive plants, pipes) but the vulnerable product quality of CHOPS (Heavy Dilbit).

Because of this hybrid structure, it suffers from the worst of both worlds in an Orinoco scenario: It is expensive to run (like a Mine) but sells a discount product (like CHOPS).

And of course, it is directly competing against a near identical oil that has vastly lower transport costs to PADD3.

This will be a comprehensive look at the SAGD production loop encompassing the Geology, Engineering, and Finance angles. This detail is necessary since this sector will be hardest hit and most economically impactful.

The Victim of Circumstance

SAGD wants to keep running to save the reservoir.

The Mines won’t cut, so the pipe is jammed.

SAGD has high variable costs buying Natgas and diluent. If the spot price of WCS is low (because pipes are full) and variable costs are expensive, they are bleeding cash.

The CFO overrides the Engineer. “We cannot afford to sell oil for $10. Switch to NCG Turndown.”

Historical Proof: In 2020, Cenovus and ConocoPhillips throttled back SAGD. In 2015-2016, Tier 3 assets (Connacher, Southern Pacific) went insolvent and shut down.

---

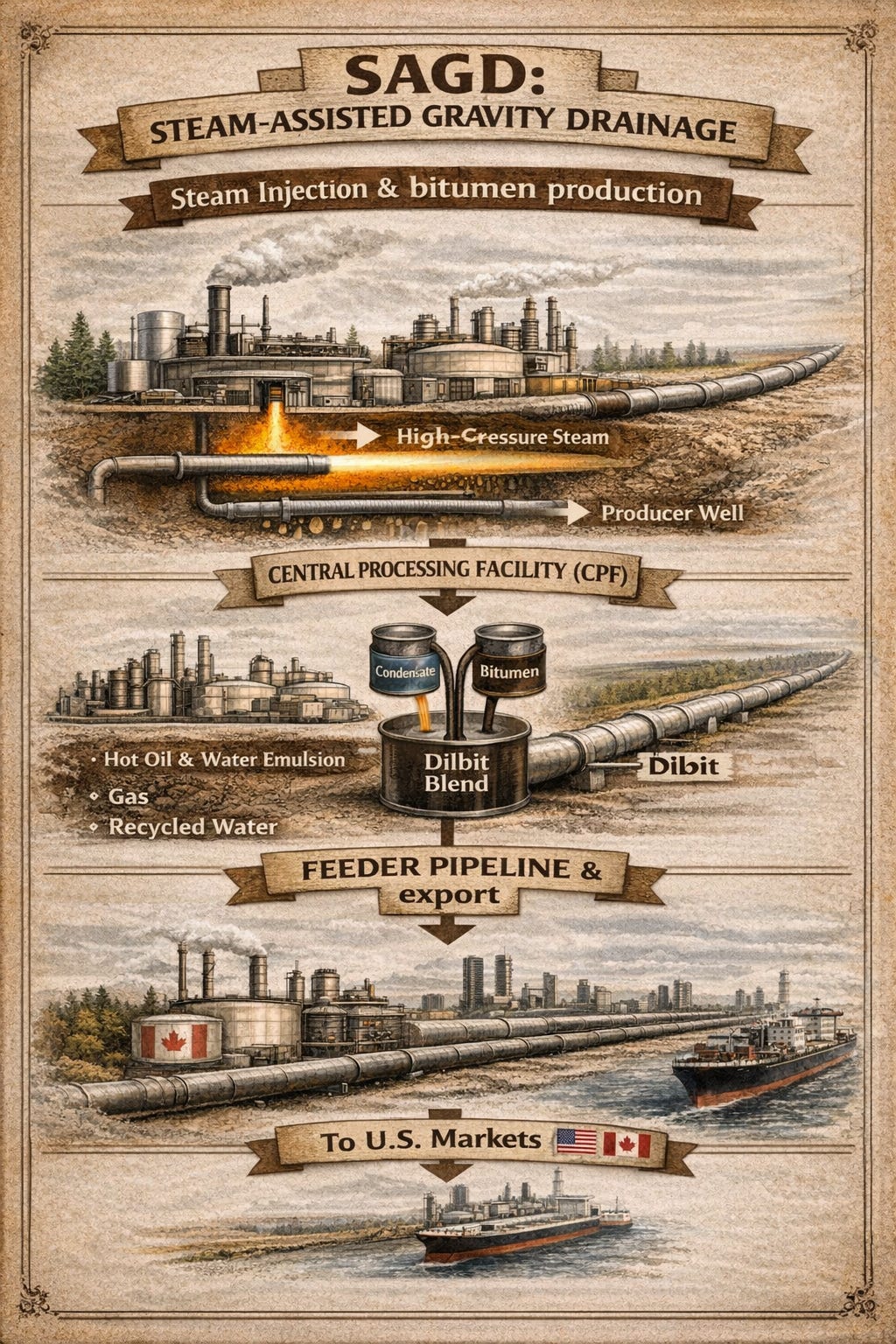

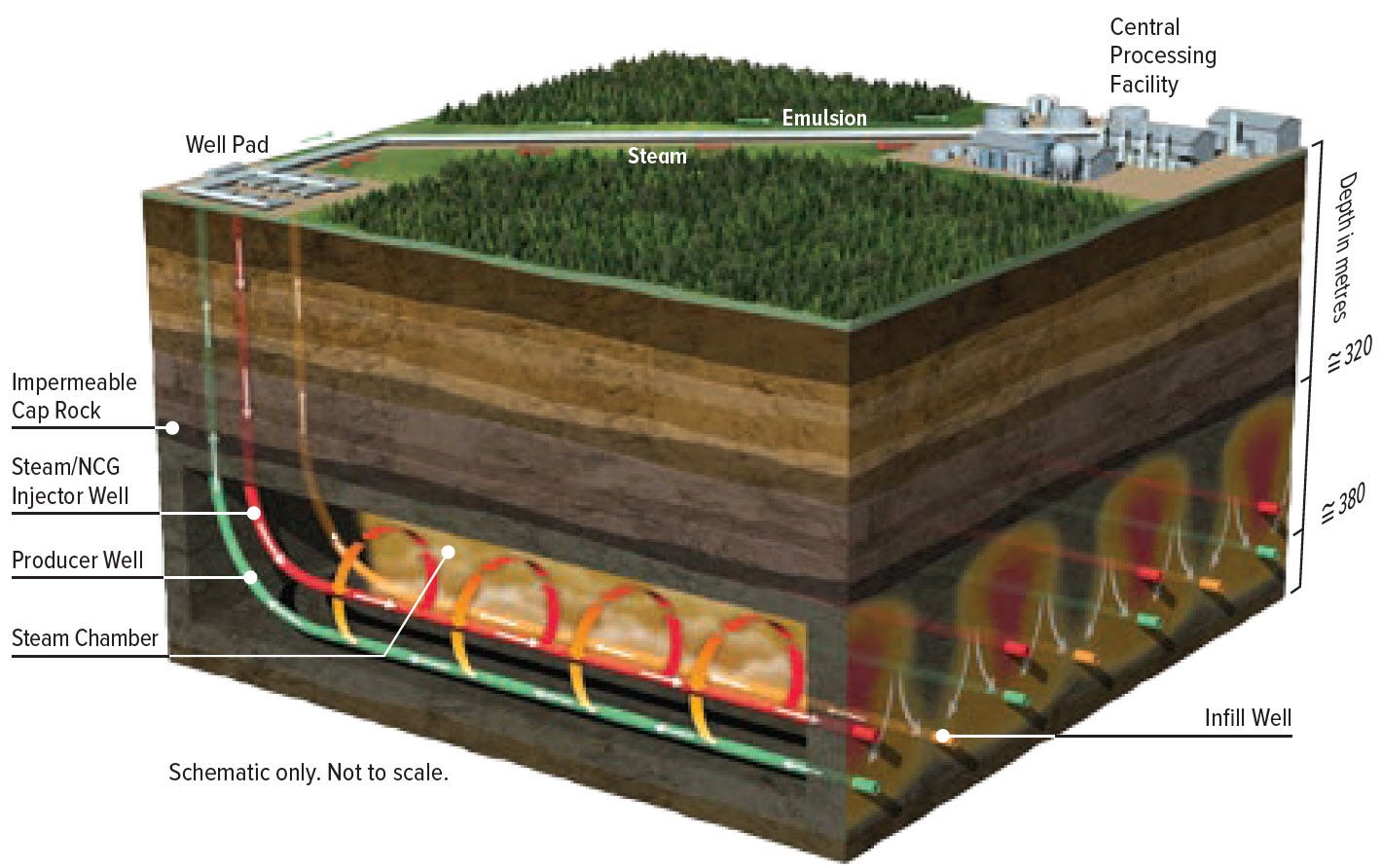

SAGD PRODUCTION LOOP

Source: MEG and DOI:10.1306/13371603St643550

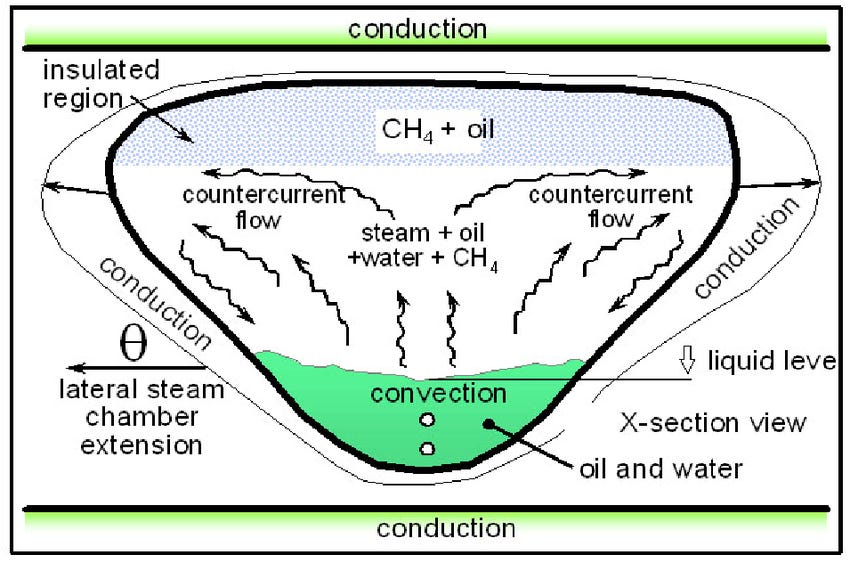

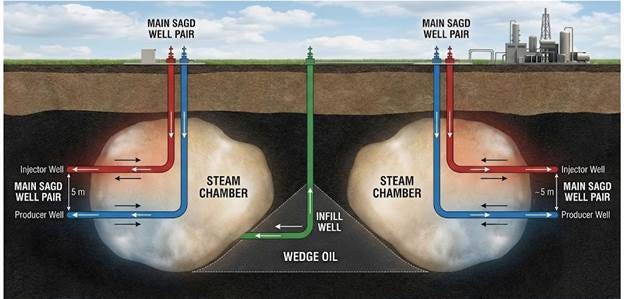

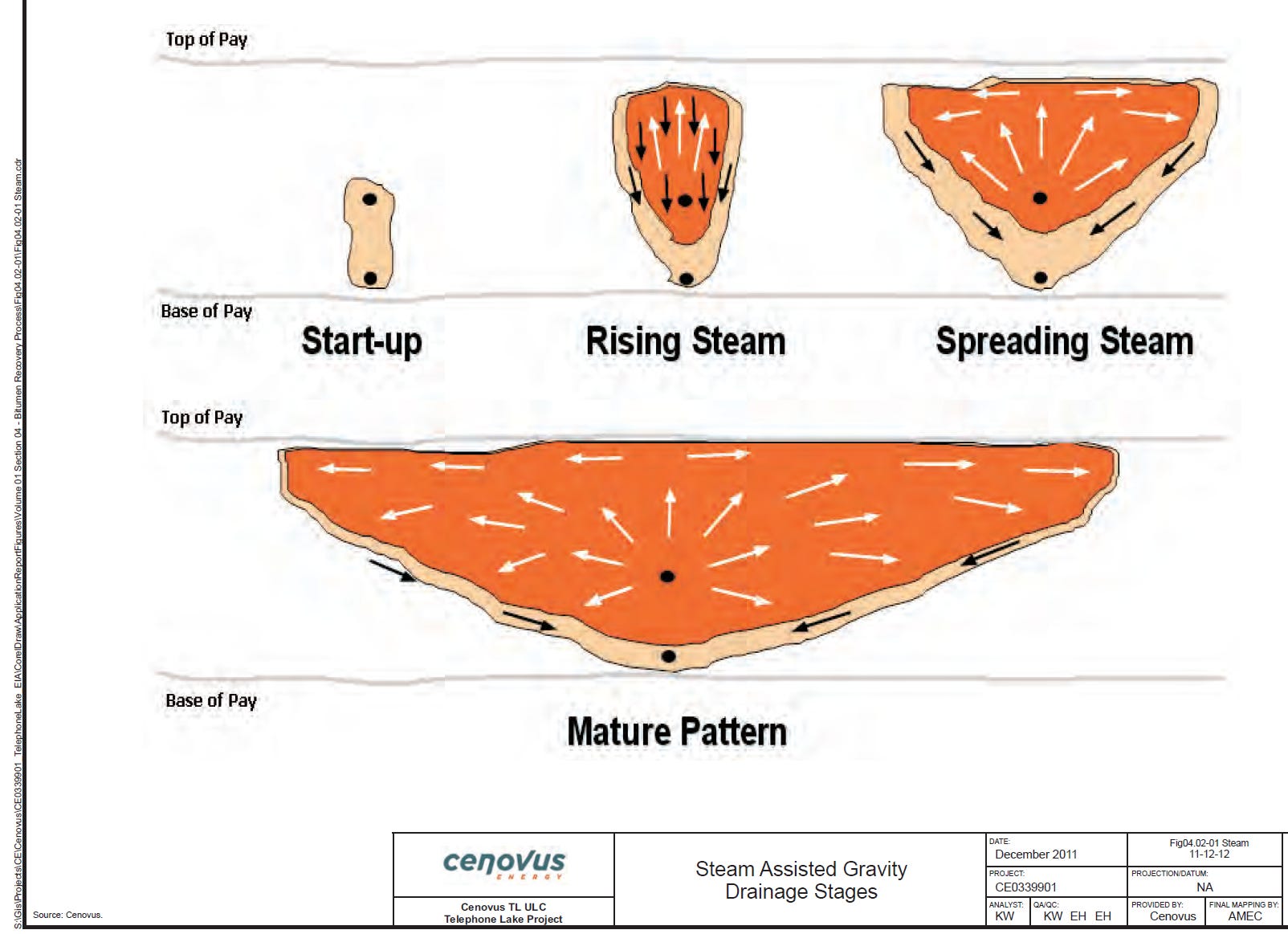

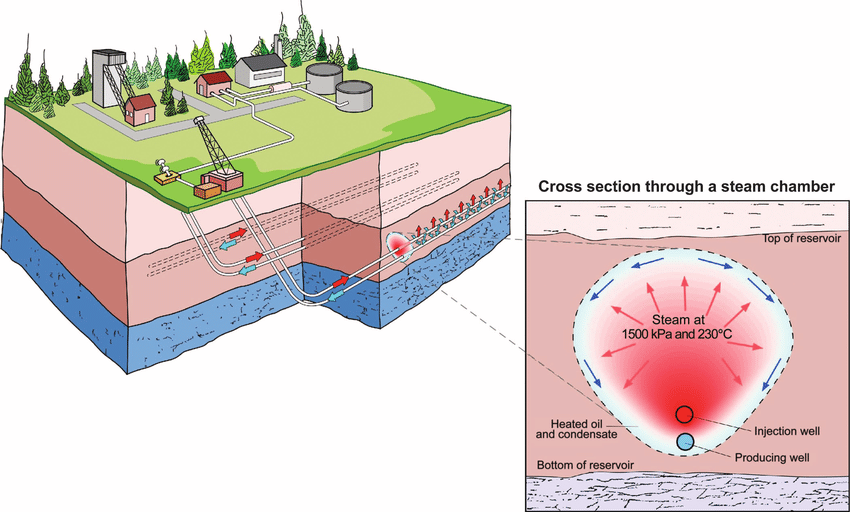

The Reservoir Steam Chamber

Two horizontal wells are drilled parallel, one 5 meters above the other.

• Top Well: Injector (Pumps high-pressure steam).

  • The steam heats the bitumen rock to ~200°C.

  • The bitumen melts and drips down via gravity to the producer well.

• Bottom Well: Producer (Sucks up the melt-water/oil mix).

Thermodynamic Momentum: You cannot stop. If you cut the steam, the “Steam Chamber” cools/collapses. Water flows in. Restarting it requires pressurizing the entire rock formation again (millions of dollars). There are myriad reasons of chemistry and geology that make this process near impossible even with millions of dollars available for funding. To be detailed later in this dispatch.

Cost Driver: Natural Gas. You burn massive amounts of gas to make steam. This is the #1 Variable Cost.

CPF - Central Processing Facility

The hot emulsion (Oil + Water + Gas) flows via insulated pipelines from the steam pad to a massive “Factory in the Forest” called the CPF.

This CPF the performs separation processing.

• Gas: Separated and used for fuel.

• Water: Roughly 90-95% is recycled, treated, turned back into steam, and re-injected.

• Bitumen: De-watered until it is “Dry Spec.”

At the outlet of the CPF, you have pure, hot Bitumen. It acts like cooling asphalt. You cannot put this in a normal pipeline; it will turn into a solid plug within miles.

Blended Diluent Vulnerability

This is where SAGD becomes functionally identical to Orinoco heavy, and chemically distinct from Mined SCO.

The operator buys Condensate (Diluent) typically from the Montney or US imports. 30% Condensate at $60/bbl is mixed with bitumen at 70% with a cost of Orinoco Displacement at WCS $30/bbl. Some basic math shows per transported barrel, the 30% diluent costs almost the same as the 70% of bitumen.

For 1 barrel of transported Dilbit under Orinoco Displacement

• 0.3 x 60 = $18 diluent

• 0.7 x 30 = $21 bitumen

The operator is essentially running a “Mixing Business.” They buy expensive solvent, mix it with cheap tar, and sell the blend.

If the price of the “Blend” (Dilbit-Diluted Bitumen) drops because of Venezuelan competition, but the price of the “Solvent” (Condensate) stays high... the profit margin begins to erode to zero profit depending on the spread.

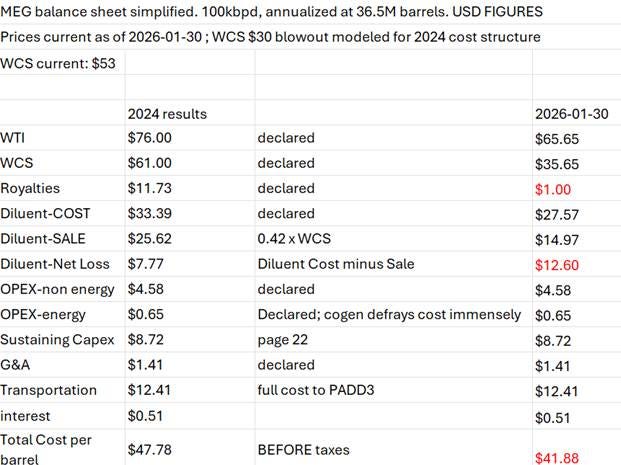

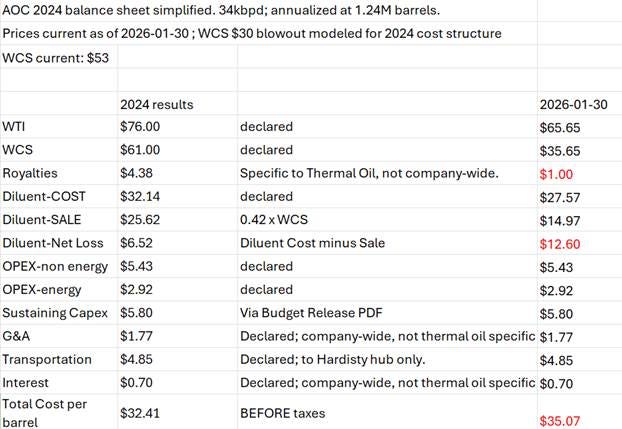

DILUENT NETBACK

Critically, the operation DOES NOT eat the cost of the diluent. This is passed through to the customer end user. The end user pays for the cost of the barrel with the bitumen and diluent blend. They can either boil off the diluent via the DRU and send it back onto the market for price recovery or refine the dilbit blend into usable product grades.

The industry standard for accounting is simple. The actual process to realize the net cost of diluent is market spread based. If you buy high, and then sell low to end user, there is obviously a loss.

When a pipeline like Enbridge takes custody of the liquid, they do not verify “this molecule is expensive condensate” and “that molecule is cheap bitumen.”

They measure Total Fluid Volume.

The industry sells the product as a generic slurry called Dilbit (Diluted Bitumen).

The market sets a single price for this Dilbit slurry: The WCS Price.

Therefore, when the check arrives at the producer’s bank, the buyer is paying The WCS Price for every single barrel of liquid, regardless of what that liquid used to be. And the diluent was the far more valuable payload being discounted via total fluid volume.

Diluent is priced near parity with WTI usually; currently at $60 USD.

If the measurement is 1 barrel of shipped DILBIT, then loss is as follows:

WCS crashes but diluent cost remains the same. Your cost per barrel now doubles. Remember you can’t transport bitumen without diluent either via pipeline or rail. WCS moves independently of WTI since they are fundamentally different types of oil.

Finally, corporate reporting DOES NOT use 1 shipped DILBIT barrel. They use 1 barrel of BITUMEN, which completely changes the diluent cost.

You need to have 30% fraction of total shipped. So if you are shipping 1 barrel of bitumen, you need 0.42 barrels of diluent.

• 0.42 / 1.42 = 0.3 diluent fraction

• 0.42 x $60 diluent fraction cost = $25.20 diluent per shipped 1 barrel bitumen

WCS $47 bitumen barrel

• 1.42 shipped volume x $47 WCS = $66.74 total value shipped

REMEMBER: The pipeline does not verify 1.0 volume fraction is bitumen and 0.42 volume fraction is the more expensive diluent.

Once in the pipe, all DILBIT assumes the price profile of WCS.

If the volume fractions were verified, the true cost of the 1.42 shipped bitumen would be

• $47 WCS + $25.20 diluent = $72.20

• $72.20 true cost - $66.74 WCS at 1.42 barrels = $5.46 LOSS

Therefore, the simple way to calculate this is 0.42 x WCS to determine the loss.

• 0.42 x $47 = $19.74 realized recovery price on diluent portion

• $25.20 [ diluent cost ] - $19.74 [ realized recovery price on diluent ] = $5.46 LOSS per shipped bitumen barrel

Feeder Transport Pipeline Highway

Unlike CHOPS, SAGD CPF plants are connected to massive “Feeder Pipelines” (e.g., Access Pipeline, Cold Lake Pipeline).

Dilbit leaves the plant and flows directly to Hardisty/Edmonton.

Friction: Low. This part of the chain is robust.

Export Apportionment War

At Hardisty, the Dilbit fights for space on the export lines (Enbridge Mainline, TMX, Keystone).

Because SAGD is 30% Diluent, the operator effectively has to book 1.42 barrels of space to move 1.0 barrel of oil. This makes them “Pipe Inefficient” compared to Mines (who ship 1.0 to 1.0).

Eg, you produced 100 000 barrels ready to ship. Add in another 42% of diluent, now you have to tell the pipeline you need space for 142 000 barrels. But corporate reporting is always shipped bitumen.

42 000 / 142 000 = 0.3 total fraction or simplify by thinking of 1 barrel of delivered product at 0.7 and 0.3; in which case your fractions become 70 000 bitumen and 30 000 diluent.

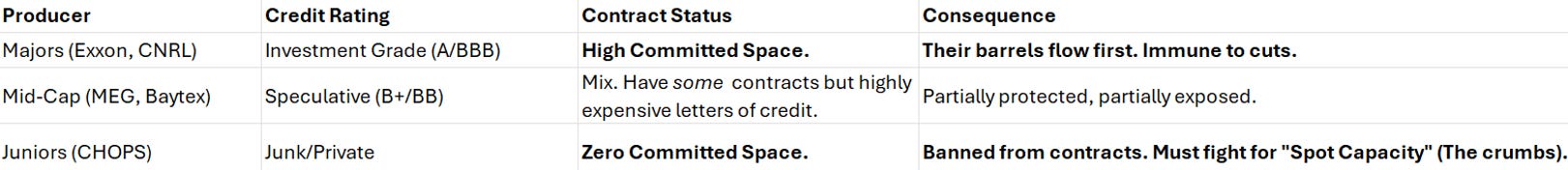

Tier 1 vs. Tier 3 Exposure:

• The Majors (Cenovus): Have committed space (Take-or-Pay contracts). Their Dilbit moves.

• The Mid-Caps (MEG/Juniors): Often rely on “Spot” space or Rail.

• The Rail Trap: If Spot space is cut, they divert to Rail terminals. Rail economics are the first to die in a heavy oil glut.

The Buyer

The Dilbit arrives at PADD3 (Texas) via pipeline or rail.

The Refiner (e.g., LyondellBasell) looks at the input feed.

• Option A: Canadian Dilbit (70% Tar / 30% Condensate).

• Option B: Venezuelan Merey 16 (70% Tar / 30% Naphtha/Condensate).

The refinery runs it through a Diluent Recovery Unit (DRU) to boil off the expensive condensate/naphtha.

The remaining sludge goes to the Coker.

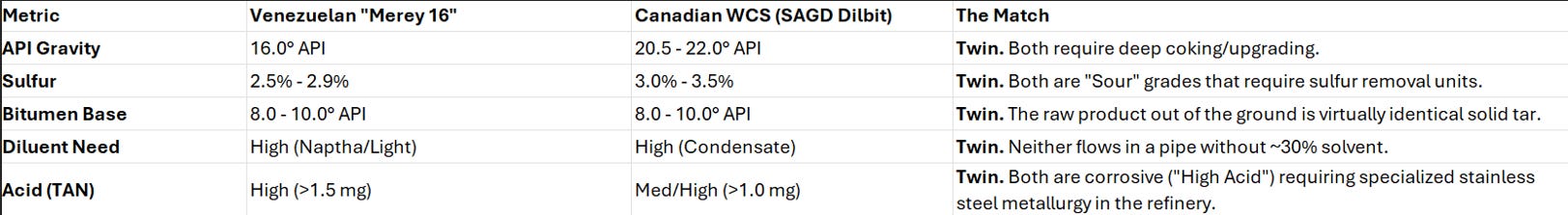

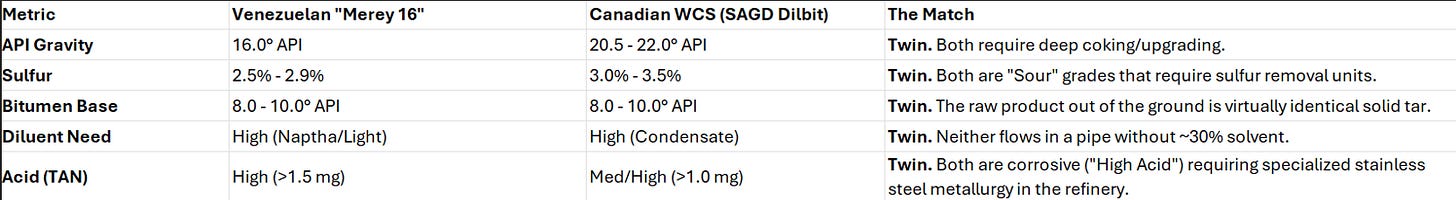

Composition: Twin Barrels

They are functionally mirror images for the heavy-sour refinery diet.

If you are a refinery in Galveston, Texas (like Valero or LyondellBasell), Merey 16 and WCS are interchangeable feedstocks. You can switch valves from Canadian to Venezuelan without shutting down the plant.

Displacement: Since the chemistry is identical, the decision is pure price. Venezuela has a lower cost transport chain via water transport efficiency worth approximately an additional profit $7-$10 per bbl against pipelined WCS.

Venezuela wins the bid.

---

Tiered Risks within the SAGD Sector

In a “Tank Top” / WCS Differential Blowout scenario, the market becomes purely Darwinian.

Every operator (Major or Junior) gets the exact same terrible price for a barrel of Dilbit at Hardisty (e.g., $30.00).

BUT: Every operator has a drastically different bill to pay to create that barrel.

We will go over why Tier 3 goes insolvent FIRST while Tier 1 stays cash flow positive (but still hurts), centered on the SOR.

Steam-Oil Ratio SOR

The primary driver of the cost difference is Thermodynamics.

SOR: How many barrels of steam (Water turned to Gas) do you need to melt 1 barrel of oil?

The Bill: Since Natural Gas is the fuel, a higher SOR means you are effectively buying more energy to sell less product.

Tier 1 The Unicorns

• Cenovus (Foster Creek), CNRL (Jackfish)

• SOR: 2.0 - 2.2

Tier 2 The Design Standard

• MEG Energy, Suncor (MacKay), CNRL (Satellites)

• SOR: 2.5 - 3.2

Tier 3 The Dogs

• Greenfire, Athabasca Oil, Hangingstone

• SOR: 3.8 - 5.0+

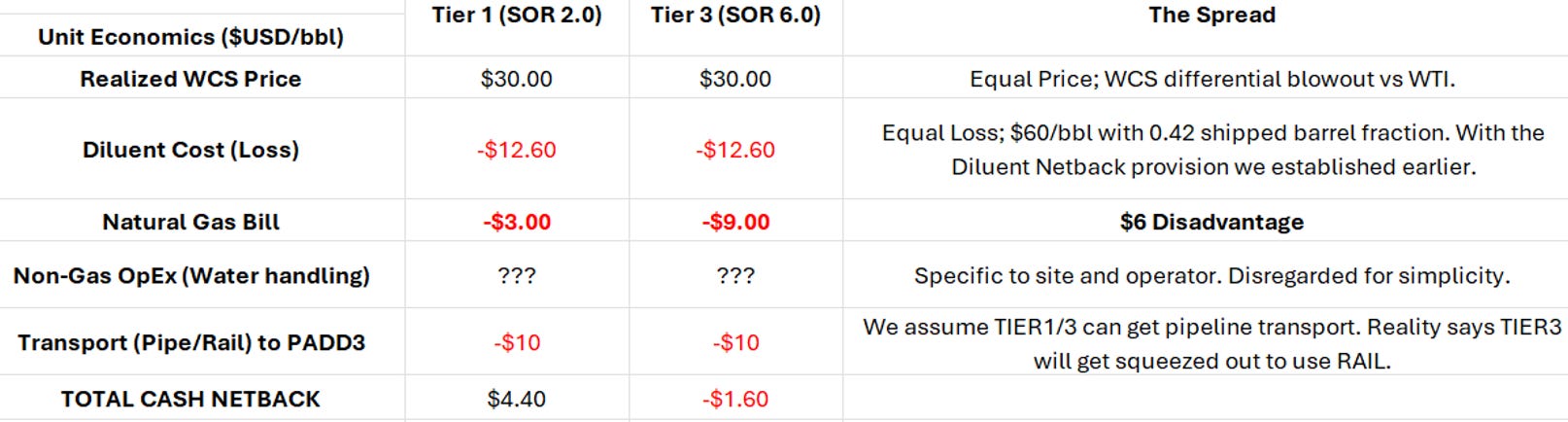

Why Tier 3 is Massively More Expensive

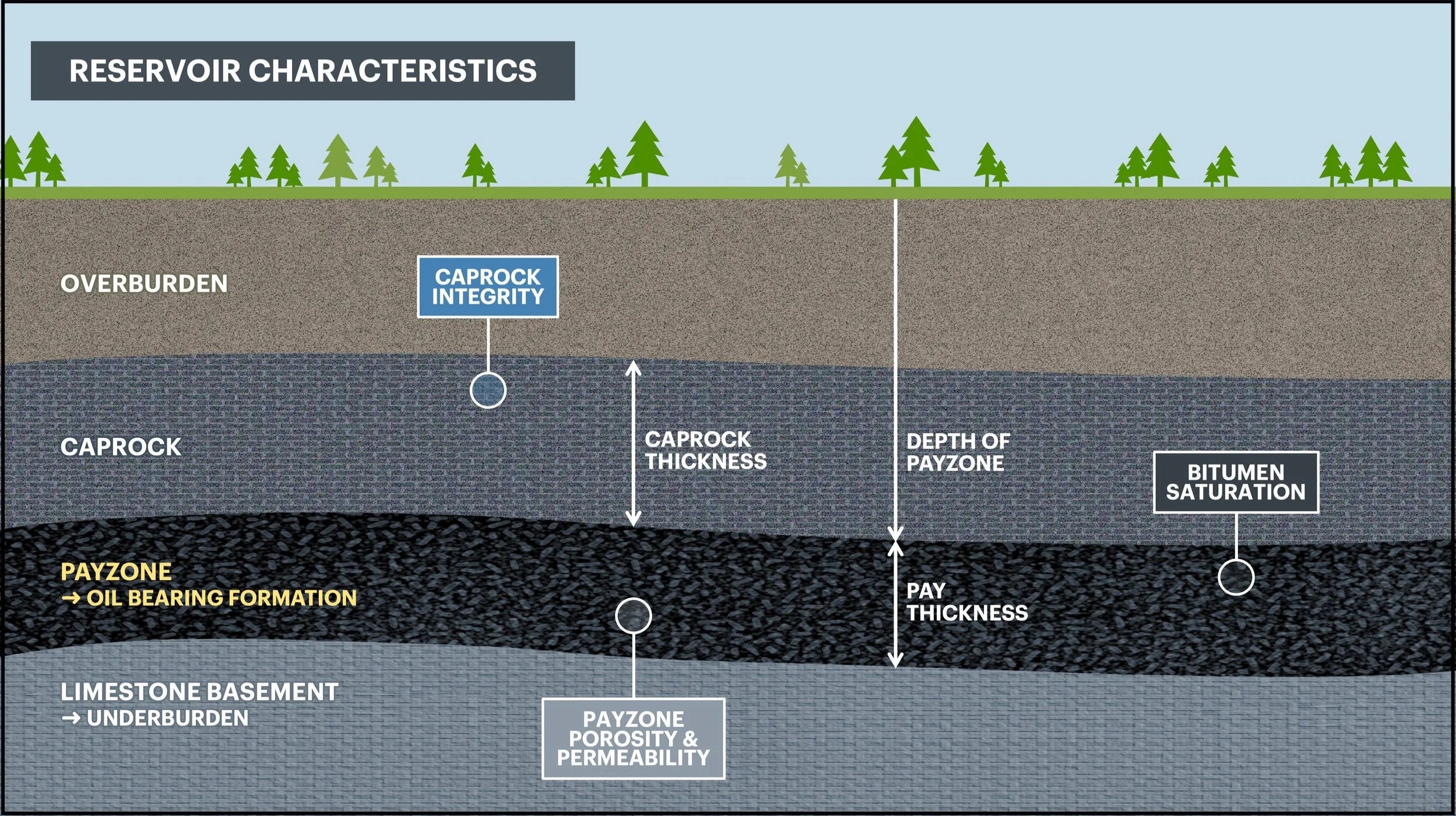

The Geological Penalty (SOR & Gas)

Tier 1: Uses thick, clean sand. The steam rises easily. They burn minimal gas.

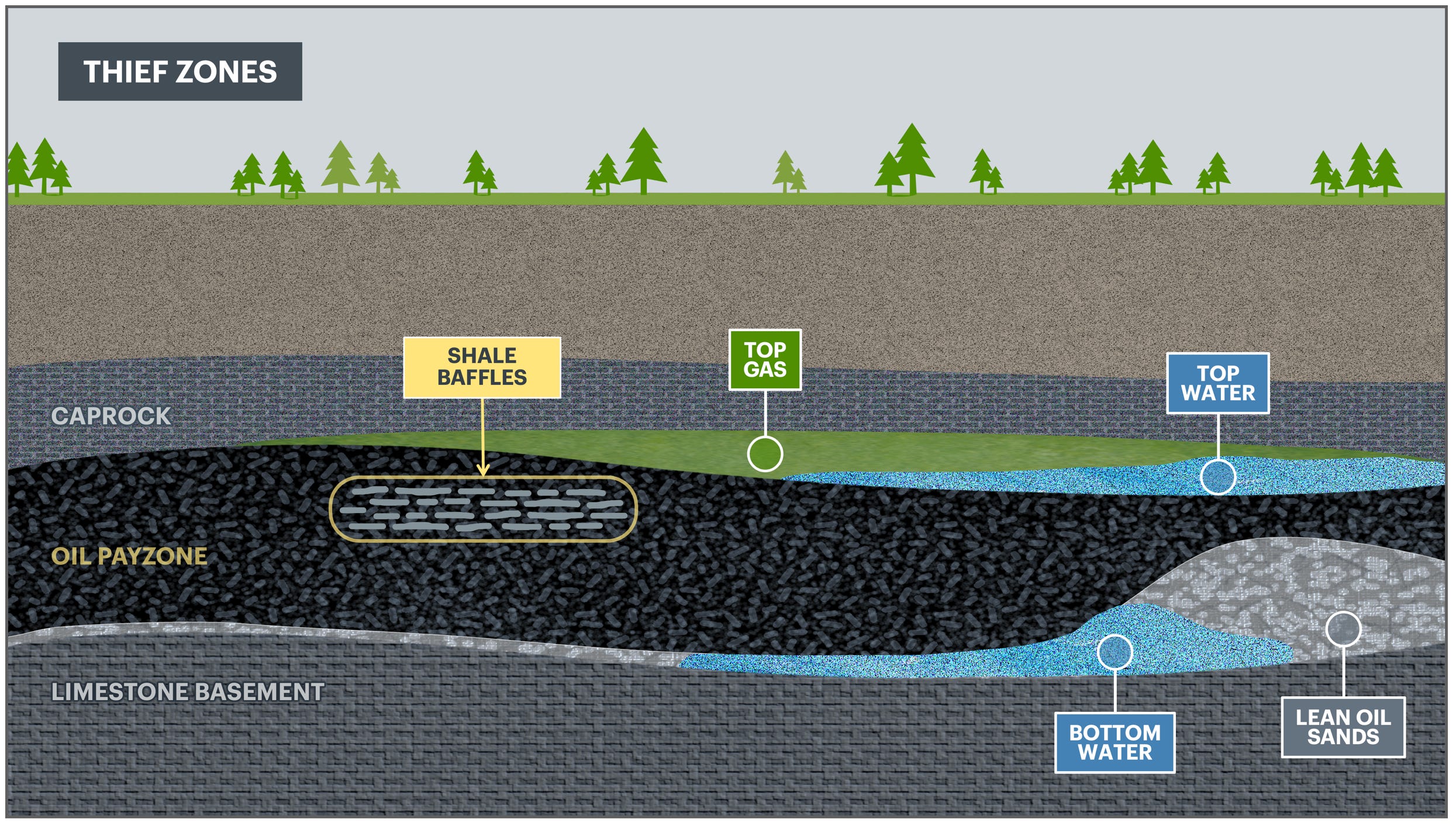

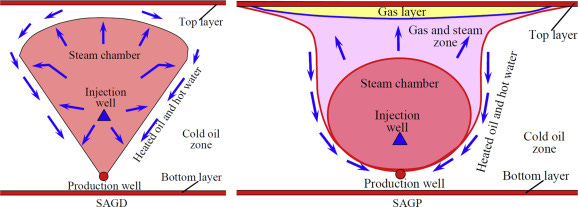

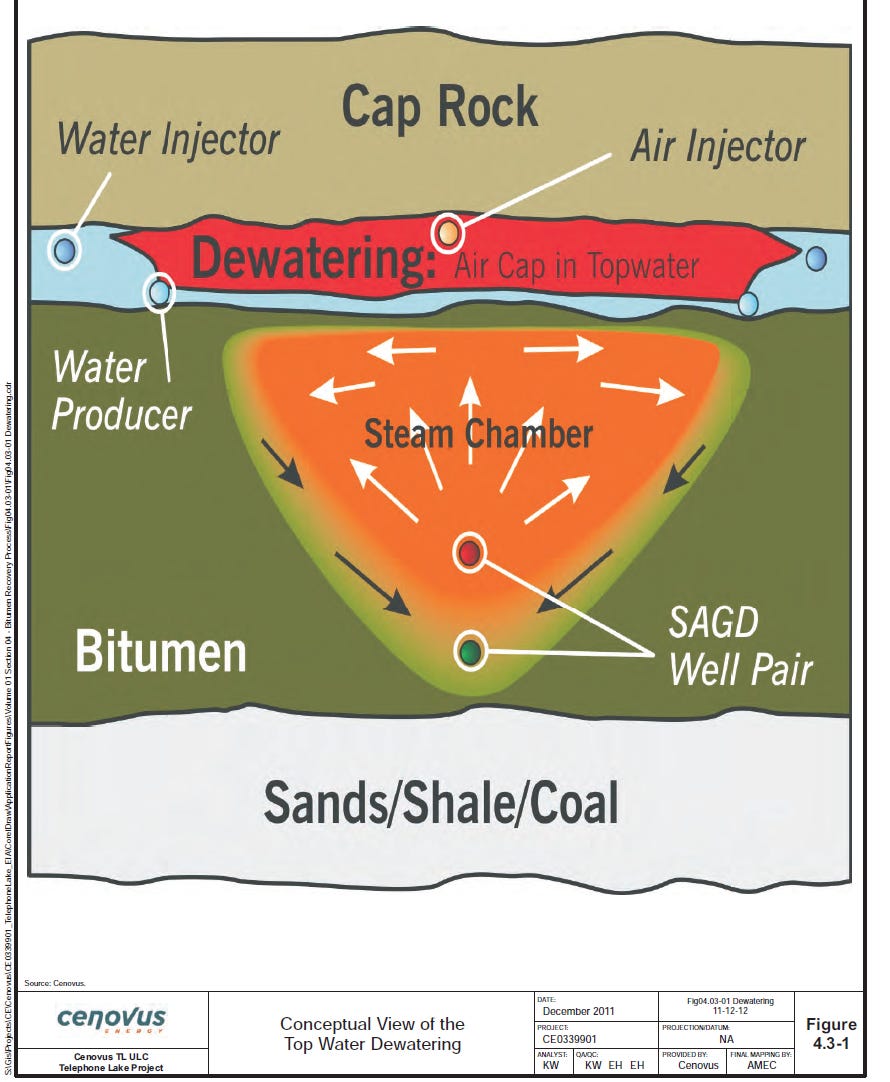

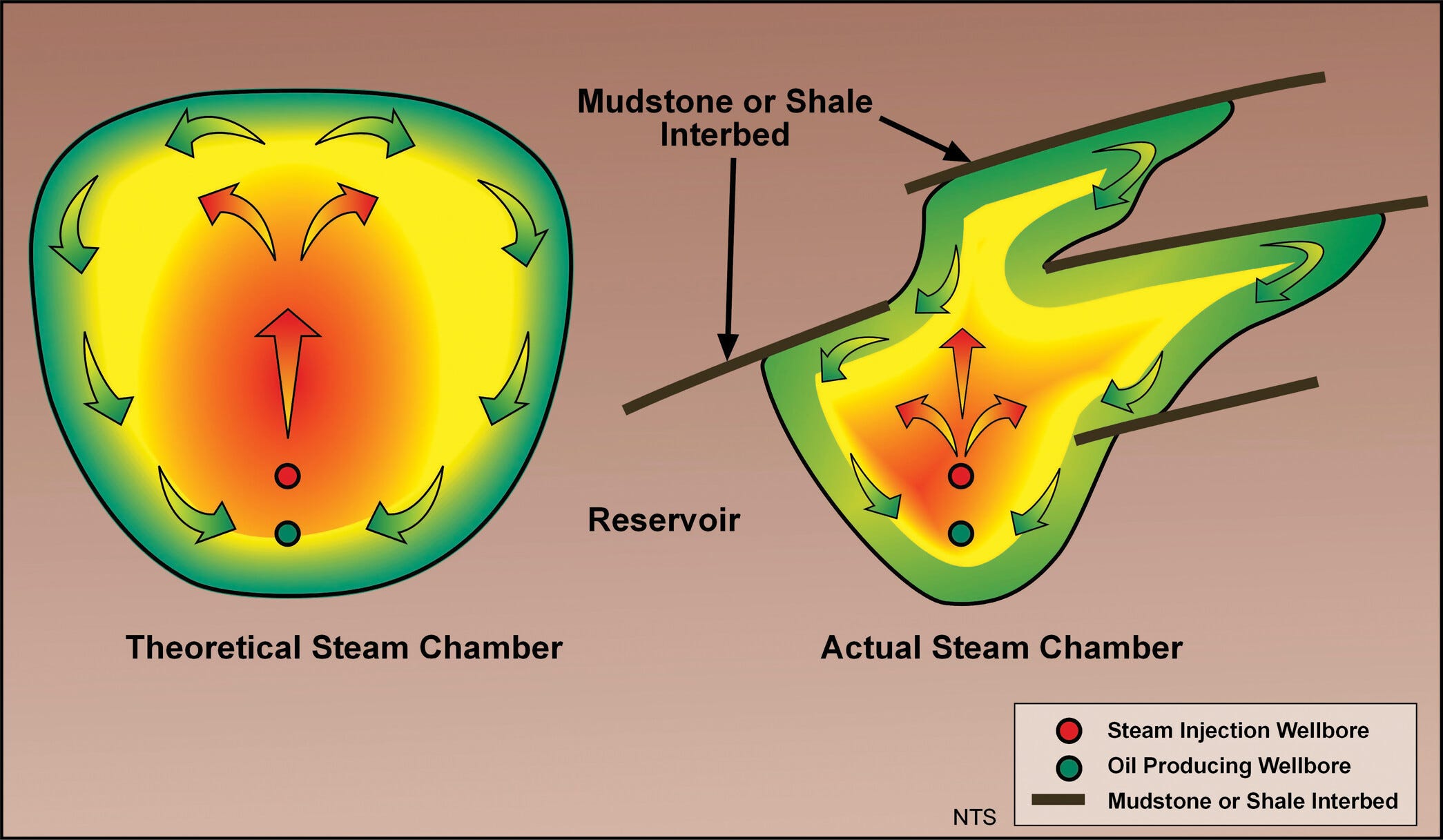

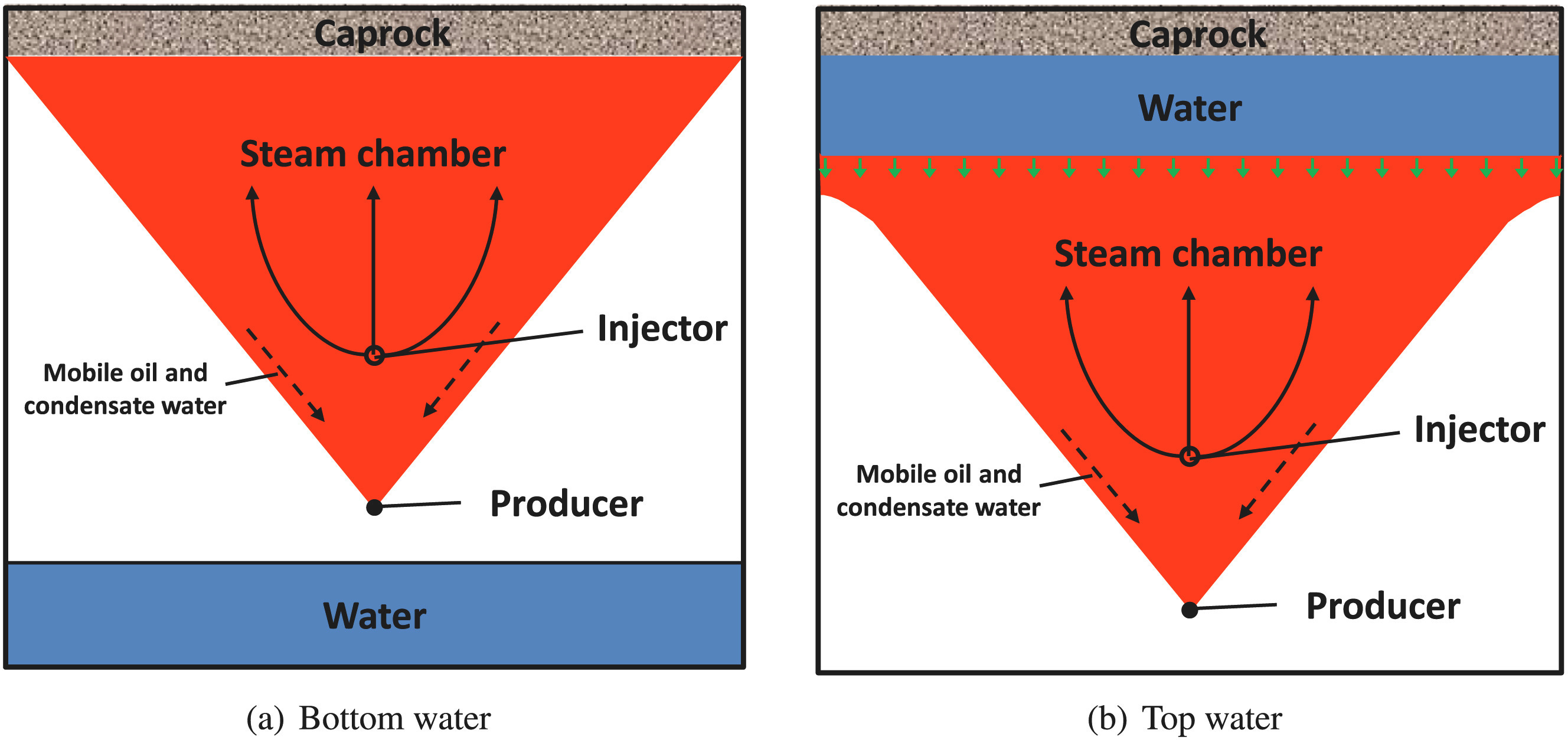

Tier 3: The reservoir is thin or has “Top Gas / Bottom Water” thieves.

• If there is water at the bottom, the steam hits it and vanishes. You are heating the infinite ocean underneath the oil.

• They burn more Natural Gas just to get the same barrel to flow. Even with cheap gas, the volume kills them.

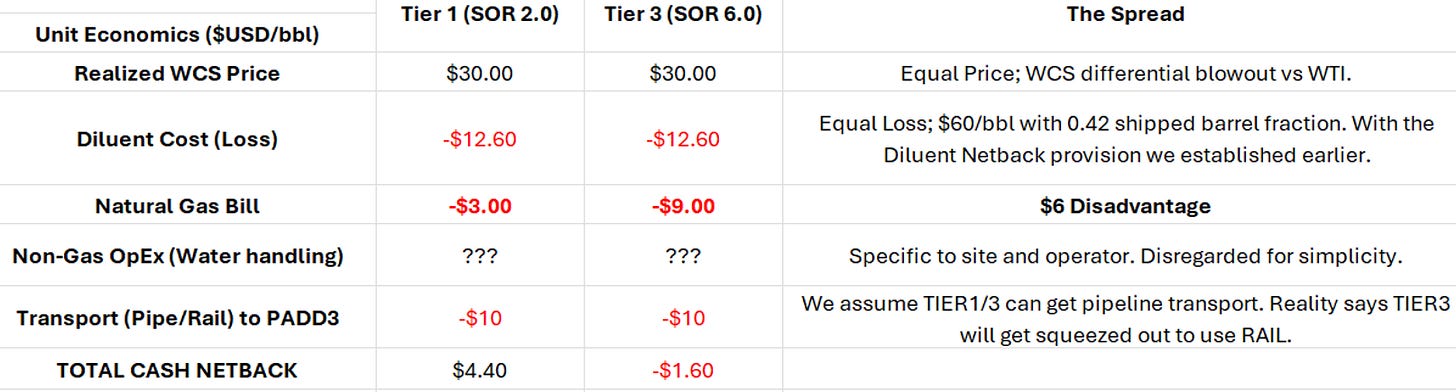

High SOR isn’t just an “efficiency issue”; it is a Solvency Multiplier.

To verify the vulnerability, we need to convert Steam-Oil Ratio (SOR) into Dollars per Barrel.

Gas Cost Formula is used by industry analysts to mark assets for write-down.

How much energy is in Steam?

Note: We are using Alberta specific units for natgas prices. But the conversion rate to US NYMEX natgas futures is essentially equivalent; 1.055GJ_AB = 1.0 MMBTU_US. Furthermore, US NYMEX prices do not include Canadian carbon tax plus transmission costs. Current US NYMEX natgas is $3.10/MMBTU.

First, we must establish the energy cost to boil one barrel of water at a standard SAGD facility (Once-Through Steam Generator / OTSG).

It takes roughly 380,000 to 400,000 BTUs (British Thermal Units) to raise 1 barrel of cold groundwater to high-pressure steam (80% quality at ~8-10 MPa). Approximately 950,000 BTU = 1GJ.

SAGD boilers are ~80–85% efficient. You burn more gas than the physics strictly require.

Accounting for heat loss and inefficiency, the industry standard heuristic is:

• 1.0 Barrel of Steam CWE = ~0.5 Gigajoules (GJ) of Natural Gas input.

CWE-COLD WATER EQUIVALENT: One barrel of liquid water fully converted to steam.

The Formula

You can now build a linear formula to derive the specific gas cost per barrel of oil:

• Gas Cost/bbl = SOR x 0.5GJ/bbl x Gas Price at Plant gate

Note: “Plant Gate Price” = Commodity Cost + Transmission Fees + Carbon Tax.

The Sensitivity Stress Test (Tier 1 vs. Tier 3)

2026 Estimated Plant Gate Gas Price of $3.00 USD/GJ.
(Note: This assumes roughly $2.00 commodity price + $1.00 for transport and Canada’s rising Carbon Tax on emissions).

Tier 1 - Cenovus

• SOR: 2.0

• Calculation: 2 x 0.5GJ x $3

• Gas Cost: $3 / barrel

Tier 3 - Marginal SAGD Co

• SOR: 6.0

• Calculation: 6.0 x 0.5GJ x $3

• Gas Cost: $9 / barrel

Simply put: energy cost rises linearly with SOR.

• SOR6 / SOR2 = 3x

• $9 / $3 = 3x

The SOR and Diluent Marginality Netback

$6 difference doesn’t seem like much.

But when the WCS differential blows up because TANKS TOPS FULL, we are in big trouble.

Crucially, High SOR creates a “Double Penalty.”

1. Gas Penalty: You buy more gas (Linear).

2. Handling Penalty: You move 3x more water in this example. This drives up the Non-Gas OpEx (Electricity, Chemicals, Staff, Disposal) significantly.

• Diluent cost $60 x 0.42 = $25.20

• 0.42 x $30 WCS = $12.60 realize recovery price

• $25.20 - $12.60 = $12.60 net loss

Note on Non-Gas OpEx: Including full costs as noted above would crush the economics further. Simplified model controlling ONLY for SOR with a WCS tank tops scenario. Furthermore, this model does not include Sustaining CAPEX.

Marginal TIER3 SAGD operators with already high SOR will be crushed first.

https://www.dobenergy.com/data/markets/prices/ ; confirmation the current 2026-01-23 condensate diluent price is approx. $60USD/bbl.

The only way to get past this is vertical integration with refined products sale.

Your simplified profit matrix needs the parameter inputs below for a bare minimum profit/loss calculation:

1. WCS price

2. DILUENT price

3. SOR

4. NATGAS price

5. TRANSPORT price

At SOR 2.0, Energy is an expense. At SOR 6.0, Energy is the primary shareholder.

In an Orinoco displacement margins compress to ensure that high-SOR assets cross the line into gross-negative margins.

The rest of the SAGD will shortly follow.

Mathematically, they are not oil wells; they are inefficient natural gas disposal units.

The economics look almost reasonable. But this is only directly accounting for diluent, SOR/natgas, and transport. The full balance sheet analysis will follow and reveal loss even for the Tier 1 operator at SOR 2.

SAGD REQUIRED CAPEX TREADMILL

The Physical Reality of SAGD

Unlike a Mine (which is a 40-year hole), SAGD is a Disposable Battery system.

SAGD wells don’t last forever.

Tier 1: A well pair flows at 1,500 bpd for 5-10 years. You rarely need to drill new ones.

Tier 3: A well pair struggles to hit 400 bpd and depletes in 3 years.

• To keep the plant full, Tier 3 has to drill 3x to 4x as many wells per year as Tier 1.

• “Sustaining Capital” is mandatory. If they stop drilling, production collapses, unit costs skyrocket, and they breach bank covenants.

This is Sustaining CapEx. For Tier 3 geology (inefficient operations and high SOR), this cost is roughly $9.00 to $12.00 USD per barrel produced.

“To sell a barrel today, I must spend $10 today to build the barrel I will sell in 3 years.”

The Accounting Wall: The NI 51-101 Violations

Under Canadian securities law (and SEC rules), you cannot just claim you “will drill” the next pad. You have to prove you can afford it.

When Orinoco Heavy hits the market and WCS falls to $30.00, the Tier 3 operator is mathematically barred from drilling.

The Future Net Revenue Test

To book the reserves for the next pad (Proved Undeveloped - PUD), those underground barrels must yield a positive netback at Current Prices. In the Orinoco Displacement scenario, WCS blows out to $30 USD.

This simplified analysis only looks at SOR and diluent cost. No consideration for Sustaining Capex and OPEX.

• WCS Price: $30.00

• Diluent Loss: -$12.60 [ established from our Diluent Netback calculation ]

  • $60 diluent x 0.42 = $25.2

  • 0.42 x $30 WCS = $12.60

  • Net loss = $12.60

• SOR = 6.0

• STEAM COST = 6_SOR x 0.5GJ_energy_CWE x $3 natgas_plant_cost = -$9

• Pipeline Transport to Hardisty: -$10 [ from MEG to PADD3 transport as an example ]

• Interest on Plant Debt: IGNORED FOR SIMPLICITY - DEPENDS ON OPERATOR, INTEREST RATE %, AND TOTAL DEBT

• Operating Cash Flow: -$1.60 per barrel

Actual OPEX to deal with high SOR means the cost per barrel increases by $5 - $10.

Actual CAPEX to drill the new well pairs or new steam pads means the cost per barrel increases by $5 - $10.

This hypothetical company needs the WCS price to be at minimum $40 - $50 to be a sustainable operation with an extremely simplified cost structure.

Accounting Consequence

Because the Cash Flow is negative before you even account for drilling costs, the “Future Net Revenue” is negative.

The Reserves Auditor (GLJ/McDaniel) refuses to certify the PUD-PROVED UNDEVELOPED into commercial booked volumes. They are now Contingent.

Your company balance sheet used to claim those PUD reserves as book value when WCS was $50.

The Reserves Book value collapses.

Even if the Reserves Report was somehow positive, accounting rules require the company to demonstrate “Reasonable Certainty of Funding.”

Audit

• Cash on Hand: $5 Million.

• Operating Cash Flow: Negative.

• Bank Line: Frozen (due to dropping asset values).

The company cannot legally demonstrate how it will pay for the drilling since cashflow is already negative.

The Development Plan is deemed “Abandoned” for accounting purposes.

Existing reserves are placed into the Contingent category. And, borrowing for current and near term expenses are impossible with cashflow being negative.

The Solvency Death Spiral

Phase 1: The Halt Decision

The CFO sees he has no cash. He cancels the drilling of “Pad C.”

“We will save the Sustaining CapEx and just produce from existing Pad A & B to survive.”

Decline Rate takes over. Without new wells, total production mathematically drops in Year 2. The % decline dependent upon the actual geology of the reservoir. Estimated at roughly 15% average decline per year.

Canceling current drilling operations hurts future book value and solvency of the company.

Phase 2: The Unit Cost Blowout

This is where SAGD physics punishes the CapEx cut.

A CPF (Steam Plant) costs tens of millions per year in Fixed Overhead (Staff/Lights/Prop. Tax) to keep open, regardless of volume.

By saving CapEx and refusing to spend on future production, they made their future per-barrel OpEx higher, deepening the cash burn. If fixed costs REMAIN THE SAME, but barrels produced is LOWER, the revenue generated per barrel must mathematically be HIGHER to offset the lost production.

Phase 3: The Covenant Breach - The Receiver Steps In

The Bank calculates the Debt-to-EBITDA ratio.

Because EBITDA is negative and Debt is fixed, the ratio hits Infinity.

The Bank issues a demand notice. Pay up now. They can’t.

The Company files for Bankruptcy.

Phase 4: The Operator (Receiver) Kill Switch

The Receiver (e.g., AlixPartners) takes the keys.

Their Job: “Maximize Creditor Recovery.”

“Every day this plant runs, it loses $200,000 in natural gas bills. We have no money to drill new wells to fix the decline.”

The Decision: “Shut it in immediately to stop the bleeding.”

Zombie End Game

The inability to spend Sustaining CapEx creates a zombie plant.

It exists, but it is effectively dead because the New Wells cannot be purchased.

Accounting rules force the company to admit it cannot buy the fuel.

Banks force the liquidation.

The Liquidator pulls the plug on the steam.

This leads to the final, physical destruction: The NCG Blowdown.

Because they can’t afford to run it, and they can’t afford to drill it, they effectively euthanize it to save the monthly gas bill, sterilizing the remaining years of reserves in the process.

---

Numbers Validation from Direct Corporate Reporting

To prove this isn’t an arbitrary estimate, here are data points from corporate guidance reports (2023–2025 period).

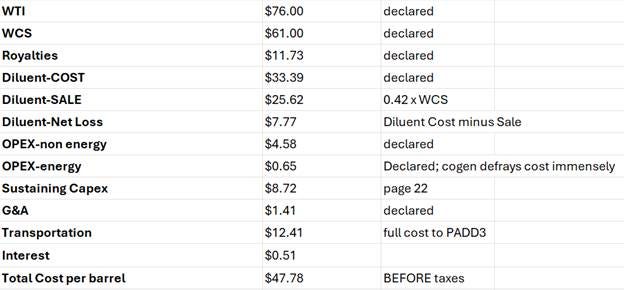

Source A: MEG Energy

MEG Energy Corporate Presentation / 2024 Budget

Based on 1.0 bbl of Shipped BITUMEN.

MEG balance sheet simplified. 100kbpd, annualized at 36.5M barrels. USD FIGURES

Diluent cost is the single largest one line expense for MEG at $1.7B CAD. That is not a typo. 43% of general expenses are from diluent costs.

If you don’t have diluent, you don’t move bitumen.

2024 MEG results show a high breakeven of $48 USD WCS. This is fine since the WCS averaged $61 giving them a margin of $13 before taxes. At 23% corp tax rate, that leaves about $10 free cash flow.

Can be used for dividends, buybacks, rainy day fund, capex.

Foreshadowing: That $10 buffer is about the price differential for Venezuelan tanker shipped oil vs pipelined Canadian oil to PADD3.

Source B: Athabasca Oil Corp

AOC 2026 Budget

AOC 2024 MDA

AOC 2024 Financial Statements

Management explicitly states their “Operating Break-Even” is ~US$40/bbl WTI. This implies their cost structure consumes almost everything below $40.

Debt Interest: They proactively refinanced in August 2024 (redeemed US notes, issued C$200M @ 6.75% unsecured).

• Interest Cost: Extremely low (~$0.70 USD/bbl).

AOC deliberately chosen for its 2x higher SOR of 4.2 vs MEG 2.1.

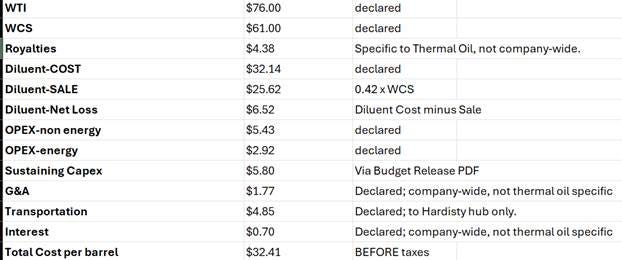

Based on 1.0 bbl of Shipped BITUMEN. All figures in USD.

Diluent cost is the single largest one line expense for AOC at $550M CAD.

If you don’t have diluent, you don’t move bitumen.

AOC 2024 balance sheet simplified. 34kbpd; annualized at 1.24M barrels.

Despite a 2x higher SOR than MEG, AOC has a much lower total cost. Unfortunately, this leaves them at the mercy of Aggregators. They do not have committed space to ship to PADD3 like MEG has.

Under Orinoco marginal price pressure, Aggregators will bid WCS prices lower to ensure the delivered cost to PADD3 end user remains competitive. MEG full transport cost to PADD3 indicates an additional $7 over Hardisty only.

Downstream $7 spread is captured by the Aggregator. They take the marketing and transport cost risk instead of AOC.

AOC has very optimistic price forecasts.

They projected a 2025 WCS price of $83 CAD, converted to USD at 1.38 is equal to $60 USD.

Actual 2025 WCS averaged $55 USD. Their forecasts through to 2032 indicated endless WCS price appreciation.

AOC did not include a stress scenario in guidance for WCS price drop per their full 2024 consolidated financial statements.

With the current Orinoco oil displacement possibility, this is incredibly shortsighted. If it wasn’t predictable in 2024, it is a real scenario now. Internal company risk teams under the CFO SHOULD be running the exact scenarios being discussed by the CIA Research Team.

The Average Fallacy

This is the fatal logic that equity analysts often miss because they look at the “Corporate Consolidated” column in the Excel spreadsheet rather than the “Field Level Netback.”

All oil companies have high and low performing assets. In a stress scenario, the low performing asset is cut first.

Which is straightforward and logical.

At first.

Corporate averaging hides the cancer. When you cut the “Dog” assets to save the company, you trigger a feedback loop that destroys the Balance Sheet value.

The High Grading Trap

Financial inputs utilize Corporate Consolidated Averages. Note that this ‘blending’ masks specific field-level insolvency. In a displacement scenario (WCS <$40), producers must shut in high-cost Tier 3/4 satellites to stop cash bleeding. This action preserves daily liquidity but immediately destroys solvency by converting ‘Booked Reserve Assets’ into ‘Fixed Expense Liabilities’ (Stranded Assets aka Contingent Reserves) and triggering massive reserve write-downs and RBL redeterminations.

From “Asset” to “Liability”

A shut-in field isn’t “free.” It is an Expense Item.

Here is what happens to a field like AOC Hangingstone (Tier 3) when it gets shut in to save the parent company:

1. Revenue goes to $0.00 immediately

2. Variable OpEx (Gas/Transport) goes to near $0; “savings”

3. The Zombie Expenses creates New Liability):

• You cannot let the reservoir go to vacuum. You must inject Methane (NCG) to maintain pressure. Buying gas with zero revenue.

• In January 2026 (-30°C), you must circulate glycol or minimal heat through surface pipes, or they burst. Cost: Electricity/Fuel.

• Municipal taxes and surface rights do not pause because you stopped pumping. Cost: Fixed Cash Drain.

• Security/Monitoring: You need boots on the ground to ensure the plant isn’t looted or leaking.

4. The Net Effect: The asset flips from generating dollars to burning dollars.

It is a parasitical draw on the remaining healthy producing assets.

The Denominator Cost Spiral as Unit Costs Rises

This is the secondary killer. When you shut in X% of your bad production, the “Per Barrel” metrics on your remaining good production get worse. This section is a more detailed explanation of the Unit Cost Blowout of the Solvency Death Spiral section mentioned previously.

• Scenario:

  • Total Production: 100,000 bpd.

  • Fixed Corporate Costs (G&A, Debt Interest, Office): $200,000/day.

  • Unit Cost: $2.00/bbl.

• Action: You shut in 30,000 bpd of Tier 3 garbage.

  • Remaining Production: 70,000 bpd.

  • Fixed Corporate Costs: Still $200,000/day.

  • New Unit Cost: $2.86/bbl.

By saving the company from the negative margins of Tier 3, you effectively increased the breakeven cost of your Tier 1 assets by $0.86/bbl. The surviving barrel now has to carry a heavier backpack of expenses.

Reserve Writedown

Once the shut-in happens, the RBL (Reserve Based Lending) Covenant snaps.

1. Banks lend against “Producing Reserves” (PDP-Proven Developed Producing). They lend very little against “Shut-in/Suspended” reserves.

2. Monday you shut in the field. Tuesday, the bank re-classifies those reserves from PDP (High Value Collateral) to “Suspended/Contingent” (Zero/Low Collateral).

3. Your “Borrowing Base” drops by $100 Million instantly.

4. If you drew that money to keep the lights on, you are now Over-Leveraged. The bank demands an immediate cash payment to cure the variance. You shut in the well to save cash, which triggered the bank to demand all your cash.

Average Fallacy Summary

Shutting in high-cost wells solves the Income Statement problem (Operating Loss) but creates a lethal Balance Sheet problem (Asset Write-down and Credit Call).

It is a choice between bleeding to death slowly (running at a loss) or dying of a heart attack instantly (banking covenant breach).

Already distressed producers in an Orinoco scenario have no correct move. We used AOC as an example since they only have 2 Thermal Oil assets on their balance sheet for easy comparison. The 2 assets have completely different operational profiles.

---

Alberta Oil Sands Royalty Regulation (OSR)

• How can MEG and AOC have enormously different cost structure?

• Why does AOC have a lower per barrel cost?

• Why does AOC have lower royalty payments?

• Doesn’t this mean AOC has a superior balance sheet?

We already mentioned the fact that AOC registers their transport cost via pipeline to Hardisty. That line item is illusory and the Aggregators will punish smaller companies like AOC to ensure the Hardisty price will be delivered to PADD3 that is competitive in an Orinoco Displacement scenario.

Now we need to look at the Royalty Cost Structure.

Essentially, the Alberta Government operates as a partner.

“Until you pay off the credit card you used to build the factory, we will go easy on you (1-9%). Once the factory is paid off, we want our full cut (25-40%).”

MEG pays a massive “Success Tax” while AOC pays a smaller “Development Toll,” and why this actually helps MEG survive a crash better than AOC.

Pre vs. Post Payout

The Framework (At ~$75-80 WTI Prices):

• State A: Pre-Payout Mortgage Phase

  • New projects or assets that haven’t earned back their construction cost (Capital Investment).

  • You pay a Gross Revenue Royalty of ~5% - 9% of the top line.

  • 5% of Revenue. Expenses don’t matter.

• State B: Post-Payout Profit Phase

  • Mature cash cows (MEG Christina Lake, Suncor Firebag) that have generated enough cumulative revenue to equal their cumulative costs.

  • You pay a Net Revenue Royalty of 30% - 35% of the Bottom Line (Operating Profit).

  • (Revenue - Costs) × 35%.

MEG Energy (Post-Payout Status)

• Status: Christina Lake reached “Post-Payout” in Q2 2023.

• They immediately transitioned from paying a small Gross % to paying a massive Net %.

• In 2024 (high prices, low capital spend), their profit margin was wide.

  • The Government took ~35% of that profit.

  • Result: A massive $11.73/bbl expense.

• This confirms MEG is generating immense Free Cash Flow (because the gov only takes 35% if there is profit to take).

Athabasca Oil Corp Mixed Status

• Leismer: Is Post-Payout, but...

  • The “Capex Shield”: Royalties are calculated on Cash Flow minus Allowed Costs.

  • Since AOC spent $195M on capital/growth in 2024, they get to deduct that spend from the Royalty calculation immediately. By spending on expansion, they lowered their tax bill.

• Hangingstone: Is Pre-Payout.

  • It cost billions to build (by prior owners). It hasn’t paid that back.

  • Rate: Fixed low % of gross revenue (~5%).

• Result: A blended royalty of ~$5.00/bbl.

The Insolvency Cushion Paradox

This difference creates a fascinating dynamic in an Orinoco Insolvency ($30 WCS) scenario.

The Royalty Structure acts as an Automatic Stabilizer for MEG, but barely helps AOC.

MEG High Variable:

• Current: Paying $11.73.

• Scenario (Net Income goes to $0): Royalty snaps back to Minimum (Pre-Payout) rates.

• Drop: $11.73 down to $1.00.

• Cash Flow Saved: $10.73 per barrel.

• The government eats a huge chunk of the revenue loss.

AOC Low/Fixes:

• Current: Paying $5.00.

• Scenario: Royalty drops to Minimum.

• Drop: $5.00 to $1.00.

• Cash Flow Saved: $4.00 per barrel.

AOC isn’t dodging cost structure through loophole wizardry; they are paying less because they are either less profitable (Post-payout calc uses lower net income) or still paying off the mortgage (Pre-payout status).

Increasing AOC’s transport and royalty cost to similar figures as MEG, makes their profits per barrel very similar.

SAGD Summary

SAGD sits in the “Uncanny Valley.”

1. It is Logistically Robust enough (no trucks) to avoid the instant death of CHOPS.

2. But it produces the Wrong Product (Dilbit) to survive the Orinoco displacement like Mines (SCO) do.

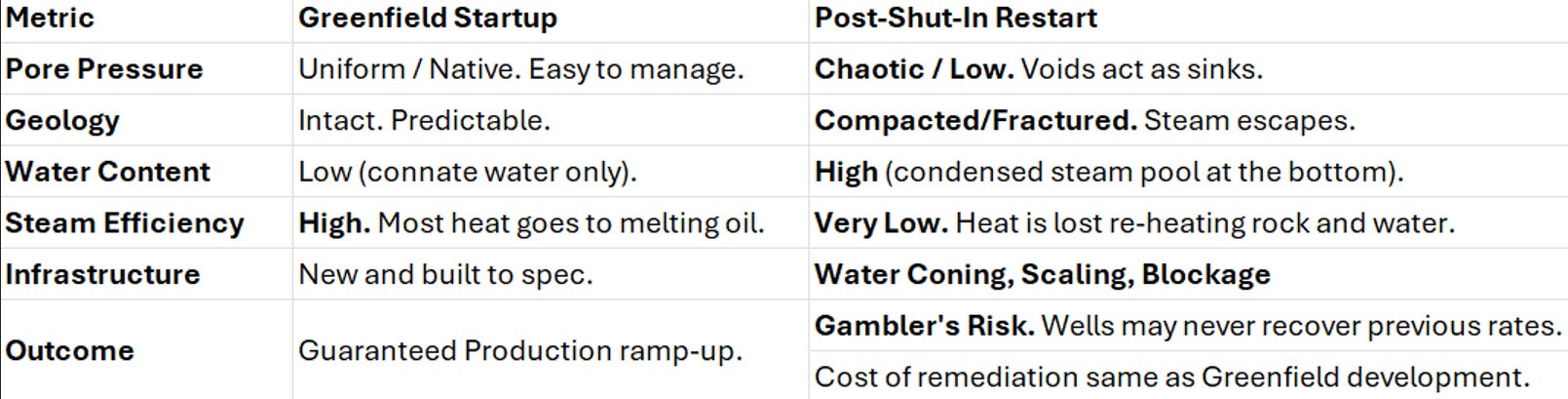

3. Worst of all, it has the highest penalty for stopping (Reservoir Sterilization).

In the Orinoco Displacement scenario, Tier 3 SAGD keeps bleeding cash to try and save the reservoir until the balance sheet snaps, leading to the massive writedowns.

Orinoco Displacement becomes an Impossible Scenario for the entire Canadian Oil Industry

$30.00 WCS Realized Price, discounted for tank top breach scenarios:

• If they run full out: They lose profit for every barrel (Insolvency).

• If they stop drilling: Production crashes, Debt-to-EBITDA ratio hits infinity (Bank Foreclosure).

• If they Shut-in: NCG Blowdown -> Reserve Sterilization -> Asset Write-down to Zero (Equity Wipeout).

In a price-fixing environment (Differential Blowout), your interest payment and fixed costs schedule is the same. You produce less barrels but need to pay the same fixed cost. You are also generating less revenue per barrel.

The SAGD industry quickly becomes victim to high fixed costs pushing them towards insolvency.

The combination of geology and financial regulations creates a hole they cannot climb out of.

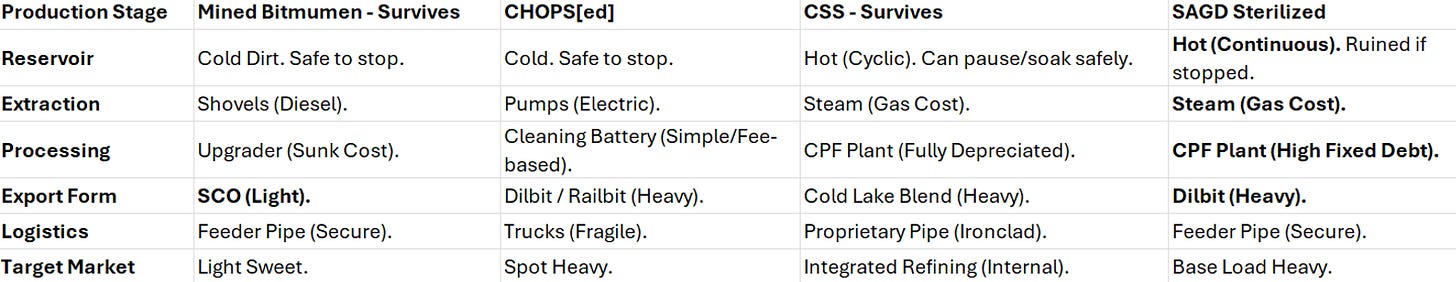

Vulnerability Comparison Summary

The SAGD production loop exposes why it takes the hardest permanent hit in an Orinoco Displacement forecast.

---

Hardisty Alberta Storage Capacity

While Hardisty has significant nameplate capacity, the “Operational Buffer” is shockingly thin relative to the flow rates. Under 700,000 bpd Orinoco Displacement scenario, the entire usable buffer at Hardisty would physically hit tank tops in roughly 2–3 weeks, creating an instant pricing panic.

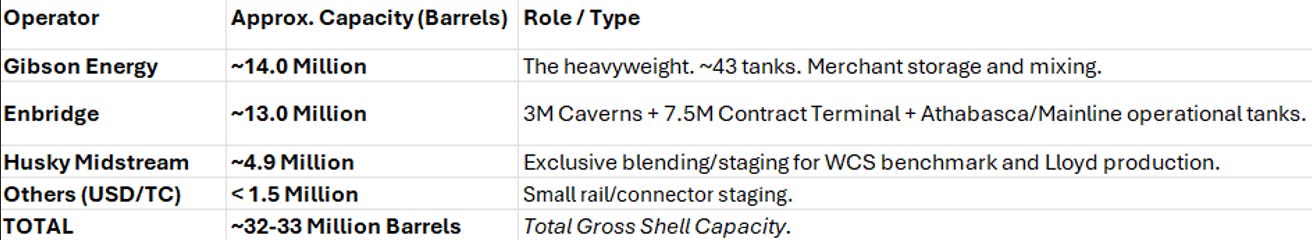

Total Nameplate Storage at the Hardisty Hub is approximately 32-33 Million Barrels. This is split among three major dominant players and a few smaller operators.

The Usable Buffer vs. Dead Storage

You cannot fill every tank to 100%.

Working Inventory: ~20% of tankage is technically “dead space” (bottom sludge/suction limits or safety headspace). Operationally, you actually need SOME amount of inventory to ship barrels.

Usable Capacity is closer to ~25 Million barrels.

Baseline Operations (Status Quo - Jan 2026): To keep the Enbridge Mainline running efficiently, tanks are rarely “Empty.” They usually run roughly 40-50% full to manage batches.

Available: Probably ~12–15 Million barrels max at any given moment.

The Displacement Math Verification

Using the scenario where Orinoco displaces Canadian export flow to PADD 3:

· Displaced Volume: 700,000 bpd.

· Available Buffer (Optimistic): ~15,000,000 barrels.

· 15M / 0.7M = 21 days

Or alternatively, 100 000 bpd oversupplied gives 150 days until tank tops.

Storage Capacity Summary

In a true displacement event at 700 000 bpd where pipelines back up, Hardisty fills up in 3 weeks.

Once Hardisty is full, the backup moves upstream to Edmonton (another ~15M bbls or whatever is free given the same operating constraints as Hardisty, roughly 2 more weeks) and then to the Field (Production Tanks).

Total System Gridlock: ~35–45 days maximum. After that, production must be physically shut in.

Hardisty acts as a shock absorber. If the Venezuelan “Stop Order” lasts longer than 3 weeks, the physical wall hits, prices collapse to $25 (Rail parity), and the Tier 3 insolvency cascade begins.

---

Pipeline Games

There have been repeated mentions of Aggregators, Apportionment and Nominations in regards to pipeline transport. This section will explain the moving parts of this Circus.

Aggregators are the Credit and Logistics Firewall that sits between the “Junk Rated” producer and the “Investment Grade” pipeline.

Aggregators (like Plains Midstream, Gibson Energy, Tidal, and Trafigura) operate on a “Bulk & Blend” model. They claim space not because they drill oil, but because they effectively become the producer in the eyes of the Pipeline Operator.

The Batching Volume Power

Pipelines like the Enbridge Mainline act like moving trains. You cannot put a “bucket” of oil on the train; you must fill a “Railcar” (A Batch).

A minimum batch size is often ~10,000 to 30,000 barrels of a consistent blend type.

A small CHOPS producer makes 200 bpd. It would take them 5 months to fill one batch. The pipeline won’t let them in.

Aggregators have huge tank farms (Hardisty/Edmonton). They buy 200 barrels from 500 different guys, pool it into one tank, create a specific “proprietary blend” (e.g., “Gibson Heavy”), and verify a 30,000-barrel nomination.

The Credit Umbrella Financial Power

This is the most important “Key to the Gate.”

To act as a “Shipper of Record” on a Tier 1 pipeline, you must post massive financial security (Letters of Credit in the hundreds of millions).

The Small Producer: Has a B- credit rating and maxed-out credit cards. Enbridge legal will not accept his signature.

The Aggregator Is often Investment Grade (BBB) or holds massive cash collateral.

The Aggregator signs the nomination contract with Enbridge. They are the Shipper of Record. The small producer does not exist to Enbridge. They buy the oil from the Small Producer and take the spread by marketing it to someone and shipping via pipeline.

The Contract Structure

How the Aggregator books space

They largely use “Spot” (Monthly) Nominations, not long-term Take-or-Pay contracts.

Because Aggregators are traders. They don’t want to be locked into moving oil if the arb closes. They want flexibility.

Long term contracts guarantee pipeline capacity when you need it but you are always paying the operator for the nominate capacity. IE, you want 200 000 bpd capacity, you shipped only 100 000 bpd; you pay 200 000 bpd of capacity moved.

How the Producer sells to the Aggregator

The contract between the Producer and the Aggregator usually has a clause called “Best Efforts” or “Subject to Carrier Apportionment.”

Normal Times: Aggregator buys the oil, takes a marketing fee (e.g., $2/bbl), and puts it in the pipe.

Orinoco Displacement:

1. Mines fill the pipeline with SCO.

2. Aggregator nominates their “Blend.”

3. Pipeline capacity is overbooked.

4. Enbridge cuts the Aggregator’s and EVERYBODY’S volume by X% (Apportionment).

5. The Drop: The Aggregator does not eat this loss. They turn around and tell the producers: “Enbridge cut us. We are cutting your trucking receipts by 100% effective immediately.”

6. The Junior eats the loss and has to shut in production.

The Aggregator carries zero risk. The “Middleman” signed for the space, but the contract allows them to reject the barrel at the farm gate if the space disappears.

Apportionment is supposed to be fair. In reality, it hurts the small producers.

Major League Bullies

Suncor, CNRL, Cenovus, and Imperial use their massive balance sheets and integrated refineries to manipulate the “Nomination Rules” on the pipeline network. This effectively steals shipping capacity from small producers (CHOPS/Tier 3 SAGD) during times of congestion.

Air Barrels - The Apportionment Game

This applies primarily to the Enbridge Mainline, which is regulated as a “Common Carrier” (public bus). In theory, everyone gets fair access. In reality, the Majors game the math.

Total Pipeline Capacity = 3.0 Million bpd.

There is 3.5 Million bpd of oil trying to get on. A cut is coming.

3.5 / 3 = 1.166

When the pipeline operator sees there is too much oil trying to get shipped, they attempt to “fairly” apply an across the board % cut for everyone. Any producer big or small gets the % cut equal to the overcapacity the pipeline is expected to deal with.

Supply & Destination Verification

Enbridge implemented “Verification” Rules. You must prove you have the oil (Supply) and a buyer (Destination).

This rule inadvertently strengthened the Majors.

Supply Verification - Tank Farm

The Junior: Has a tiny 1,000 bbl tank. Enbridge looks and says: “You can’t nominate 2,000 bbls. Rejected.”

The Major (e.g., Gibson/CNRL): Owns massive tank farms in Hardisty (millions of barrels). They can point to an endless loop of inventory shuffling between tanks to “prove” they have 500,000 barrels ready to go. They can verify massive over-nominations that a small player cannot.

Destination Verification - Refining

To nominate space, you need an Affidavit from a Refinery saying “I will buy this.”

Orinoco returns. Texas Refiners stop issuing affidavits to Canadian Juniors. They ghost them.

• Juniors cannot Verify Destination. Enbridge strips their nomination to Zero.

• The Major: Imperial Upstream calls Imperial Downstream (Sarnia Refinery).

• “Will you verify 150k bpd?” -> “Yes.”

• The affidavit is signed internally. The nomination is accepted. The Major keeps shipping while the Junior is blocked by the destination blackout.

The “Major” Strategy:

1. Suncor (Hypothetical Example) has 300,000 barrels of actual oil to move.

2. Their Analysts predict a 20% Pipeline Cut (Apportionment).

3. The Over-Nomination: Suncor nominates 375,000 barrels to Enbridge.

• 300k is Real Oil.

• 75k is “Air” (Oil that doesn’t exist).

• They can do this because they are able to guarantee oil inventory exists and the oil will be used by an endpoint receiver.

• The Majors have massive tank farms and a mature refinery loop as discussed previously in the discussions with Mined Bitumen, CSS, and SAGD.

4. The Result: Enbridge applies the 20% Cut to everyone.

• 375,000 x 0.8 = 300,000

• Suncor ships 100% of their actual oil. They successfully dodged the cut by lying about their volume.

The “Junior” Casualty Producer:

1. Junior Corp has 10,000 barrels.

2. They cannot verify “Air Barrels” because they don’t have massive tank farms or internal refineries to hide the discrepancy. They honestly nominate 10,000 barrels.

3. The Result: Enbridge applies the 20% Cut.

• 10,000 x 0.8 = 8,000

• Junior Corp is physically shut out of 2,000 barrels of sales. That oil stays in their tank, eventually forcing a well shut-in.

Committed Space

While the Enbridge Mainline is a “Common Carrier,” other pipelines (Trans Mountain / Keystone / Express) use Contract Carriage.

This is a Credit Rating War.

To get guaranteed space (where you are immune to apportionment cuts), you must sign a 15 to 20 Year “Take-or-Pay” Contract.

The Pipeline Company (TC Energy/Trans Mountain) requires shippers to have an Investment Grade Credit Rating (BBB/Baa) or post massive Cash Collateral.

By law, 10% - 20% of pipeline capacity must remain available as Spot Cargoes. The small producers are at the mercy of Aggregators here. How well their partner firm plays the Nomination and Apportionment game determines whether the oil is shipped at all.

Why Aggregators “Air Barrel”

You might think the Aggregator is the victim of the Mines, but they play the game too.

Because Aggregators know Enbridge will cut them, they try to secure space by “Over-Nominating.”

To nominate 50,000 barrels, they verify they have 50,000 barrels in their tank farms.

They use their massive tank farms (Buffers) to prove they have oil ready to ship, giving them a higher “Historical Carry” status than a random new shipper.

However in Orinoco Displacement, the buyers (PADD3 Refiners) disappear. Enbridge rules state you must verify Upstream (Oil Supply) AND Downstream (Refinery Buyer).

• The Mines (Suncor) own the Refinery. They verify “Yes.”

• The Aggregator (Plains) has no buyer because Texas is buying Venezuela.

• The Aggregator’s nomination is rejected by the Pipeline Carrier as “Invalid.”

Pipeline Games Summary

Aggregators are “Wholesalers” of logistic space.

• They act as the Shipper of Record. They hold the liability with Enbridge.

• They are fair-weather friends. Their contracts with producers are not “Guaranteed Offtake”; they are “We will take it IF we can fit it.”

• When pipeline space hits 100% utilization, the Aggregator is the one who makes the phone call to the Small Producer saying: “Stop the deliveries. We aren’t buying.”

Major Bullies

• Majors buy “Committed Space” on Tier 1 pipes, leaving less room for the Spot Market.

• On the remaining Spot pipelines, Majors “Over-Nominate” (Air Barrels) to dilute the pool.

• Majors use their internal Refineries (Verification) to validly book space while Juniors get rejected because external buyers disappear.

In Orinoco Displacement, this means:

• Mines and CSS fill the pipe using Verified, Internal, Investment-Grade nominations.

• The “Spot Market” shrinks to almost nothing.

• CHOPS and Tier 3 SAGD are left standing at the terminal with oil they physically have, but “administratively” cannot move. They shut in immediately.

---

Physical Reality vs Financial Reality of Shutdowns

In every major crash in Alberta’s history, Financial Reality won.

The “Ideal Engineering” model is logically sound, but historically, the market does the exact opposite. The players who should cut (Mines) refuse to, which forces the players who shouldn’t cut (SAGD) to destroy their reservoirs.

The Ideal World: The “Benign Dictator” Engineer

If an Engineer ran Alberta Oil Inc. during a crisis (like Orinoco Displacement), the order of shutdown would be:

Stop the Mines (1.7M bpd): Park the trucks. Do maintenance on the upgraders.

• Engineering Consequence: Zero. The ore doesn’t go anywhere. The pit doesn’t collapse.

• Reservoir Benefit: This clears 1.5M bpd of pipeline space immediately.

Stop the CHOPS (450k bpd): Shut off power to screw pumps.

• Engineering Consequence: Minimal. Some sanding issues on restart, but the oil stays put.

Keep SAGD Running: Fill the now-empty pipelines with SAGD crude.

• Result: You preserve the thermal pressure of the reservoir, prevent “sterilization” of the wedge, and save the 8 Billion barrels of reserves.

The province’s total resource recovery is maximized.

When the price crashes, companies do not care about “Province-Wide Recovery.” They care about “Fixed Cost Dilution.”

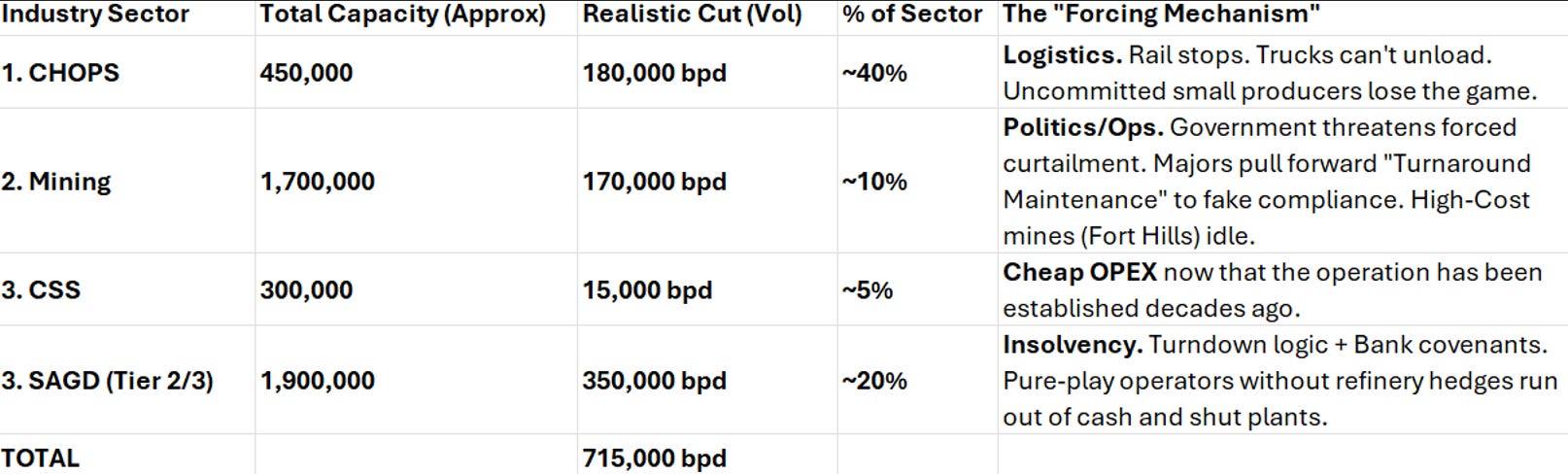

If Venezuelan oil creates a permanent glut in the future:

The “Ideal Engineering” path is ignored.

1. Mines: Run at 100% capacity to lower unit costs.

2. Pipelines: Filled by Mined SCO (which refiners prefer anyway).

3. CHOPS: Shuts down - Historically validated.

4. CSS: continues running with minimal effect.

5. SAGD: Squeezed out of the pipe, economics turn negative. Forced into NCG Turndown. Reservoir sterilization begins.

6. Will the Government step in again? 2018 was a “Transport Crisis” (temporary). Orinoco is a “Market Crisis” of permanent structural competition. The Government cannot order Mines to cut forever. But it might have to. Further analysis assumes some rationality that the government WILL have to step in at some point. All financial math will be laid out in the final synthesis section.

History validates that Economic “Self-Interest” (keeping cash flow) overrides Geological “Common Interest” (saving reserves). The heavy lifting of the cut should be done by the Mines, but in reality, it is forced onto the CHOPS and the Tier 2/3 SAGD producers.

Finally, the Orinoco Displacement scenario guarantees that SAGD will get shutdown. Recall the Twin Barrels Comparison.

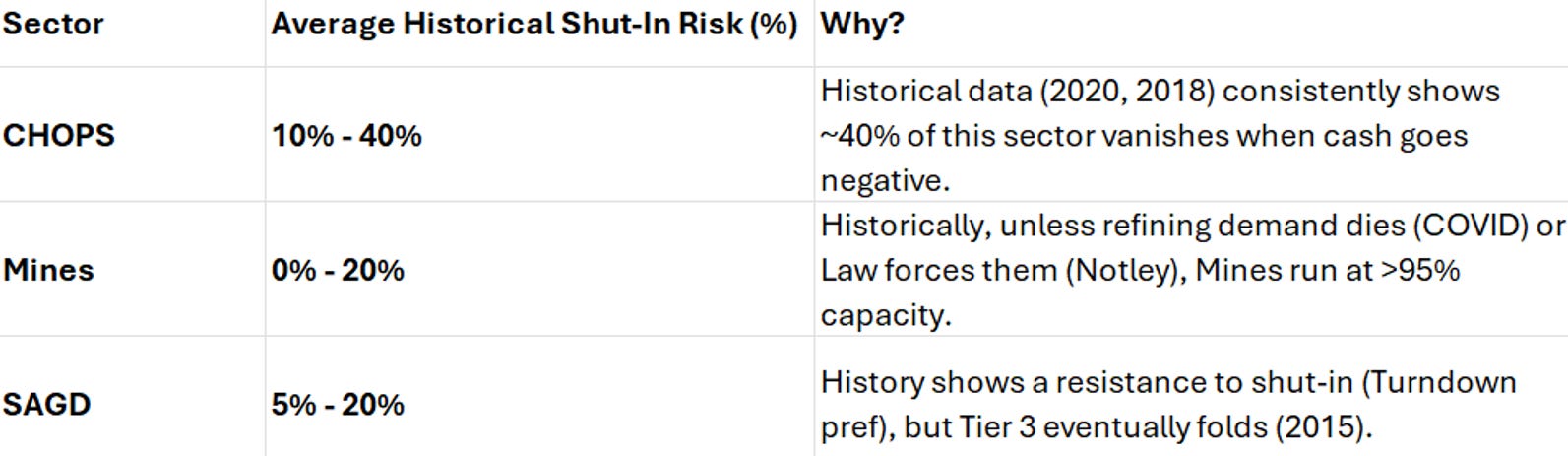

Major Shut-In Events in Alberta’s Modern History

For each event, we calculated the Percentage of Sector Capacity that was shut in. This is the crucial metric to determine the “Pain Tolerance” of each extraction method.

In this manner we can set a scenario baseline for how the industry might behave with Orinoco Displacement active.

Note: Total Capacity figures are based on Alberta Energy Regulator (AER) reports active at that specific time.

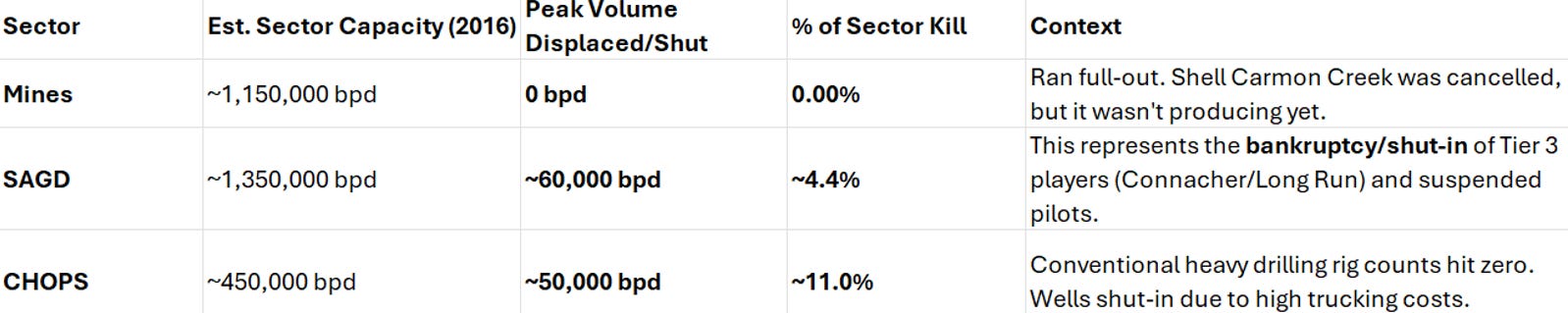

The Financial Insolvency Bleed (2015-2016)

Type of Crisis: Price Collapse / High Costs - Supply Glut + $40 Oil

Mimics scenario of “Tier 3” economics failing over the medium term. This was not a sudden “Flash Cut” but a 12-month period of bankruptcies and cancellations.

Without acute logistical pressure, only the weakest hands fold (~5-10%). Mines do not blink.

The Logistics Crisis & Curtailment (Dec 2018 - Jan 2019)

Type of Crisis: Pipeline Blockage - WCS at $11/bbl

The closest match to “Orinoco Supply displaces Canadian Access.”

Phase 1: The “Market” Reaction (Nov/Dec 2018)

Driven by economic forces before government intervention. Note how the “Free Market” effectively sacrificed CHOPS while Mines ran full-out.

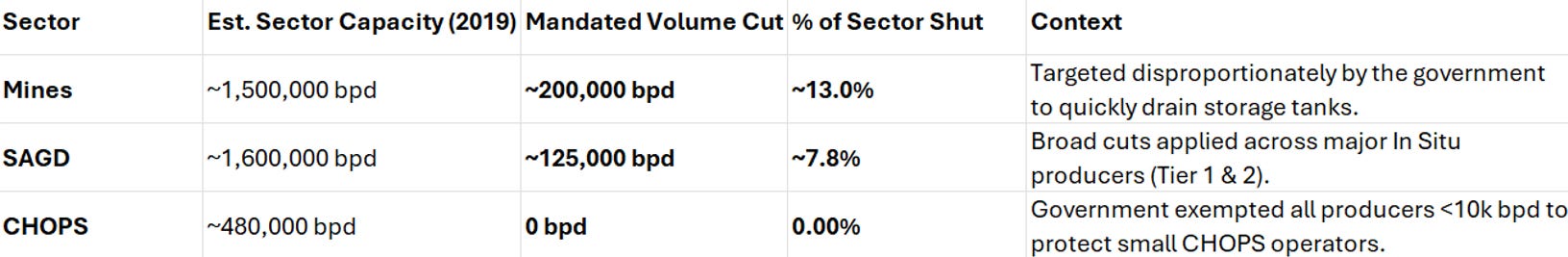

Phase 2: The “Political” Reaction (Jan 2019)

Driven by Government Mandate (The “Curtailment”). Note the complete reversal: The Law targeted the Mines to save the CHOPS producers.

The “Free Market” tried to kill CHOPS (27% cut) and spare Mines (0% cut). The “Government” stepped in to hit Mines (13% cut) and save CHOPS (0%).

Forced Intervention

The 2018 crash was so severe that it proved the “Market” could not solve the problem without destroying the SAGD sector.

Mines kept producing. SAGD was being strangled. The price was $13/bbl (WCS).

Premier Rachel Notley enacted Government Mandated Curtailment. She legally ordered the big producers (mostly Mines) to cut production by ~325,000 bpd.

The Government realized that if they didn’t force the Mines to cut, the storage tanks would never drain, and the entire junior oil sector would be liquidated.

The only time the “Ideal” scenario (Mines cutting to save the basin) happened was when the Government held a gun to their heads.

Total Collapse (May 2020 COVID)

Type of Crisis: Demand & Price - Global Economy Stop

The “Upper Limit” stress test. The closest we came to a 1 Million bpd shut-in.

CHOPS / CONV Includes total AB/SK conventional heavy/medium/light for scale, heavily weighted to heavy.

Lesson: In an all-out crisis, Conventional/CHOPS breaks first (~41%). Mines finally participate (~21%) but primarily via “maintenance” excuses. SAGD Turndown (~17%) acts as the buffer.

---

Synthesis: The Standard Model of Attrition

Applying this to “700,000 bpd” Orinoco Displacement:

1. CHOPS (450k Sector x 40% Risk): ~180,000 bpd removed.

2. Mines (1.7M Sector x 10% Risk): ~170,000 bpd removed (Maintenance maneuvering).

3. CSS (300k Sector x 5% Risk): 15,000 bpd removed - minimal effect; ignored.

4. SAGD (The Remainder): The math demands that SAGD must bear the remaining 350,000 bpd cut.

• This equals ~20% of the SAGD sector.

• This is double the historical “Average.” A permanent displacement creates a uniquely catastrophic event for SAGD, forcing a shut-in level never historically sustained over potentially years.

• Recall the Twin Barrels comparison section. SAGD dilbit is in direct competition with Orinoco oil.

Managing Orinoco Displacement

The Alberta Energy Regulator (AER) knows that if they let Mines run full-out while SAGD dies, they destroy the province’s long-term tax base. We will go into the engineering reasons for this later. For now, we look at the industry and governmental response per historical analogs.

An example Historical Corridor for how a 700,000 bpd cut is distributed, blending Logistic Failure (CHOPS), Financial Insolvency (SAGD), and Political Pressure (Mines).

This model assumes the Alberta Government acts to prevent total SAGD sterilization, but cannot save everyone.

Phase 1: CHOPS (200k) – The Transport Casualty

Historically (2020), this sector shed about 40-50% of volume in weeks. Recall our detailed look at the CHOPS production loop. All those steps mean this sector is highly exposed.

This isn’t a collective decision. It is thousands of individual trucks hitting a gate that says “Closed.”

Historical Validation: In 2020, Heavy Conventional (Lloydminster/Viking) fell by exactly this margin because they are “Price Takers” with zero storage capacity.

Phase 2: Mining (150k) – The Political Hostage

Mines don’t want to stop. But in a 700k disruption, the differential (WCS vs WTI) blows out so wide (-$40) that the Alberta Government intervenes.

170 000 bpd equals shutting down one large Mine Train (e.g., Fort Hills Line 1 + Syncrude Coker 8-1) OR putting the whole sector on a 10% trim.

The Premier calls Suncor and CNRL.

• “If you don’t cut voluntarily to clear pipe space, we will legislate a cut again like 2019.”

• The Majors respond by “moving up scheduled maintenance.” Instead of fixing the upgrader in September, they do it in March during the crash.

Historical Validation: In 2018/19, curtailment forced ~150k-200k bpd offline from the Majors. In 2020, Suncor voluntarily shuttered a 90k bpd train at Fort Hills to manage inventory. 150k is the historical floor for Mining pain.

Phase 3: CSS (15k)

Infrastructure that is mature by decades with low OPEX give this sector staying power.

An internal loop of upgrading ensure the value added end product has export value.

Minimal effect. Mentioned only for completeness. Ignored.

Phase 4: SAGD (350k) - The Financial Victim

This leaves the final chunk with the hardest hit sector.

Even with CHOPS dead and Mines trimmed, the pipeline is still tight.

• Tier 1 - Giants: They refuse to cut. They hedge/refine. (Zero Cut).

• Tier 2 - The Turndown: ~150k bpd goes into “Warm Standby” (reduced pressure). This is the safe zone. Still has a timeline limitation based on OPEX and geology.

• Tier 3: ~200k bpd of high-cost, high-SOR, NCG-dependent assets go cold.

Banking Credit Freeze: Tier 3 SAGD Mid-Caps run out of credit facilities. When the bank cuts the line of credit for purchasing natural gas (OpEx), the steam stops that day. The business case no longer makes sense with exploding WCS differentials.

Turndown cannot last forever. We will be modeling the 350 000 bpd Shut In for SAGD.

Realistic Displacement Management Summary

This scenario honors the realities of all three crashes:

1. The 2015 Crash: Showed SAGD Tier 3 bankruptcy (Connacher/Long Run).

2. The 2018 Crash: Showed Government will force Mining compliance (~10%).

3. The 2020 Crash: Showed CHOPS elasticity (~50%).

The Result:

• CHOPS: 40% cut (Variable cost reality).

• Mines: 10% cut (Political/Maintenance reality).

• SAGD: 20% cut (Financial reality/Reserve Sterilization).

This 40/10/20 ratio is the defensible “Standard Model” for an Orinoco Displacement event. It acknowledges that Mines possess political power and low variable costs, but cannot escape a massive basin-wide crisis entirely unscathed.

Asset Destruction - Balance Sheet Bomb

Shutting in 700,000 bpd permanently is not “belt-tightening.” It is the industrial equivalent of losing the entire automotive sector in Ontario overnight.

Writing down the huge infrastructure built up for the oil industry is a not a task for accounting purposes. It has very real effects directly impacting people immediately.

This impacts stock prices, pension funds (CPP), and lending covenants. It is a financial heart attack for Bay Street.

Recall our previous ZERO SUM estimate was $36B per year if running continuously at WCS differential blowout with 700 000 bpd.

Assessing the CapEx Efficiency by $/Flowing Barrel

Greenfield Cost varies wildly by extraction type:

• CHOPS (Cold Heavy): Low. ~$15,000 - $18,000 USD. (Vertical drills, screw pumps, tank batteries. No steam plant).

• Mines (Fort Hills / Kearl): Extremely High. ~$65,000 - $80,000 USD / flowing barrel. (Massive earthworks, upgraders).

• SAGD (Tier 2/3): High/Medium. ~$30,000 - $45,000 USD. (Requires CPF steam plant, pads, pipelines).

Based on the shutdown priority we established, we run the “Real Sunk Cost” numbers on that 700k bpd cut.

They represent the Replacement Cost of the capacity about to be liquidated.

Here is the source validation for the Greenfield (Initial) Capital Intensity figures for Mines, Tier 3 SAGD, and CHOPS. All conversions assume ~1.30–1.35 CAD/USD historical rates (when these were built).

CHOPS / Heavy: $15,000 – $18,000 USD/bbl

This is the “Cheap” stuff: Trucks, Tanks, and Screw Pumps.

The Source: Cardinal Energy (CJ.TO) / Baytex (BTE) Typical Drilling AFE.

• The Forensic Math Build-Up:

  • Drill & Complete: A vertical/deviated CHOPS well costs ~$1.2 - $1.5 Million CAD.

  • Infrastructure Allocation: Tanks/Battery fees add ~$0.2M per well equivalent.

  • Total Cost: ~$1.5 Million CAD.

  • Initial Production (IP30): CHOPS wells flow hard early. Avg ~65 - 80 bpd per well (flush rate).

  • Calculation: $1,500,000 / 75 bpd = $20,000 CAD per flowing barrel.

  • USD Conversion: ~$15,000 USD.

Unlike Mines (which flow forever), this $15,000 capacity declines by 30-40% in Year 1. You have to spend it again rapidly. The Unit cost is deceptive.

It is 4x to 5x cheaper to bring on a CHOPS barrel vs Mined Bitumen, which explains why Junior companies can enter the space.

Mined Bitumen: $65,000 – $80,000 USD/bbl

This number is driven by the cost of massive Earthworks and Upgraders.

The Source: Suncor Fort Hills (Final Capital Cost Audit).

• The Document: Suncor 2017/2018 Annual Reports (Project Completion).

  • Total Project Cost: $17.0 Billion CAD.

  • Nameplate Capacity: 194,000 bpd.

  • The Math: $17,000,000,000 / 194,000 = $87,628 CAD per flowing barrel.

  • USD Conversion: ~$68,000 - $70,000 USD (at construction FX).

  • Inflation Adjustment (2026 Dollars): Easily clears $80,000 USD.

Secondary Source: Imperial Kearl. The initial phases (before expansion efficiency) consistently tracked >$70,000 USD equivalent due to the Paraffinic Froth Treatment plants.

SAGD (Tier 2/3): $35,000 – $50,000+ USD/bbl

This is the cost to build the CPF + Initial Pad for difficult reservoirs.

The Source: JACOS (Japan Canada Oil Sands) / Athabasca Oil Corp - Hangingstone Expansion.

• The Context: This is the definition of a Tier 3 asset (later sold to AOC). It faced delays and geology issues.

• The Numbers:

  • Total Project Cost: ~$800 Million+ CAD.

  • Initial Capacity: ~12,000 bpd. (Ramped to 20k later, but capital intensity is calculated on launch).

  • The Math: $800,000,000 / 12,000 = $66,600 CAD per flowing barrel.

  • USD Conversion: ~$50,000 USD.

Secondary Source (Current Build): IPC Blackrod (International Petroleum Corp).

• Project: Phase 1 sanctioned recently.

• Guidance: ~$1.1 Billion CAD = $850 Million CAD base + inflation

• Capacity: 30,000 bpd.

• Math: $36,000 CAD = $27,000 - $30,000 USD.** (This is considered “Best in Class” efficiency).

The “Tier 3” Reality: Since Tier 3 assets like Hangingstone are less efficient than Blackrod, the cost scale pushes up toward $40,000 - $50,000 USD.

Tier 3 assets are Capital inefficient. They historically cost >$40k USD/bbl to build because the CPFs had to be oversized to handle high water volumes (SOR).

These figures verify the Replacement Cost of the assets for the Orinoco Displacement solvency model. The banks are lending against this “Steel in the Ground.”

Casualty Breakdown

CHOPS: 250,000 bpd Cut

• Capital Cost: ($15,000 to $18,000 USD/bbl) x 250 000

• Total Destruction: $3.75 - $4.5 Billion USD

Mined Bitumen: 170,000 bpd cut

• Capital Cost: ($65,000 to $80,000 USD/bbl) x 170 000

• Total Destruction: $11 - $13.5 Billion USD

Tier 3 SAGD: 350,000 bpd cut

• Capital Cost: ($30,000 - $45,000 USD/bbl). Tier 3 is capital inefficient, often higher cost per barrel than Tier 1.

• Total Destruction: $10.5 - $15.75 Billion USD.

Total Invested Capital Destroyed: ~$25 - $33.75 Billion USD in direct writedown from balance sheets

This is nearly the full $36B cost from running non stop for 1 year.

Audit Rules Validation

There is one accounting caveat that makes it slightly less painful for the banks, but more painful for the stock price.

Sunk Cost vs. Net Book Value (NBV)

The total ~$30B was the cash spent to build the plants (Historical Cost).

However, many of these plants are 10 years old. They have been “Depreciated” on the books.

• Estimated Remaining Book Value: Likely 50–60% of the original cost.

• The “Accounting” Write-Down: Likely ~$15B.

Even if the accounting loss is only $15B, the Enterprise Value (Stock Value) assumes those plants will run for 30 years.

The stock market valuation is not based on “Book Value” (the rusted steel); it is based on “Discounted Future Cash Flow.”

The write-down to Zero wipes out the entire Discounted Cash Flow (DCF) model. The equity value falls much harder than the accounting loss suggests.

The Logic Check: One-Time Loss vs. Perpetual Bleed

The final trade-off analysis is the grim CEO calculation:

• Scenario A (Keep Running): Lose $36 Billion/year (the Differential blowout we calculated previously) essentially forever or until markets re-balance.

• Scenario B (The Kill): Write down $15 Billion (One-Time) and shrinking the industry.

Asset Destruction Summary

This is exactly the ruthless math that drives consolidation (Majors buying Juniors to shut them down). The industry takes the “Bath” (Write-down) to save the “Margin” (Restoring the price).

The write-down is the lesser of two evils compared to running into a storage wall forever.

We will go into the longer term Engineering cost once this economic analysis is completed.

The Math of Decline

The Managed Shutdown effectively amputates 17.5% of the Petroleum Sector’s Volume (700k out of ~4M bpd total liquid exports) to save the price of the remaining 82.5%.

While the Balance Sheet stops bleeding (The crash stops), the Income Statement has permanently contracted.

The Export Value Loss - The 5% Hit

• Oil Export Share: 30% of Total Canadian Exports.

• Volume Cut: 700 000 / 4MBPD = 17.5%

• The Hit: 0.3 (economy export oil_share) x 0.175 = 5.25% Permanent Reduction in Total National Export Capacity.

Canada permanently loses ~5% of its foreign currency generation power.

Recall the math with full production with Cushing tank tops full revealed a 55% netback reduction in Terms of Trade with the US. That resulted in a 10 cent reduction in the USD/CAD rate.

Shutting in 700 000 bpd at WCS $47 = $33M per day or $12B per year. This is 1/3 of the $36.5B in the original dispatch which was continuous pumping.

Roughly in the range of 3 cent FX devaluation before other effects.

So totaling the Asset Sheet Writedown of $15B with depreciation included plus full loss of 700 000 bpd dollar value:

$15B + $12B = $27B first year hit

Which is a considerable savings over the $36B. But we have lost tax revenue from people that are no longer employed. They have moved to PADD3 employment instead. The continuous cost to the country will be $15B per year unless other markets can be found.

But wait. There’s more.

The Hidden “Year 2” Killer: The Death of CapEx

This is where the GDP hit gets worse than calculations suggests.

The GDP contribution of the Oil Sector is split into two buckets:

1. Production (Selling Oil): This survives at 82.5%.

2. Capital Expenditure (Drilling/Building): This goes to Zero.

The Growth Trap:

In a normal year, the oil industry reinvests ~$25–$30 Billion CAD into new wells, facility upgrades, and pipelines to maintain or grow production.

In the “Quota Scenario” (Locked at 3.3M bpd): Why spend money to grow?

Companies will slash CapEx to Maintenance Capital Only.

An immediate ~$15–20 Billion annual hole in the Alberta construction and engineering sector. All growth spending will stop. The industry will focus on maintaining and increasing efficiency of the remaining 3.3MBPD live production sites. Therefore, SOME Sustaining CAPEX spending will still occur. But not the full $25 - $30 Billion.

• 700 000 bpd cut at $47 WCS = $12B yearly

• Infrastructure writedown = $15B first year only

• Sustaining Capex = $15B yearly

• Continuous cost if 700 000 bpd shut in: $27B

So we are 75% of $36B of KEEP PUMPING.

Why Managing Decline is Impossible

If Alberta chooses the “Shut In” route to save the price, they are effectively enforcing a quota system.

The Political War: Who gets to produce?

• Does CNRL get to produce because they are efficient?

• Does the small junior producer get cut to zero?

The Majors (CNRL, Cenovus, Suncor) control the pipeline access. They will squeeze the juniors out of existence. The 700k cut won’t be evenly spread; it will result in the total bankruptcy of the entire junior/mid-cap sector.

Consolidating the industry into 3 or 4 giant zombies that generate cash for shareholders but zero growth for the economy.

• Job Losses: Permanent. The talent moves South. This is what the 75% and $27B savings doesn’t fully capture. Permanent reduction of taxbase.

• Asset Loss: Irreversible due to thermal dynamics. Accounting rules force writedowns. Once the reservoir freezes, it’s dead.

• The End State: Alberta moves from a “Growth Economy” to a “Liquidation Estate.”

This reinforces the Secession Pressure.

If the Federal Government forces Alberta to swallow this loss (by not repealing C-48 immediately), the Albertan workforce realizes their only future involves holding a US Passport, because that is where the oil economy is and where jobs went.

Albertan Zombie State

New Normal for Canada post-2027 under Orinoco Displacement:

1. Asset Write-Down: $15 Billion (One-time, Year 1). The banks eat this.

2. Lost Revenue: ~$12 Billion USD / Year (Annualized loss of selling those 700k barrels). The Treasury eats this.

3. Lost Investment: ~$15 Billion / Year (Lost CapEx/Construction). The Working Class eats this.

4. Capital Flight: Brain drain and permanent loss of tax revenue as Albertan oilfield workers move to the booming US oil sector thanks to Orinoco oil.

5. Export Loss: 5% Total. The Currency eats this.

This scenario effectively turns Alberta into a “Utility.” It generates cash, it doesn’t grow, it employs fewer people, and it slowly decays.

It avoids the Immediate Heart Attack of Scenario A KEEP PUMPING ($0.60 Dollar) but replaces it with Terminal Cancer (Secular Stagnation).

It creates the exact conditions of high discontent, no future growth; that makes Political Separation attractive to the Alberta population.

Marginal Pricing

This is the invisible transmission belt that allows Venezuelan supply to crash the WCS price even without saturating the physical volume.

700 000 bpd full displacement is not necessary to fully reprice the Canadian WCS price. Even something like 100 000 bpd is more than enough. Venezuelan infrastructure as a reminder already produces in the region of 1MBPD. We are not talking about a full revitalization CAPEX project to get back to 3MBPD.

In commodity markets, you do not compete on Input Costs (which are private); you compete on Output Margins (which are public).

The PADD3 Ownership Map: Canada is Naked

This is the single greatest strategic failure of the Canadian Oil Sands Majors over the last decade.

Canada (Cenovus, Suncor, CNRL): They built Ironclads in the US Midwest (PADD2). Suncor and Cenovus control the refining complex in Toledo, Lima, and Wood River. They are safe there.

Canadian companies own ZERO refining capacity in PADD3. They are “Merchant Sellers.” They push oil all the way to Houston and then stand on the dock begging Valero, Marathon, or Chevron to buy it.

In PADD2 (Chicago), Canada controls the demand. In PADD3 (Texas), Canada is at the mercy of US refiners.

The US Majors: The “Venezuela” Club

The US Energy Imperialism operation seeks to fully take advantage of Orinoco oil. US companies are Vertically Integrated into Orinoco. And they will absolutely press their full pricing power.

Chevron - The King

• Upstream: Partner in 4 major projects in Venezuela (e.g., Petropiar).

• Downstream: owns the Pascagoula Refinery (Mississippi) which is historically optimized for Orinoco heavy.

• The Advantage: Chevron can produce Orinoco crude for $8/bbl OPEX, ship it to their own refinery for $2/bbl, and refine it into Diesel. Their cost basis is incredibly low. A future dispatch will explain how this is possible. Other commentators are screaming about the high cost of Orinoco oil. They are misinformed.

• WCS CANNOT COMPETE.

Citgo

• Owned by PDVSA (Venezuela) but operating in the US.

• owns the Lake Charles and Corpus Christi refineries (Heavy crude specialists).

• Regime Change: Instantly reintegrates the supply chain. Venezuela pushes Merey 16 directly to Citgo.

PADD3 Pricing War

Would other PADD3 players DEMAND a lower WCS to maintain their own margins?

YES.

Step 1: The Product Market is Global
Refineries sell Diesel/Gasoline into a competitive market.

• Chevron (Orinoco Integrated) sells Diesel for $100.

• Valero (Pure Refiner/WCS buyer) sells Diesel for $100.

Step 2: The Profit Squeeze

• Chevron’s Math: Input Cost ($10 Orinoco Lift/Shipping Cost). Massive “Super-Margin.” Chevron reports blowout earnings.

• Valero has to buy crude on the open market. If Valero pays $50 for Canadian WCS, their margin is thin. Their shareholders scream: “Why are you making $10/bbl profit when Chevron is making $40/bbl profit?”

Step 3: The Demand Destruction
Valero cannot lower the global price of Diesel. The ONLY lever Valero can pull to fix their margin is to crush their input cost.

• Valero goes to the Canadian producer at the dock in Houston.

• Valero says: “Chevron is running crude that cost them effectively $30. Orinoco spot cargoes are available at $40. I cannot pay you WCS $50. I can pay $40. Take it or leave it.”

• WCS price collapses to match Orinoco, even if Valero didn’t actually buy the Venezuelan barrel yet. The mere existence of the low-cost competitor forces the incumbent to re-price.

• We can already see the effect of WCS pricing just on the mere mental perception of Orinoco oil being a possibility. The markets have already reacted and are future discounting already.

OPERATION POMPEY or otherwise

If the US administration pushes for rapid stabilization in 2026, the speed of this contagion accelerates due to “Shadow Maintenance.”

While sanctions were in place, companies like Chevron received special licenses (General License 41) to keep their joint ventures “warm.”

Orinoco didn’t go cold (like a sterilized SAGD well). It was kept on life support. Unlike starting a Tier 3 Canadian project (which takes 2 years), Orinoco volume can likely jump by 200,000–300,000 bpd within 12 months of full sanctions relief.

Trump’s Goal: Low inflation. He wants US Refiners (Valero/Marathon) to have access to the cheapest possible feedstock. He is structurally aligned with Price-Matching Venezuela against Canada to lower gas prices for US voters.

The trick here is the US does not have to go Imperialist Zero Sum. Their oil industry will simply look at the economics of Orinoco oil, determine if the situation is stable politically and CHOOSE THE LOWER PRICE OPTION.

Canada Pricing War - Commodity Game Theory

Market price movements happens at the margin. It doesn’t matter if the surplus is 700,000 bpd or 1 barrel per day.

Once Supply > Takeaway, the storage tanks begin to fill.

Once Storage = 100%, the price for the next barrel isn’t “$60 minus discount”; it is Zero.

However, the Game Theory of the oil patch prevents Pre-emptive Curtailment.

The Mathematics of The Margin

We don’t need a full 700,000 bpd Orinoco flood to wreck the price.

Hardisty/Edmonton Capacity is actually quite lean (approx 2–3 weeks of flow).

If production exceeds takeaway by just 100,000 bpd.

You get 150 days until you’re at tank tops. See our previous section on Hardisty storage dynamics.

Once the tank is full, the seller must find a spot buyer instantly (Rail) or shut in. To tempt the Spot Rail buyer, the seller drops the price violently. The WCS Differential doesn’t slide gracefully; it gaps down.

The Prisoner’s Dilemma: Why they won’t cut

The Logic is for everyone to cut 5%.

But looking at the individual actors, Logic = Suicide.

Player A: The Tier 3 Junior (The Desperate)

High Debt. Low Cash. Break-even price is high.

“I have a loan payment due Friday. If I cut production 10%, my revenue drops, and I default. I must produce max volume and pray the price holds. I cannot blink.”

Strategy: Maximum Output (regardless of price) until the bank takes the keys.

Player B: The Tier 1 Major / Mine (The Predator)

Huge Balance Sheet. Refining Hedge. Low costs.

“Why should I cut production to support the price for Player A?

If I cut, Player A survives and keeps cluttering up my pipeline space.

If I don’t cut, the price crashes. I lose money for 3 months, BUT Player A goes bankrupt.

Once Player A is dead, his production stops (shut-in/sterilized), the pipe clears, prices recover, and I can buy his assets for scrap.”

Strategy: Predatory Volume. They purposefully over-produce into the glut to force the weak hands to fold.

2018 Historical Proof

The WCS differential started blowing out due to a pipeline shortage (marginal barrels backed up).

Did they cut? NO.

The Major’s Move: Suncor and CNRL ramped up production. They filled the storage tanks to the brim.

WCS fell to $11/bbl.

The only reason it stopped was the Government Intervention (Notley). The industry proved it was incapable of self-regulating.

The 2026 “Rail Arb” Factor

Source: Huffingpost

There is one nuanced difference between a 100k surplus and a 700k surplus: Rail.

Scenario A: 100,000 bpd Displacement (Partial Orinoco)

· Pipelines can’t move anything since tank tops hit. Trains MUST start moving. The cost is 2x higher than pipeline per barrel. This is the only way to transport oil if storage is full and you refuse to shut in production.

· The Crash stops. Canadian oil industry bleeds but survives.

· But this is assuming there is still PADD3 demand for dilbit. Orinoco oil provides a 1:1 replacement. More likely, SCO will be transported by rail, it’s higher value ensures a margin to absorb the increased cost.

· CHOPS and SAGD bitumen is economic death by a thousand cuts.

Scenario B: 700,000 bpd Displacement (Full Orinoco)

· Rail fills up (Rail capacity is ~200k-300k max effectively).

· We still have 400,000 bpd of surplus after every train is full.

· Supply and Demand: Everybody is desperate to get rid of their oil. They all bid up the rail car rates. What may have looked barely economical during normal market operations turns into a festering wound on the balance sheet.

· Rail capacity maxes out, companies will acquiesce and force shut ins as the transport cost rises.

· Canada faces a structural recession.

The Canadian oil industry functions as a Tragedy of the Commons.

Pre-emptive action requires a Cartel (OPEC) or a Government Curtailment.

If the displacement starts small (100k), the price creates a Rail Floor (High Differential, but functional).

If the displacement accelerates (Orinoco ramp-up), the Rail Capacity is overwhelmed. Since the Majors will refuse to cut (to kill the Juniors), and the Juniors refuse to cut (to pay the bank), the “Tank Top” event is mathematically guaranteed.

The crash continues until the physical shut-in physically removes barrels from the market.

Economics, not Management, will act as the Regulator.

Marginal Pricing Summary

There is Zero vertical integration protecting Canada in the PADD3 battleground.

US Majors (Chevron): Will use integrated Venezuelan crude to print money.

Independent Refiners (Valero): Will use the Venezuelan “threat” to bludgeon the Canadian price down to match Venezuelan margins.

WCS Price: Is not set by the “cost to produce in Alberta.” It is set by the “Lowest Competitive Alternative in Texas.” As soon as Orinoco arrives, it sets the floor, and Canada must cut its price (and destroy Tier 3 solvency) to match it.

ZERO SUM US Imperial treachery is not needed.

Only the pure market signal of lower input costs.

Unfortunately, the Canadian oil industry itself is operating another ZERO SUM game. Everyone will keep pumping to try and generate as much revenue as possible. Pipelines will overload, rail transport will become viable. But even that is only a bandage on a gaping wound.

Displacement mitigation is possible via rail only if volumes are small. But capacity limits under high volume displacement will create permanent pain.

If Orinoco Displacement fully eats PADD3 import volumes, the entire loss for the Canadian oil industry will center around bitumen shut in. Most of the 700 000 bpd will be from cuts in this specific oil type. We assume the Standard Model of Shut In for simplicity instead of deliberately engineering the parameters of a SAGD collapse hypothetical.

The Canadian economy should be preparing for this NOW.

But people keep repeating “Everything is Fine,” as a narrative instead of a number quantified risk scenario.

Summary Macro-GDP Perspective

The net amount of “wealth destruction” is roughly equivalent in both scenarios. You are simply choosing who bleeds.

However, the difference lies in Income vs. Employment. This forces a class war between the Government/Shareholders (Liberal Government) and the Workers/Population (Alberta).

Scenario A: The “WCS Blowout” - Keep Pumping

Canada creates a glut. Rail determines the price floor. WCS drops to $20/bbl.

Canada loses roughly $100M/day in Revenue.

US Refiners (PADD2/Chicago). They get to buy Canadian oil at a massive discount.

The Canadian Worker: Keeps their job. The volume is moving, so trucks need drivers and wells need operators.

The Canadian Government: Goes Broke. Royalties track revenue, not volume. At $20/bbl, royalty checks fall to ~1% of revenue. The Federal Tax base collapses.

The Currency: Crashes ($0.60 CAD). All Canadians suffer 15% inflation on food/tech. Alberta hit hardest with knock on effects due to equalization payments making the rest of Canada feel the pain from Alberta’s reduced oil revenues.

Scenario B: The “Strategic Shut-In” - Quota System

Canada forces a 15-20% cut to match pipeline capacity. Supply = Demand. Price restores to normal pipe differential (~$45 netback).

The Winner: Canadian Shareholders & Government. They preserve the margin and the tax base.

The Loser: The Canadian Worker. 50k–100k jobs vanish instantly because production and CapEx stop.

PADD2 refiners have to pay market rate. The US loses the “free discount.”

PADD3 and the US economy gets cheap feedstock and laughs all the way to the bank.

Game Theory: The Liberals Will Choose B

It is better to have a smaller, profitable business than a massive, insolvent one.

Canada is trapped between two forms of destruction.

• Scenario A (Keep Pumping): The Zimbabwe Option.

• Scenario B (Shut-In): The Detroit Option.

If they choose A (Blowout), stock prices crash and the government goes into debt crisis. Keep people working, but the money becomes worthless because you are giving away your resources for free. The currency creates a poverty spiral.

If they choose B (Shut-In), they sacrifice the working class to save the Balance Sheet and the Currency. Maintain the value of the currency/product, but hollow out the industrial base and employment. Factories close (Wells shut in), people leave, but the banks remain solvent.

Saving the CAD (keeping food inflation down) protects the social fabric of Ontario/Quebec (Voters). Sacrificing Alberta roughnecks (Non-Liberal voters) is a politically acceptable trade for Ottawa.

Forecast

The Market will try to pump for as long as possible.

Federal or Provincial Canada will eventually force Option B.

• They will invoke quotas (like in 2019).

• Prices will stabilize.

• But capital will flee because “Growth” is dead.

• Alberta will turn into a rust belt of unemployment.

• Recall the critical 3 year rolling average for fiscal capacity. During this time Albertans will be paying based on a delusional Federal calculation of EXPECTED tax revenues. This will greatly anger the already poor unemployed families.

• Secession Thesis: When the Federal/Provincial government deliberately kills jobs to save the currency/royalty check, the Serfs (workers) who lost their livelihood will have nothing left to lose. They will look South to the US, where the PADD3 boom is hiring.

AND IT WILL BE THE WRONG CHOICE FOR THE LONG TERM.

The Paradox of Choice
Political time horizons are 4 years. Geological time horizons are 40 years.

• Ottawa will care about the price of milk in Toronto today (Currency). They do not care about the “Sterilization of Reservoir Pod 4B” in Fort McMurray forever.

• Therefore, they will force the shut-in. They will prioritize Cash Flow (Price) over Asset Integrity (Physics).

Enforced Shut-In: The Asset DIES.

You save the currency, but you permanently delete X% of the country’s provable wealth reserves. You essentially burn the deed to the land to pay the credit card bill.

We will explore the engineering and geology of why KEEP PUMPING is a better long term solution.

The ideal solution was market diversification 10 years ago but the Federal government prevented such mitigation for the many reasons detailed in the previous dispatch.

---

The Horsemen Cometh - Reserve Sterilization

Now we finally examine the cruel irony of the expected shutdown process which saves the financial stability of Canada but also destroys its long term oil industry economics.

Restarting a shut-in Brownfield SAGD operation is vastly more difficult, riskier, and more expensive than starting a Greenfield project.

It is not like flipping a light switch. It is more like trying to restart a cold heart. When a reservoir is “Greenfield,” the geology is stable and uniform. When a reservoir is “Used” and then “Cooled,” the geology is chaotic and damaged.

This will focus on the field level engineering of SAGD instead of the higher level deliverables loop that terminates in PADD2 and PADD3.

Greenfield Startup

The reservoir pressure is uniform. The temperature is native (~10°C). The pore spaces are filled with solid bitumen.

Steam is circulated to establish “Communication.” The rock heats slowly and uniformly.

Because the rock hasn’t been disturbed, controlling the growth of the “Steam Chamber” (the hot bubble) is easy. The water and oil emulsion drains predictably because you control the pressure gradient from day one.

Success Rate: High. It is standard engineering.

The Cap Rock

Source: Oil Sands Magazine

The reservoir is trapped under a massive, geological “Tupperware Lid” made of solid, impermeable stone.

The specific characteristics of the Cap Rock will determine injection pressure, flow rate and therefore the economics of a particular steam pad.

The Lid of The Clearwater Shale

Directly sitting on top of the McMurray sand (where the SAGD primarily operates) is a geological formation called the Clearwater Formation. It is marine shale and siltstone. The pore spaces in this rock are microscopic. Gas molecules physically cannot squeeze through the rock matrix. It acts as a 40–100 meter thick layer of concrete sealing the reservoir.

As the NCG/steam rises to the top of the chamber, it hits this shale ceiling. It creates a pressurized gas bubble trapped against the rock. Unless the rock creates a crack (fracture), the gas is entombed.

The Weight of the Earth via Lithostatic Pressure

Physics asks: “Can the gas lift the lid off?”
The SAGD reservoir is usually 400 to 500 meters deep. The sheer weight of 500 meters of dirt/rock pushing down (Overburden Pressure) is massive.

The Upward Force: The injection pressure of the Steam/NCG.

The Golden Rule - MOP

The Alberta Energy Regulator (AER) strictly enforces a Maximum Operating Pressure (MOP). Operators are legally forbidden from injecting at a pressure higher than the “Fracture Gradient” of the rock.

• Fracture Pressure: The pressure where you would physically lift the earth and snap the Cap Rock.

Operations usually run at 80-90% of fracture pressure to ensure the lid stays tight.

Does the gas ever escape? Yes.

If the operator gets greedy or incompetent and over-pressurizes a weak Cap Rock, you get a “Surface Blowout.”

The CNRL Primrose Disaster (2013): CNRL injected high-pressure steam (CSS) into a formation with a faulty/fractured cap rock. The emulsion blasted through the shale cracks and erupted onto the surface of the boreal forest (technically a “flow to surface” event). Regulator imposed strict pressure restrictions on that asset, permanently damaging its economics.

How this Hurts SAGD Assets

Source: Lyell Collection

While the gas rarely goes up (to the sky), in geologically unsuitable reservoirs, it often goes UP-then-Sideways.

In many Tier 3 areas (like Athabasca’s Hangingstone), the “Lid” isn’t perfectly flat on top of the oil.

Sometimes there is a layer of “Top Water” or “Top Gas” (a sand layer full of useless natural gas/water) sitting between the Bitumen and the Shale Cap Rock.

As you inject NCG/Steam intended for the oil, the gaseous injection rises UP because physics wants to. The NCG/steam enters the THIEF zone, and dissipates its pressure and thermal gradient. You can’t build a heating blanket because your “tent” has no roof, only an attic that goes on forever.

CAP ROCK Summary

In a good reservoir (MEG/Cenovus), the Clearwater Shale acts as a perfect steel trap, holding the NCG in place to push the steam down.

In a bad reservoir (Tier 3), the seal is imperfect or separated by thief zones, meaning your expensive pressure support leaks away, requiring you to burn even more gas to compensate.

---

The Steam Chamber

The mental image of a “Giant Cavern” (like a salt dome) is incorrect and dangerously misleading for non-technical investors.

A Steam Chamber is physically just Cleaned Sand. This chamber is defined by the heating boundary of the steam injection creating a fluidic zone of mobilizable bitumen that can flow to the bottom collector pipe.

The well pair consisting of the steam/NCG injection pipe and the collector pipe are the core features of the steam chamber. It takes 3-6 months alone to just heat up the surrounding soil enough to begin operations.

The initial steam injection creates the beginnings of the steam chamber. Over time as heat works on the surrounding soil to mobilize the bitumen, the pore space becomes drained of the oil we want. The steam injection begins to slowly heat up the upper cone above the injection pipe. The pipe itself is perforated 360 degrees around, we are trying to heat up the bottom of the steam chamber as well to ensure the collector pipe is able to pull in liquid bitumen.

Physics dictates that the lower density state of matter rises. Injection pressure is like filling a balloon underwater. The gas will always want to rise up naturally.

Steam rises, hits a cold wall at the boundary layer (top/bottom/sides) where the bitumen is sitting. It loses thermal energy and causes a phase change into liquid form. It cannot heat the oil without becoming water. In a perfect world (at startup), 1kg of steam melts 3kg of oil.

This water now flows DOWNARDS carrying the bitumen with it to the collector pipe below.

This is the SOR we have covered extensively. Eventually the steam pad and its well pairs exhaust the primary production and utilize infill producer pipes to maximize URR extraction.

The Physics of Heat Transfer (Latent Heat) - Why SOR and the Water Cut constantly increases…

In late life, the steam condenses against the “cleaned sand” before it reaches the oil boundary. It becomes water 20 meters away from the bitumen interface layer. That wonderful steam chamber you’ve spent years extracting bitumen/dollar flow from becomes an adversary of DISTANCE.

The fundamental physical change at the producer pipe is that more and more water arrives for every barrel of oil.

Industry Terminology (SOR vs. Water Cut)

• Water Cut: What the pump lifts (Total Fluid % that is water) and what the CPF deals with.

• SOR (Steam-Oil Ratio): What the boiler injected vs. what you sold.

As the water cut rises, you are lifting huge volumes of heavy water to get a tiny trickle of oil. The “Cost per Barrel” skyrockets because you are essentially running a massive water treatment plant to filter out a few drops of bitumen.

The Steam-Oil Ratio (SOR) rising is just the financial accounting of the physical fact that Liquid Water is drowning out the oil production at the collection point.

This confirms that Late-Life SAGD Wells are physically vulnerable. They are producing massive water volumes for shrinking oil revenues. In Orinoco Displacement, these high water-cut wells are the first to be shut in because treating 20 barrels of water to sell 1 barrel of oil at a loss is insanity.

The Sponge

The McMurray formation is uncemented sand, but it is held together by the bitumen (acting like glue).

• Before Steam: It is a black, solid brick. Pores are 80% Bitumen, 20% Water.

• During SAGD: You melt the glue. The bitumen drains out.

The Sand Grains remain in place (mostly). The rock matrix doesn’t vanish.

The pore space previously occupied by the mobilized oil is now occupied by High-Pressure Steam and Non-Condensable Gas.

eMSAGP and Ceiling Physics

Source: DOI 10.1016/C2010-0-67974-0

NCG injection allows you to manipulate the geometry of the heating.

Without NCG
Steam naturally wants to rise (gravity/density difference). It creates a “Mushroom” shape growing vertically.

Once it hits the cold Overburden or Cap Rock, it condenses violently. You waste heat warming up the ceiling instead of the oil, costing you money.

With NCG
The industry term for this is eMSAGP (enhanced Modified Steam and Gas Push) or simply “Solvent/Gas Co-Injection.”

During normal operations as a mid-late stage production booster, the operator injects a small, continuous stream of Non-Condensable Gas (usually Methane) along with the Steam. Injecting too soon reduces the flow rate and the URR of a particular steam pad. This is reservoir engineering meets financial reality.

You inject NCG. The gas creates a ~2-meter thick “Air Pocket” at the very top of the steam chamber.

Injected steam and NCG tries to rise, hits the NCG blanket, and stops (because it can’t diffuse through the gas to reach the cold roof). The Methane travels with the steam adding to the blanket slowly.

The steam normally hits the cold edges on the top/sides of the steam chamber and condenses into water, the Methane does not condense.

The steam physically tries to heat this blanket but fails miserably because vapor to vapor heat transmission is horrifically poor. So the steam mostly keeps its heat energy. But the injection pressure is still driving this steam, so it must go SOMEWHERE.

Since it is blocked from going Up, and the liquid leg blocks it from going Down, it is forced Sideways. This force “bulldozes” the heat laterally into the “Wedge” zones (the Infill targets). This is another benefit of using NCG injection.

Source: DOI 10.2118/2007-145

Eventually the NCG blanket begins to take up more volume within steam chamber since we are continuously injecting it during eMSAGP as part of normal operations. It grows from the top downwards, crowding out the lateral boundary layer where bitumen might still be scavenged. Continued NCG injection reduces the flow rate of the steam pad. The insulating blanket becomes thicker by the day. The steam that used to touch the boundary layer up top and sideways begins to contact the vapor barrier of the NCG instead.

Once the blanket is formed, you no longer need to inject as much steam to maintain the reservoir pressure. The Gas holds the pressure (keeping the bubble expanded). You only need to inject enough Steam to melt the oil at the sloped edges, not the roof. You stop trading expensive Steam just to hold pressure. You trade cheap Gas to hold pressure and use the Steam only for melting. Presumably the reservoir engineer managed this properly. Otherwise you lost the top bitumen as extractable reserves. That’s why injecting NCG too early is harmful for the economics of a well pair.

By using NCG, a pad that used to need 1,000 tonnes of steam now only needs 700 tonnes. The Operator takes that “saved” 300 tonnes of steam and sends it to a new well pair. They can grow production without spending $200M on a new boiler. This drastically lowers their Sustaining Capital intensity.

How “Normal” usage differs from “Kill” usage

It is vital to distinguish between Optimization (Good) and Blowdown (End of Life/Panic).

Optimization (eMSAGP):

• Mix: ~85% Steam / 15% NCG.

• Goal: Keep the chamber Hot ($200°C+). Keep oil flow rate High. Lower SOR.

• Effect on Reserves: Increases recovery (URR) and flow rate because the steam spreads sideways better when the roof is insulated.

Blowdown (The Panic Button/Orinoco Kill):

• Mix: 0% Steam / 100% NCG.

• Goal: Replace expensive heat with cheap pressure to prevent water influx.

• Effect on Reserves: The chamber cools. Viscosity rises. The wedge freezes. Reserves Sterilized.

Why Tier 3 Companies Fail at This

You might ask: If NCG is so great, why doesn’t AOC/Greenfire use it to lower their costs?

To use NCG effectively, you need a cooperation from Geology and Finance.

The steam bubble must be fully developed. If you inject gas too early (into a “leaky” Tier 3 reservoir), the gas just shoots off into thief zones and you lose pressure. Tier 1/2 assets (MEG) have tight geology that holds the gas in place.

You also need massive gas compression and recirculation facilities at the surface to separate the produced methane from the oil and reinject it. This requires Upfront Capital. Cash-strapped Tier 3 operators can’t afford the expenses.

Why this nuance matters for Reservoir Sterilization

The fact that it is a Pore Space system, not a Cavern, is the exact reason you cannot simply “Shut In and Restart.”

If it were a cavern (Empty Hole):

• Shut In

• Temps Drop

• Restart

Because it is Porous Sand:

• Shut In

• Temp Drops

• The cooling bitumen at the edges, along with water from the aquifer or condensing steam, gets sucked back into the pore space due to capillary forces, cessation of injection pressure and gravity.

• When you try to restart, the pores are now clogged with cold, viscous fluid. The steam cannot re-enter the sand matrix efficiently because the “permeability” has been destroyed by the cooled fluids.

Water Coning

Sources: Oil Sands Magazine and Journal of Petroleum Science and Engineering

In SAGD, the horizontal production well sits at the bottom of the oil zone. In many Alberta Tier 3 assets, sitting just below that oil is a massive, infinite ocean called Bottom Water (Basal McMurray Aquifer).

Water Coning is what happens when that ocean breaks through the oil barrier and floods the wellbore.

Path of Least Resistance

Even when Bitumen is heated to 200°C, it flows like syrup. Water, however, flows like water. It is exponentially more mobile. To produce oil, the operator acts like a straw; they create a pressure drop in the production pipe to suck the emulsion in. If they suck too hard (to increase flow rate and production revenue), they break the pressure equilibrium with the aquifer below. The water table “cones” upwards toward the suction point.

Once water touches the pipe, the water moves so much faster than oil, the pipe stops producing oil and produces 100% Water. It acts like a drain in a bathtub.

Thermodynamic Short Circuit

Why is water breakthrough fatal for a thermal project? Heat Capacity.

Steam is injected to touch Cold Oil and transfer its latent heat to melt the bitumen.

When Water Coning occurs, the steam encounters the invasive Aquifer Water instead of the oil. You are now paying Natural Gas bills to boil the infinite underground ocean. The aquifer sucks the heat away instantly. The Steam Chamber collapses because it can’t compete with the cooling power of the aquifer.

Heat moves like electricity. The heat conduction path is based on least resistance. Both the heat capacity and transmissibility of heat via liquid water is immensely higher than bitumen. Water and heat are like best friends.

You are literally burning money.

The Surface Limit for CPF Water-Out

The surface facility (CPF) is designed with a specific budget for water handling (e.g., handling 3 barrels of water for every 1 barrel of oil; SOR 3).

When Coning hits: The water cut jumps to 95%. The water treatment plant hits maximum capacity processing the flood. Because the plant is full of water, there is no room left in the separators for the oil.

You are running the plant at max electricity/chemical cost, but oil production drops to near zero.

Why Tier 3 is Vulnerable

• Tier 1 (Safe): Assets like Foster Creek/Christina Lake usually have a “Basal Barrier” (a layer of shale/mudstone) separating the oil from the water. The rock protects the well.

• Tier 3 (Hangingstone/Leismer edges): Often lack a continuous barrier. The oil sits in direct communication with the water (”Transitional Zone”). They have to run the wells gently (high pressure, low rate) to keep the water down.

If they try to ramp up production higher suction pressure at the producer pipe to pay off debt, they trigger the cone. If they run gently to stop the cone, they don’t make enough money to service the debt. They are trapped by physics.

Under normal steam conditions, Water Coning is almost always a self-inflicted wound caused by Greed (Aggressive Drawdown).

A healthy SAGD well operates on Sub-Cool Control (keeping a pool of liquid above the producer well) and Voidage Replacement Ratio (VRR) ~1.0 (putting 1 barrel of steam/gas in for every 1 barrel of fluid out).

To pay debts, a Tier 3 operator cranks the pump speed (ESP/Gas Lift). Suction increases and pressure at the wellbore drops. This low-pressure point acts like a vacuum. If the pump pulls liquid faster than the steam can melt bitumen to replace it, the Bottom Water (which flows easily) rushes up to fill the void.

Once the water creates a path (a cone) to the wellbore, the game ends. The well produces 95% water. The thermal efficiency collapses because you are boiling the ocean.

Why do Tier 3 companies trigger coning? Because they can’t afford VRR.

• Proper Ops: Maintain VRR = 1.0. This keeps the chamber pressure equal to the aquifer pressure. Water stays down.

• Insolvency Ops: You are running out of cash for Natural Gas enabled steam injection. You reduce Steam Injection (saving cash) but try to maintain Production Rate (revenue).

Result: VRR drops to 0.8. Chamber pressure drops. The aquifer realizes the pressure drop and invades the reservoir from below.

Gravity Segregation

Does NCG force the water down? Generally NO, because NCG floats to the roof (the attic), while the water attacks from the floor (the basement).

The Physics: NCG goes Up, Water comes Up

“If we are using NCG blowdown, shouldn’t the pressure gradient force the water to stay at the water table?”

In a SAGD chamber, fluids segregate by density.

• Gas/NCG (Lightest): Rises instantly to the top (The Cap Rock).

• Steam (Medium): Fills the middle.

• Oil/Water Emulsion (Heaviest): Drains to the bottom.

• Aquifer (Bottom Water): Sits below the oil.

The NCG Problem:
Because NCG accumulates at the Roof (to form that insulating blanket we discussed), it is physically located as far away from the Basement (water) as possible.

While NCG adds to Total Chamber Pressure (which pushes down on everything), it does not form a physical barrier at the oil/water interface.

The Blowdown Phase: During blowdown, the operator stops injecting steam. Even with NCG injection, the Total Pressure of the chamber usually begins to decline (because you are extracting fluid). Blowdown normally occurs END OF LIFE for a particular well pair. However, due to Orinoco Displacement, this process is started to save the balance sheet and ride out the storm.

But the storm does not abate for several years or possibly decades.

The Crossing Point: As soon as Chamber Pressure < Aquifer Pressure, the bottom water rises. The NCG layer at the top cannot stop the water rising from the bottom.

Water Coning Summary

Water Coning is the thermodynamic penalty for trying to produce water connected reservoirs aggressively. It reinforces why Low Production Rates in Tier 3 are a result of geology, not technology. They cannot produce faster without triggering a flood that destroys collection process and economics.

NCG is great for insulating the roof (Top), but it is terrible at holding back the ocean (Bottom).

In a liquidity crisis, operators Over-Produce and Under-Inject. This violates the pressure balance, inviting the aquifer into the production well and permanently drowning the reserves.

Interaction with “Orinoco Displacement”

If a Tier 3 producer tries to perform the NCG Shut-in/Turndown we discussed:

1. They stop injecting Steam. This creates a vacuum effect or sudden pressure drop deep underground. Gas turning into liquid must physically reduce in volume.

2. Chamber Pressure Drops.

3. Geomechanical Damage: The rock ceiling above the chamber (the Caprock) might sag or crack due to the pressure change. If the Caprock cracks, groundwater floods in. If water hits the reservoir, the well is dead (steam is useless if the well is flooded).

4. The Inversion: The Aquifer pressure is now higher than the Steam Chamber pressure.

5. The bottom water rushes up and floods the horizontal well and the lower part of the reservoir. The condensed water pools at the bottom of the chamber and ruins the collector pipe feeding the CPF.

6. Restart Impossible: You can’t just “turn it back on.” You now have a cold, water-saturated reservoir. If you inject steam, it just heats the water you let in. The reserves are not just sterilized; they are drowned.

If your producer pipe is surrounded by a “Pool” of water (condensed steam + connate water) instead of bitumen: You have to boil all that water off before you can start melting rock again.

You burn millions of cubic feet of gas just to vaporize the water barrier you allowed to form during the shut-in.

By the time you boil the water away to get back to the oil, you have spent more on gas than the recovered oil is worth.

Trying to save their present balance sheet destroys their future book value.

---

Geological and Chemistry Physics of Shut In Production

The Viscosity Cement: Thermal Hysteresis

Now visualize what happens to the oil sitting just inches outside the underground steel pipe.

At standard steam injection temperature of roughly 200°C, bitumen viscosity is like warm olive oil. It flows through the tiny slots in the steel liner easily.

The Shut-In: Temperature drops. Bitumen viscosity does not rise linearly; it rises Logarithmically.

• At 80°C, it becomes thick syrup.

• At 40°C, it becomes solid asphalt

As the reservoir cools, the bitumen surrounding your expensive slotted liner turns back into a solid rock.

Restart Problem: You cannot just “inject steam” to restart. The steam cannot exit the pipe because the holes are plugged with solid bitumen.

To fix this, you have to circulate steam inside the pipe to heat the bitumen outside via conduction (metal-to-rock transfer). This is painfully slow (takes months) and usually costs more energy than the well is worth.

The initial financial projections accounted for this cost with years of well pair production. Now you have to do the math again to determine if this several month reheat cost is worth the paltry oil remaining in that steam pad. Remember that under financial stress, MARGINAL production sites are cut first. So they have poor economics in the first place.

These sites and their associated URR values can be assumed to be lost unless the price of oil recovers to offset the additional secondary restart heat.

Which is a scenario that Orinoco Displacement says won’t happen for many years.

Relative Permeability Flip: Water Lock

Sand grains have a property called “Wettability.” Alberta sands are Water-Wet. They physically prefer to be coated in water rather than oil.

Original State (Day 1): The pores are stuffed with Bitumen. The water is trapped as a microscopic film. Since the water can’t move, the steam pushes against the bitumen face, melting it by force (Conduction).

Post Shut-in State (The Trap): As the steam collapses back into water, that liquid water gets sucked back into the rock pores via Capillary Action. The sand grains aggressively absorbed the water around them and in the pore spaces. Now the pores are filled with liquid water, and the Bitumen is pushed further out.

Once water re-saturates the sand grain surface, the “Relative Permeability to Oil” drops to near zero.

The Restart Fail:
When you try to inject steam into a Water-Saturated zone:

1. Path of Least Resistance: Water is 100x more mobile than bitumen.

2. The steam doesn’t push against the oil wall. It shoots through the “Water Highways” in the pores.

3. Steam injections act as a hot water circulation pump. You are injecting expensive steam, which instantly condenses into the water channel, and then flows out. You never build enough pressure/heat to touch the bitumen wall again because the water “steals” the energy.

Geochemistry - Scale Formation

When you boil water at high temperature and pressure, you can dissolve massive amounts of Silica (Sand/Quartz) into the fluid.

• Normal Ops: The hot water carries the dissolved silica to the plant for treatment.

• Shut-In: The water cools rapidly in the wellbore. Cold water cannot hold silica. The sand precipitates out of solution—not as grains, but as Hard Scale (Concrete).

The slots in your producer liner scale over with silicate deposits. You have to bring in a Coil Tubing service rig to drill out the scale / acid wash the well.

Cost: Expensive ($100 - 200k/well) on a well that has zero revenue and questionable future revenues due to the previous 2 factors: Viscosity Cement and Relative Permeability.

Surface Infrastructure Failure: The January Factor

Don’t forget about Canadian Geography.

The Gathering Lines (running 5km from the pad to the CPF) are full of emulsion.

If you stop flow in January (-40°C):

• The liquid in the miles of above-ground steel pipe stops moving.

• It freezes.

• You now have a 5-kilometer-long “Bitumen Popsicle” inside the pipeline.

Total Loss: You typically cannot unfreeze a solid bitumen line of that length. You have to physically cut the pipe sections out and replace the steel. Even if you managed to reheat this, it would be expensive either way. The infrastructure is effectively totaled.

“It’s just steel and asphalt. Why can’t we just heat it up like a frozen garden hose?”

Physically, bitumen can remelt.

But in an industrial reality (specifically a 5km long high-pressure steel pipe at -30°C), everything is more complicated.

It is not impossible to restart a frozen bitumen line, but it is statistically probable that you will burst the pipe trying to do it.

The Thermal Expansion Bomb

When bitumen freezes in a pipeline, it turns into a solid plug that adheres to the steel walls.

You turn on the Heat Tracing (Electric or Steam coils) to melt the line. Heat transfer is not perfectly even. One section (Segment A) melts. The section next to it (Segment B) stays solid for 10 minutes longer.

Segment A turns to liquid. Liquids expand when heated. But Segment A is trapped between two solid blocks (Segment B and C).

The expanding fluid has nowhere to go. Pressure spikes instantly. Hydrocarbons expand rapidly with heat. You are creating a hydraulic cylinder. The pressure quickly exceeds the Yield Strength of the steel.

The pipe ruptures or the flange gaskets blow out.

You are trying to unfreeze 5 miles of pipe. You trigger 50 ruptures along the length. The pipeline is destroyed.

Asphaltene Precipitation

Bitumen is a mix of heavy chains. When it “Freeze/Thaws” without moving: Paraffin Waxes and Asphaltenes can precipitate out of the suspension.

Even if you get the fluid moving, often the pipe walls are coated in a hard, diamond-like wax layer that reduces diameter. To clean it, you need to send a “Pig” (cleaning device) down the line. But the line is plugged. You can’t pig a plugged line. You are stuck in a Catch-22.

When operators say a line is “Schmooed off” or has “dropped its asphaltenes,” they are describing a pipeline stroke.

Why Bitumen separates into “Concrete”

“Surely not all of the paraffin and asphaltenes fully precipitate out.”

Correct. But you do not need 100% precipitation to ruin the pipe. You only need a thin layer to create flow friction, or a localized plug to stop the whole line.

Bitumen is not a uniform liquid. It is a Colloidal Suspension. Imagine tiny solid particles of “Coal” (Asphaltenes) floating in a liquid soup of Resins and Maltenes. The Resins wrap around the Asphaltenes and keep them floating.

When you mix Bitumen with Paraffinic Diluent (Condensate) and then let it sit cold:

• Destabilization: The Condensate can strip the Resins away from the Asphaltenes.

• Precipitation: The heavy Asphaltenes stick together (Flocculation) and fall out of solution.

• Deposition: They settle on the bottom of the pipe (Sludge) or adhere to the cold steel walls (Scale).

It forms a substance often harder than the original bitumen at the bottom or sides of the pipe. It can range from a “sticky chewing gum” to a “brittle hard coal” depending on the chemistry.

The Role of the Pig-Pipeline Inspection Gauge

Normal Operation
A “Pig” is a urethane or rubber cylinder (like a giant bullet) sized exactly to the pipe diameter. It inserts into a “Pig Launcher” trap at the pad. The pressure of the flowing oil behind it to pushes it down the pipe. It acts like a squeegee, scraping wax/water/scale off the walls as it moves, pushing the debris ahead of it to the plant.

The Catch-22 Plugged Line

To move a pig, you need Hydraulic Pressure. Fluid must flow behind it to push it.

If the line is already “plugged” or constricted by freezing/precipitate:

• You launch the Pig.

• It hits the constriction (The Wax Layer).

• It gets stuck.

• Now what? You push harder with the pumps? Pressure spikes. The fluid cannot get past the pig to relieve pressure. The pipe ruptures.

• Now you have a blocked pipe containing a stuck multi-thousand dollar tool inside it.

The Technical Term for this is: A Bad Day at the Office.

The Math of Diameter Reduction

“How badly does the reduction in diameter affect operations?”

The answer lies in Poiseuille’s Law for laminar flow.

The Flow Rate is proportional to the Radius to the power of 4.

You have a 10-inch Pipeline. Asphaltenes/Wax deposit a 1-inch layer on the inside walls. Effective Diameter is now 8 inches, diameter loss is 2 inches.

Since diameter is exactly 2x radius d = 2r the proportional relationship remains d^4. Just as it is r^4. The constants cancel out.

The Physics Impact

• Base Capacity = 10^4 = 10 000

• New Capacity = 8^4 = 4 096

A 20% loss in diameter results in a ~60% loss in flow capacity (or a 250% increase in the pressure required to move the same amount of fluid). The pumps are sized for a 10-inch pipe. They simply cannot generate enough horsepower (pressure) to push fluid through the 8-inch hole at the same flow rate. The system stalls. The fluid stops. It freezes faster.

Think of fluid flowing in a pipe like cars driving in a tunnel.

• Physics Rule #1 (The No-Slip Condition): The fluid molecules actually touching the pipe wall generally do not move (Velocity = 0). They are stuck to the steel (or wax).

• Physics Rule #2 (The Laminar Sheets): The next layer of molecules slides over the stationary layer, moving slightly faster. The next layer slides over that one, moving even faster.

The Center Lane: The fastest fluid is always in the dead center of the pipe.

What happens when you shrink the pipe:

1. Area Shrinks r^2 - You physically have less room for the cars. (Geometric).

2. Velocity Crashes r^2 - Because the pipe is narrower, the “Center Lane” is now closer to the stationary “Wall Lane.” The friction from the walls acts as a brake on the center of the stream much more effectively. Because the walls are closer, the “drag” forces affect a much higher percentage of the total liquid volume.

Combining them: [ Area r^2 ] x [ Velocity r^2 ] = Flow Rate r^4

The “Flow Rate” math assumes the Pressure is constant. But in the field, operators want to maintain production, so they act to keep Flow Constant.

If you try to keep flow volume steady while radius shrinks, the Pressure MUST increase.

The 10” vs. 8” Example:
If your pipe shrinks from 10” to 8”, the resistance increases by 2.44x.

• To push 10,000 bpd through the clean pipe required 300 PSI of pump pressure.

• To push 10,000 bpd through the waxy pipe (8”), you need: 300 PSI x 2.44 = 732 PSI

The Operational Limit (MOP):

Suppose the pipe’s Maximum Operating Pressure (MOP) rating is 700 PSI.

The physics now demand 732 PSI to move the oil. You literally cannot apply enough pressure to maintain flow without blowing up the pipe.

The “Schmoo” Stop: The pumps trip out on “High Pressure Alarms.” The operator is forced to turn the pressure rate down. Flow stops. The fluid cools. The wax thickens further, making radius/diameter even smaller.

As radius shrinks, pressure required goes to infinity. The line becomes solid.

If this is still physics babble to you, imagine a garden hose. You twist the knob all the way for maximum flow.

Then you put your thumb at the opening. Flow remains constant since you’re not touching the source output.

What happens to the pressure at the end?

It goes up to maintain the same flow volume.

How do you fix an “Unpiggable” line?

If you can’t pig it, and you can’t pump through it, you have three options, ranging from “Expensive” to “Total Write-Off.”

A. Chemical Remediation - The Solvent Soak

Fill the line (if possible) or inject from both ends with aggressive solvents like Xylene, Toluene, or Hot Condensate. Hope the solvent dissolves the asphaltene/wax cake chemically. This requires the solvent to touch the blockage. If the line is 5km long and the plug is in the middle, the solvent might not reach it.

Cost: Extremely high chemical cost + downtime.

B. Coiled Tubing - The Roto-Rooter

Insert a flexible steel tube with a drill bit/jet nozzle on the end. Drive it down the pipeline to physically grind away the scale. Coiled tubing units typically only reach ~2,000–3,000 meters. EelReeel claims 7km reach; no confirmed operations in SAGD environment, only offshore so far. If your feeder line is 5-10km, the middle is out of reach.

C. Cut and Replace

Identify the plugged section. Cut the pipe. Weld in a new piece. In a total shut-in scenario where a line freezes solid with precipitated asphaltenes, this is often the only solution.

Cost: Often higher than building it new (because you have to handle hazardous waste removal of the pipe sections).

The Economics: Sectioning vs. Replacement

To safely unfreeze a 5km line without bursting it, you cannot just “Turn on the Heat.”

The Procedure:

1. Access: Dig up or access the pipe rack.

2. Sectioning: Physically cut the pipe or break flanges every 200–500 meters to create expansion relief points.

3. Steam: Inject steam hoses into each section individually.

4. Vacuum: Suck out the melting tar truck by truck.

5. Re-Weld: Weld the pipe back together. Hydro-test for leaks.

The Cost Audit:

• Cost to Build New: $1.5 Million / km.

• Cost to Section & Clean: ~$1.0 - $2.0 Million / km (Labor intensive, hazardous work, winter conditions).

The CEO’s Decision:
The remediation cost is higher than the replacement cost.

Therefore, on the balance sheet, the Frozen Asset is written down to Zero (or Negative value for Cleanup Liability) immediately.

Flow Stoppage Induced Damage Conclusion

When we say the infrastructure is “Totaled” or “Sterilized,” this is why.

Once asphaltenes precipitate and sinter onto the steel walls, they create a flow restriction that defies simple re-start procedures.

The operator finds that the pressure required to move oil through the restricted pipe exceeds the pressure rating (MOP) of the pipe itself.

You essentially have a 5km-long steel bar filled with concrete. You walk away and build a new one.

The steel didn’t vanish. The Asset could be saved.

But insolvent companies do not have the cash to execute a delicate, high-labor “Section and Steam” operation.

They treat it as a Binary State:

• Flowing = Asset

• Frozen = Scrap

If the Tier 3 operator enters “Hangingstone Turndown” mode and lets the gathering lines freeze in January 2026, those lines are functionally dead. The restart would require building a new pipeline network on top of the old one.

Gold Plating

Installing frequent “clean-out ports” or intermediate Pig Launchers every kilometer is known in engineering as “Gold Plating.”

In the low-margin world of SAGD, Gold Plating is the first thing cut from the budget.

The Design Philosophy: Run to Failure

They plan for Continuous Operations. To a cost engineer, building an “access door” every kilometer on a pipeline that is supposed to run hot and sealed for 20 years is Waste. It is the equivalent of installing zipper access panels on the fuselage of an airplane “just in case” you need to fix a wire mid-flight. You simply design the plane not to fail.

Gathering lines are designed with the assumption that hot fluid at 150C plus will flow 24/7/365.

These pipes are covered in thick insulation (Mineral wool/Aerogel) and an aluminum jacket. A flange or valve stem acts as a “Cooling Fin.” It sticks out through the insulation and radiates heat to the -30°C winter air. To minimize heat loss (and gas bills), engineers minimize the number of valves. A 5km gathering line is often designed as a continuous welded steel tube with zero breaks between the Pad and the Plant inlet.

The Difference between a “Valve” and an “Access Point”

Even if there is an emergency Block Valve at Kilometer 2.5 (for environmental isolation), you cannot put a tool through it.

Block Valve: A gate that slides shut to stop flow. You cannot insert a “Pig” or a “Coiled Tubing” drill bit through a closed or open gate valve from the outside.

Launch/Receive Trap: To get a tool into the pipe, you need a massive assembly called a Pig Trap (a “Y” branch with a pressure hatch).

Cost: ~$100,000 - $250,000 per station.

Tier 3 companies build One launcher at the pad and One receiver at the plant. They do not put $200k traps in the middle of the woods “just in case.”

The Regulator Hates Valves

The Alberta Energy Regulator (AER) and the standard code (CSA Z662 - Oil and Gas Pipeline Systems) govern these designs.

Where do pipelines leak?

• Continuous Weld: Almost never.

• Flanged Connections/Valves: >90% of the time. Gaskets fail, bolts loosen, stems corrode.

Every time you add an “Access Point” (a Flange or a Block Valve), you create a potential leak site. Operators are under immense pressure to minimize “Fugitive Emissions” and spill risks. Therefore, they design Continuous Welded Steel. They eliminate every single flange that is not absolutely mandatory for operations.

You Can’t “Stop and Start” a Pig

A “Pipeline Pig” (scraper) is pushed by the fluid pressure. It needs to travel at a constant velocity (e.g., 1–3 meters per second) to keep the wax suspended in the fluid ahead of it.

If you install an access catcher at Kilometer 2.0 to check the pig, you have to Stop the Flow. The debris you were pushing (the “sludge wave”) stops moving. The sand falls out of suspension. The wax settles. When you try to start pushing again, that settled sludge plug can generate enough friction to stick the pig permanently.

Pigs are “One Way Tickets” from Pad to Plant. You shoot it and pray it arrives. Stopping in the middle increases failure risk. Pigs are regular scheduled maintenance. Not an invincible Wunderwaffen. If the entire pipeline is a slug of cold bitumen a Pig isn’t going to accomplish anything.

Protocol if a PIG Gets Stuck

Stuck pigs (from wax buildup, debris, bends, or wear) pose a common risk in heavy oil lines. Industry best practices include:

1. Safety First: Depressurize the line, isolate sections, and follow lockout procedures.

2. Locate the Pig: Use signallers, acoustic/electromagnetic trackers, or pressure wave tools (e.g., Halliburton InnerVue).

3. Attempt Dislodging: Cycle pressure, reverse flow direction (if bi-di pig), or pulse fluid to bypass and push.

4. Advanced Retrieval: Launch a “rescue” pig or use specialized tools.

5. Last Resort: Excavate and cut the pipeline section

The “Coiled Tubing” Reach Limit

Even if you cut the pipe in the middle to let the Roto-Rooter (Coiled Tubing Unit) in, pushing a flexible steel noodle into a pipe filled with asphalt sludge has massive friction.

A standard Coil unit effectively pushes 2 000-3 000 meters before it buckles (the “noodle” kinks because it can’t push any harder). If your pipeline segments are 5km or 10km long (common in large leases), the middle 3km is physically unreachable by standard tools, even if you cut the ends open. Maybe EelReel can perform better than traditional units; no confirmed operations in SAGD environment, only offshore so far.

The “Tier 3” Cost Cut

Athabasca and Greenfire bought these assets from Majors (Statoil/Shell/Murphy) or built them on tight budgets.

• When the project was built, the Cost Engineer asked: “Do we need this intermediate crossover valve station for $1.5 Million?”

• The Operations Manager said: “No. We will just keep the flow hot and treat the fluid chemically. We don’t need a backdoor.”

The Consequence in 2026:
In Orinoco Displacement, the company is broke. They cannot afford to:

1. Mobilize an Excavator to dig up the frozen line.

2. Cut the pipe (Hot Tap).

3. Weld on a customized flange ($50k).

4. Rent a Coil Tubing rig ($50k/day).

5. Attempt to drill out the wax.

They literally don’t have the Working Capital to launch the rescue.

It makes sense to a layman to “build maintenance hatches,” but to a SAGD engineer, a pipeline is a pressure vessel, not a sewer line. You don’t put inspection hatches in a pressure vessel if you can avoid it.

The lines are continuous, welded, insulated tubes. Once they freeze, they are monoblocks. The lack of access points is a feature (for heat retention), not a bug, until the moment it becomes a coffin.

It is a calculated bet.

• “We will never run out of cash to generate steam/heat.”

A hyper-efficient, seamless, sealed Thermos tube designed to run 24/7.

Orinoco Displacement: The “Bet” fails. Cash runs out. Heat stops. Once the heat stops, the “Design” becomes a coffin. The lack of access points transforms a repairable breakdown into a total infrastructure write-off.

The industry plans for Maintenance (Replacing wear parts on a running engine).

They do not plan for Resurrection (Bringing a dead, frozen engine back to life). In an insolvency, the asset is dead.

Standard vs Insolvency Shutdowns of Surface Infrastructure

In normal operations, those feeder lines are the “arteries” of the asset, and they are aggressively recycled to service new wells. This explains why the Capital Efficiency of a mature SAGD project is supposed to get better over time—and why cutting the cord early (Orinoco shut-in) is such a massive destruction of “Option Value.”

The Daisy Chain Pad Architecture

A standard Tier 2/3 Gathering Line doesn’t just go to one well pair. It goes to a Pad that contains 6, 8, or 12 slots.

• Year 1-7: The line services Pairs 1-4.

• Year 8 (Pairs 1-4 decline): The operator does not abandon the pipe. They drill Pairs 5-8 (Sustaining CapEx) on the same dirt square.

They plug the new wells into the same gathering line system. The Capital Cost of that pipeline is amortized over the next generation of wells. You pay for the steel once, but you push 3 generations of oil through it.

The “Step-Out” Extension

Once the physical Pad is full (all slots drilled), operators perform a “Tie-In”. They build Pad B two kilometers further into the bush. Instead of building a new pipe all the way back to the plant (5km), they just build a short jumper pipe (2km) connecting Pad B to the existing line at Pad A.

The original feeder line acts as a “Collector Highway.” It stays useful for 20+ years, draining region after region.

Why the “Frozen” Scenario is distinct

Normal End-of-Life
When a pad is fully depleted (Year 20):

1. Flush: The operator circulates hot water or chemicals to push the last bitumen out of the pipe.

2. Purge: They fill the pipe with nitrogen or inert gas.

3. Result: The pipe sits empty and safe. It can be dismantled (Scrapped) or left for future use. It is a managed retirement.

Orinoco Shut-In
The operator shuts in before the new wells are drilled and without the cash to perform a proper chemical flush.

1. Trap: The line is left full of emulsion (Bitumen + Water).

2. Freeze: The “Popsicle” forms.

3. Write-Off: You not only lose the line; you lose the “Highway Capacity” to the undeveloped land behind it (Pad B, C, D). As we discussed, the cost for remediation vs replacement is about the same. This is dead infrastructure.

Normal Ops: Feeder lines are Assets. They are reused for Infills, new Well Pairs, and Step-outs. They lower the unit cost of future production.

Displaced Ops: Feeder lines become Liabilities. They are filled with toxic waste that freezes. The value of the “Future Wells” they were supposed to service goes to zero because the “Highway” to get them to the plant is destroyed.

Why wouldn’t a rational engineer perform a clean shutdown to save the asset?

Because a clean shutdown requires Working Capital, and an insolvent company has none.

The reason a “Panic/Disorderly” shutdown (frozen lines) is modeled instead of a “Preservation” shutdown (solvent flush and nitrogen purge) comes down to the behavior of Banks and Receiverships during a liquidity crisis.

The Cost of a Clean Funeral

To properly shut down a feeder line so it can be used again in 5 years, you must perform a Chemical Flush. You cannot flush with water (it freezes). You must flush with Condensate or Diesel. To fill a 12-inch, 10km pipeline loop requires thousands of barrels of fluid.

Buying 5,000 bbls of Condensate @ $60 = $300 000

Athabasca/Greenfire is defaulting. They have -$500k daily cash flow. The Bank has frozen the operating account.

• The Operations Manager asks the Receiver (Bank Rep): “Can I spend $300k on Diluent to flush the line?”

• The Receiver says: “No. We are conserving cash. Turn off the valve.”

The emulsion sits in the pipe. January hits -30°C. The pipe freezes. The asset is totaled.

The Heat Trace OpEx Bill

Even if you do flush the line, you cannot just walk away. Above-ground pipes have electric heating coils to prevent valves/flanges from shattering due to thermal contraction. This burns Electricity.

In a liquidation, the power company cuts off the site. Without heat tracing, even a “flushed” line suffers mechanical failure (gasket blowouts/cracks) due to extreme cold cycles.

Downhole Well Pairs: Is there recovery?

You never “recover” the steel. It is cemented into the earth. The $5-8 Million you spent to drill and line the well is gone the moment the steam pad stops operating and the myriad problems we described accumulate.

However, there is a massive difference between “Abandoned” and “Sterilized.”

Scenario A: Normal End of Life (Depleted)

• The oil is gone. You pump concrete down the hole (”Plug and Abandon”).

• Loss: Zero. You got the value out.

Scenario B: Orinoco Panic (Mid-Life Sterilization)

• 50% of the oil is still there. You stop injecting steam because you can’t afford gas.

• The Mechanics of Death: Refer to the last several thousand words we just went through about vagaries arising from the premature shutdown cycle.

Can you fix it? Technically, yes (Acid jobs, re-perforating, “Cyclic Soak” to remelt). But like surface infrastructure, the cost to remediate a cold, plugged SAGD well often exceeds the cost of just drilling a new one.

In the Orinoco scenario, the downhole steel isn’t just “lost” (it was always lost). The Productive Capacity of that steel is lost. The company paid for a straw to drink the milkshake. The panic shutdown caused the milkshake to freeze inside the straw.

You now own a worthless straw.

Physics of Shut In Summary

You aren’t just “turning off a switch.” You are allowing a dynamic thermodynamic system to crash into a cold, static state.

The energy required to reverse this entropy (remobilize the oil, clean the scale, melt the plugs) exceeds the reserves value.

This confirms why the SEC PUD De-Booking is immediate. The engineers know that a “Cold” Tier 3 reservoir is dead.

---

The Shut-In Dilemma

Recall our Standard Model of Shut In based on historical episodes in Alberta, showed approximately 350 000 bpd of SAGD production to be deleted.

Some companies balance sheets will have many shutdown-eligible marginal production well pairs. To do so would destroy their balance sheets. These are the currently marginal producing companies that would fail under any price stress scenario regardless.

Capitalism tells us that weak companies must be allowed to fail.

Will the government step in and compensate their loss in cashflow to “save” the wider industry and economy?

Applied Algebra and Real World Data

The data presented is a derivative classification based on bottom-up analysis of the Alberta Energy Regulator (AER) datasets and corporate reporting.

The government (AER) does not officially label wells “Tier 1/2/3”, this is investment bank/analyst terminology used to stratify asset quality.

However, the data powering these buckets comes from definitive sources:

1. AER ST-98 (Alberta Energy Outlook): Reports total bitumen supply.

2. AER “Thermal In Situ Scheme Performance” Data: The granular production data for every specific SAGD project.

3. Company Annual Reports

---

The “2 600 Well” Universe

Source: AER (Alberta Energy Regulator) / Daily Oil Bulletin. Lists the exact active number of SAGD wells.

AER ST98 Report – Crude Bitumen Well Activity

---

Tier 1 Unicorns (Cenovus/Suncor)

Source Evidence: Cenovus Energy and Suncor 2024 Annual Reports

2024 Cenovus Annual Report

2024 Suncor Annual Report

Cenovus Thermal (~600k bpd) and Suncor Firebag (~234k bpd) account for about 50% of the entire Canadian in-situ SAGD output of 1.5MBPD.

This confirms the “Small % of Wells = Massive % of Volume”.

---

MATH OF DESTRUCTION

With 2 600 active wells listed in 2024 AER reporting, we can derive a production profile curve.

We want the average production per pair in each decile to follow a smooth curve that starts low and speeds up toward the high end. This matches real SAGD data; lots of okay wells, a few amazing ones pulling most of the production. Look at the Cenovus and Suncor data.

We examine the AER well pair numbers and production reported for SAGD sites for 3 representative companies and locations. This gives us a rough idea of how to set the end points of our quadratic curve.

• AOC - Hangingstone/Leismer

• CNRL - Kirby/Jackfish

• Cenovus - Christina Lake/Foster Creek/Sunrise

Assuming a quadratic square distribution of 10% low producing wells of 200 bpd, aligning roughly with AOC Hangingstone. And then assigning 2000 bpd to the top 10% decile, we determine a cumulative production of 2.3MBPD from 2 600 well pairs, which is too high.

0.6545 was applied as a scaling factor to ensure cumulative production is 1.5MBPD.

The results after scaling indicate the 1^st decile of 260 well pairs produce 131bpd and top decile wells at 1309bpd.

1^st decile produces cumulatively 34 000 bpd of the 1.5MBPD, which is only 2.2%.

• 260 x 131 bpd = 34 034 bpd

The 5^th decile wells produce at 416bpd. The cumulative production of deciles 1 through 5 is 324 000 bpd.

Average production of 1.5MPBD / 2600 = 577 bpd

Recall our Standard Model of Shut In was 350 000 from the SAGD sector based on historical analysis.

If we are using the AVERAGE bpd rate, that would imply 350 000 CUT production requires 606 well pairs to be stopped.

However, with the production distribution profile established this means approximately 50% of the 2600 well pairs need to shut down. Which is actually 1 300 well pairs, 2x what using an average implies.

This is an enormous undertaking by pure numbers.

The top decile alone provides 340 000 bpd. These are the TIER 1 wells that will survive and not shut down ideally.

But the world is not ideal.

The cleanup effort is 2.14x larger than a linear model using AVERAGE BPD suggests.

DENSITY OF DESTRUCTION

The find that we must kill 50% of the active well inventory (1,300 pairs) just to achieve a 23% production cut is the specific mechanic that ensures chaotic insolvency rather than an orderly winding down.

Economic Pain (Revenue loss) is concentrated, but the Operational Pain (Shutting in physical infrastructure) is widely distributed.

The Fixed Cost Death Spiral: The Plant Kill

If the 350,000 bpd cut came from “Average” wells (606 pairs), it would be concentrated. You might shut down 6 major plants at 350 000 / 6 = 58 000 bpd plants.

Because the cut actually comes from the bottom 1,300 wells, the damage is scattered like buckshot across the entire industry.

These 1,300 weak wells don’t all live on one pad. They are likely mixed in with Tier 2 wells feeding centralized plants.

If a 30,000 bpd plant gets 15,000 bpd from “Decile 1-5” wells and 15,000 bpd from “Decile 6-7” wells:

• You have to shut in 50% of the feedstock (The weak half).

• The plant is now running at 50% capacity. This hits the “Minimum Turndown” constraint. The plant becomes unstable/unprofitable to run on the remaining good wells.

Killing the CPF

You cannot run a massive Central Processing Facility (CPF) at 50% utilization. The efficiencies scale with higher utilization. CPFs run massive steam generators and water treatment plants. They have a “Minimum Turndown.” If you run a plant below ~50-60% capacity, it becomes unstable or horribly inefficient (energy/cost). If you drop below min-turn down, you don’t just “lose efficiency”; you often face safety risks (flame instability) or water treatment chemistry failure (scaling).

A top fuel dragster may make many thousands of horsepower, but if all you’re doing is driving to the grocery store, you get a Toyota.

• To cut the volume, you have to shut down entire Steam Pads or entire Phases. You CAN selectively decide specific well pairs per steam pad. But TOTAL PLANT utilization determines the actual efficiency curve.

• A SAGD Pad: Usually consists of 8–12 well pairs.

• You don’t get to cherry-pick. When you shut the Pad, you kill the Tier 1 (1,500 bpd) wells alongside the Tier 3 (400 bpd) wells. Selectively shutting down too many poor performers, can push you towards the physics of plant efficiency declining and therefore deteriorating economics.

Thermal Parasitism: The Cold Neighbor Effect

You might think shutting down a “Bad Well” saves money. Physics disagrees.

You have Well Pair A (Running) next to Well Pair B (Shut-in/Cold). Thermodynamics demands equilibrium. Heat moves from Hot to Cold.

Instead of heating the oil above it, the steam injected into Well A starts migrating sideways to heat up the giant block of cold rock/fluid at Well B. The SOR (Steam Oil Ratio) of your “Good” well (Well A) spikes. You are burning gas in Well A to reheat the dead corpse of Well B.

You cut the bad well to save steam, but now the good well needs more steam just to maintain its rate. You effectively taxed your winner to pay for the loser’s funeral.

Pressure Communication Risks: Blowby

SAGD chambers often merge. After 5 years, the steam bubble from Pair 1 connects with Pair 2. Both running at 3,000 kPa pressure. Equilibrium. No fluid transfer.

You stop Pair 1. Pressure drops to 1,500 kPa. Pair 2 is still at 3,000 kPa. Steam takes the path of least resistance. The High-Pressure steam from Pair 2 blasts through the porous rock into the Low-Pressure void of Pair 1.

You are paying to generate steam for Pair 2, but it is “Short Circuiting” into the dead chamber of Pair 1 and condensing there uselessly.

You lose pressure in the good well and fail to restart the bad well. You kill both.

You don’t “Trim” the fleet; you Mothball Entire Plants.

You are forced to shut in the entire plant (including the profitable wells) because the “Density of Bad Wells” poisons the fixed cost structure of the facility. This creates an Overshoot where total production falls far more than 350,000 bpd with a mix of all 3 Tiers of well pair performers.

Per company balance sheets will reveal vastly different sensitivities to Orinoco price pressure.

The Liability Avalanche - Asset Retirement Obligation

Shutting down 1,300 wells is legally and environmentally distinct from shutting down 600.

Every inactive well triggers a regulatory clock (Inactive Well Compliance program).

If plugging and abandoning a SAGD pair costs ~$300,000:

· Averaged Model (606 wells): $181 Million Liability.

· Quadratic Model (1,300 wells): $390 Million Liability.

That extra $210 Million in cleanup liability hits the balance sheets of the companies least able to pay it (Tier 3 Juniors). It pushes them from “Distressed” to “Liquidation.”

The Service Sector Depression of the Human Economy

Tier 1 wells (Unicorns) are highly automated. Tier 3 wells (The Dogs) are maintenance hogs.

These 1,300 bad wells break pumps, scale up, sand off, and require constant service rig interventions. A huge portion of the blue-collar service economy in Northern Alberta is employed keeping these “bad” wells alive.

Shutting in the bottom 50% of the well count wipes out a disproportionately large amount of oilfield services employment compared to the volume lost. The regional economy (hotels, trucks, contractors) takes a 50% hit, not a 23% hit.

The Insolvency Contagion

Because these 1,300 wells represent the “Working Class” of the oil sands (High OpEx, Low Margin), they are the cash flow generators for the Mid-Cap sector.

Cenovus/Suncor own the Top Decile. They barely flinch.

Junior/Mid-Cap Exposure: Their entire portfolios are built on Deciles 3–7. To cut the bottom half of the fleet, companies like Greenfire or Athabasca might have to shut in 70-80% of their active well count. Banks often demand a certain “Active Well Count” ratio. Slashing the active count by half triggers immediate loan recalls.

The Tail Wags the Dog

The Canadian Oil Sands is not a homogenous block. It is a Pareto Distribution.

The Head (Deciles 9-10): Hyper-efficient, bulletproof. (Safe).

The Long Tail (Deciles 1-5): Inefficient, labor-intensive, numerous. (Dead).

In the Orinoco Displacement, the market forces a 350 000 cut. Because geology forces that cut to come from the “Tail,” the industry has to massacre half its active infrastructure (1,300 wells) just to trim one quarter of its output.

This massive ratio (high physical destruction / low volume savings) is the definition of Capital Inefficiency, and it guarantees the “Financial Heart Attack” scenarios modeled.

Active Well (PDP) vs Total Project (PUD) Accounting

Shutting in mid-life wells dramatically lowers the “Active Well” sterilization number.

Operations introduce a “Facility Trap” that reinflates the disaster numbers.

PDP: Proved Developed Producing

PUD: Proved Undeveloped

The Single Well Audit

Let’s strip it down to the single straw (well-pair).

Assumption: A mid-life SAGD well has already produced its “Easy Oil.” The reservoir pressure is lower, the steam chamber has reached the roof (Caprock). A well pair is engineered with the assumption of 5-10 years of production.

However the entire steam pad and reservoir development plan is based on 20 - 30 years.

Oil production follows a decline curve. A mid-life well isn’t flowing at Peak (Plateau) rates; it’s on the down-slope.

If a well is mid-life, its remaining “Recoverable” oil is likely less than half of its initial volume (since production rates are highest in the first third of life).

Wedge Oil

In modern SAGD, you don’t just drill the main pairs; you rely on “Infill Wells” (Wedge Wells) drilled between the old pairs to harvest the heated oil left behind in the gaps.

Infill wells are typically drilled at years 5-10 (Mid-Life). They are “Low Cost, High Yield” barrels because the rock is already hot from the neighbors. No steam injection pipe is needed.

If you kill the main Mid-Life pair, the “Heat Halo” dissipates. This is why selectively choosing 577 well pairs still materially affects the economics.

You effectively sterilize the Undrilled Infill Locations. You cannot drill a cheap infill well into cold rock.

This deletes roughly 20–30% of the expected future recovery from that specific pad without having to shut in a specific active well. While also destroying the unit cost economics of that steam pad.

Sterilization

We will assume perfect efficiency and halfway decline logic of continued 577bpd and exactly 50% remaining reserves. As noted above, this is not the case in reality. There is a constant decline rate of 10% - 15% per year.

Steam pad geology and drilling schedules would need to be modeled per location to determine the exact decline profile of the main well pairs, and then the uplift in production from infill well production. Instead, we simplify.

Our 577bpd continuous production number implicitly bakes in normal infill well production mitigation.

· Total Wells Shut: 350 000 bpd / ~577 bpd (Marginal Producing Well Pairs) = 606 wells.

· Physical Sterilization (PDP): 577bpd x 365 x 5 years = 1.1M barrels

· 1.1M single well 4 year production barrels x 583 wells = 638M barrels

638M barrels of production/reserves assumed to be on the balance sheet of the Canadian oil industry become mathematically invalid. Remember we are using a well pair design life of 10 years, shutting them in at half life; therefore the 5 year remaining production span.

This is a highly simplified shutdown model. There are 1 600 well pairs that produce <577 bpd OR LESS.

The reality, noted in our previous math section, will be an enormous number of very low production wells shut down first.

This means the potential for total loss explored in associated facility shutdowns would mean 638M barrels of lost production should be a FLOOR MINIMUM estimate.

In a word: Devastating.

The Accounting Hit (NI 51-101 / SEC S-K 1300)

When you Mothball a Facility (shut the gates, lay off staff):

PUD De-booking: You are legally forced (under SEC/CSA reserves rules) to write off 100% of the Proved Undeveloped (PUD) reserves attached to that plant.

A plant flowing 50,000 bpd usually has ~500M to 1 Billion barrels of “Future Reserves” attached to the surrounding lease, waiting to be drilled in years 2030-2050. That is a ratio of 10 000 or 20 000 reserve barrels to 1 production barrel.

The Reserves per Flowing Barrel Audit:

• MEG Energy (Tier 2 Benchmark):

  • Flow: 100,000 bpd.

  • Claimed Reserves (2P): ~2.0 Billion

  • Ratio: 20,000 barrels of reserves for every 1 bpd of flow.

• Athabasca (Tier 3 Benchmark):

  • Flow: ~33,000 bpd.

  • Claimed Reserves (2P): ~1.2 Billion

  • Ratio: 36,000 barrels of reserves for every 1 bpd of flow. (High PUD component).

Total De-booking: If you shut down plants representing 350 000 bpd flow, you likely de-book the ADDITIONAL 3.5-7 Billion barrels of reserves that would have flowed through those plants over the next 30 years.

• 350 000 bpd cut / 50 000 bpd midsize plant = 7 plant shutdowns

• 3.5B barrels at 500M remaining Future Reserves; 10 000:1 ratio

• 7B barrels at 1B remaining Future Reserves; 20 000:1 ratio

As it turns out, our modeled parameter estimation is CONSERVATIVE when we are looking at an example company like AOC; which has a reserve ratio 80% higher than the 20 000 estimate.

Financial Destruction of Reserves

Under SEC rules, Mining Reserves are essentially treated like a manufacturing stockpile. Because the ore (tar sand) is on the surface and cold, you do not have to write it down to zero just because you stopped digging for a year. The ore doesn’t degrade. SAGD is far more involved to develop and maintain as we covered in the engineering section.

The immediate physical trap captures 638M fewer total barrels if assuming mid-life SAGD production with a simplified 606 well stoppage. Recall the actual stoppage will be much higher and number approximately 1 300 well pairs.

But the Industrial Outcome is catastrophic:

• By killing the flow, you kill the Facility Efficiency.

• To save costs, companies shut down entire sites, not just marginal wells.

• Shutting the site kills the Paper Reserves (PUDs) legally and biophysically (future phases).

While the ‘Cold Rock’ effect immediately traps only 638M (low estimate) barrels of active oil (PDP), the necessary shuttering of entire Central Processing Facilities triggers an SEC-mandated de-booking of the undeveloped phases.

This paper loss essentially wipes 3.5 - 7 Billion Barrels off the nation’s reserve balance sheet.

This deletion from field damage and legal accounting removes roughly 2.5% - 4.8% of all Canadian oil reserves of 160B.

0.6B + 3.5B = 4.1B / 160B = 2.5%

0.6B + 7B = 7.6B / 160B = 4.8%

But the total SAGD commercial booked assets at 17B will suffer 24% - 45% of accounting writedowns from PUD debooking.

4.1B / 17B = 24%

7.6B / 17B = 44.7%

If the in situ SAGD oil is valued at a paltry $15USD/bbl, that is $62B - $114B of balance sheet evaporation.

The financial contagions spreads far beyond the oil sector. It goes to the banking sector. From there…

REVERSE DUTCH DISEASE

When you wipe out 24% - 45% of the book value of a capital-intensive sector, you trigger a Credit Contagion event.

It acts as a reverse wealth effect. The Canadian banking sector is effectively “Short Venezuela” via its loan book.

Banking Crisis RBL Massacre

Canadian banks lend to oil companies via Reserve Based Lending (RBL). This is a revolving line of credit secured by the Net Present Value (NPV) of the oil in the ground.

The Reserve Writedown occurs. 7 Billion barrels (PUDs) are deleted. The Banks recalculate the NPV of the remaining assets using the new $30 WCS price deck.

The borrowing base shrinks. Athabasca Oil Corp has a line of $300M. The Bank re-evaluates collateral and says: “Your reserves are now worth $100M. You are $200M overdrawn.”

The Demand: “Pay us $200M cash in 30 days.”

The companies don’t have the cash. They default.

Provision for Credit Losses Impact on the Big 6 Banks (RBC, TD, BMO, Scotia, CIBC, National):

Banks must immediately set aside billions in cash to cover the bad loans.

• Bank earnings crash.

• Dividend hikes are cancelled.

• Share buybacks stop.

To preserve capital ratios (CET1), banks tighten lending standards for EVERYONE.

The “Credit Crunch”: Small businesses in Ontario and Vancouver suddenly can’t get loans because an oil plant in Fort McMurray went insolvent.

Albertan Recession

Calgary downtown office vacancy is already high. In an insolvency wave, Tier 3 companies liquidate. They break leases. Commercial real estate values plummet further, hitting pension funds and REITs holding those towers.

350 000 bpd of production shutdown means roughly 10,000 - 15,000 direct high-paying jobs lost (plant operators, drillers, service rigs) and 30,000 indirect jobs. Unemployed rig workers in Edmonton cannot pay mortgages.

The banks lose money on the Oil Loans, and then they lose money again on the Mortgages of the people who worked for the oil companies.

And then those same people move away and get jobs in US PADD3.

Fiscal Cliff Equalization Shock

Canada’s federal spending model relies heavily on Alberta being a “Have” province.

Alberta Gov relies on royalties for ~25-30% of the budget. Under Orinoco displace Royalties drop to Minimum (1%).

Alberta runs a massive deficit. They slash public spending.

With Alberta broken, the Federal Government loses a massive net tax contributor.

The Federal Deficit blows out.

Sovereign Credit Rating: Agencies (Moody’s/S&P) downgrade Canada’s debt rating. The cost of government borrowing rises.

Reverse Dutch Disease Summary

Economists worry about “Dutch Disease”: Booming resource sector kills manufacturing.

Orinoco Displacement triggers the Reverse: The resource sector dies, but manufacturing is too weak to replace the lost GDP.

1. Banks: Absorb Billions in loan losses; stop lending to the broader economy.

2. Dollar: Crashes to 0.60USD range; import inflation spikes.

3. Real Estate: Regional crash in the West; contagion fear in the East.

4. Fiscal: Federal and Provincial budgets blown out; austerity required.

5. More Albertans seriously consider secession under financial repression due to the 3 year Fiscal Capacity averaging.

The write-down of 24% - 45% of SAGD Reserves is not just a spreadsheet error. It is a Balance of Payments Crisis for Ottawa. It breaks the fundamental economic contract of the Canadian Confederation: Resource wealth subsidizing national services.

Canadian Oil Industry System Dynamics Synthesis

If Canada experiences a total 700,000 bpd shut-in, it isn’t “saving the oil for later.”

The Canadian oil industry will be affected heterogeneously. CHOPS and SAGD producers will bear the majority of the damage. CHOPS first then SAGD.

Orinoco Heavy is a functional 1:1 competitor. Due to geography, the WCS price cannot compete once the political situation stabilizes. PADD3 refiners will be begging for Orinoco cargoes to achieve fat profit margins.

Permanent Damage: A significant percentage of those wells (especially marginal ones) will experience reservoir damage, sterilization or water influx during the cool-down. Surface infrastructure is heavily damaged as well. SAGD is hit the hardest.

The CapEx Shock: To bring them back, you basically have to “Re-Drill” or “Re-Stimulate” the whole field, effectively paying the initial startup cost again but for a declining asset.

Once the well turns cold, the biophysics dictate that it is usually cheaper to drill a new well elsewhere than to revive the corpse.

Already marginal producers and those relying upon rail transport will be priced out of the market.

A price shock begins to immediately affect the book value of all companies. Negative cash flow renders reserves to be classified from PDP/PUD to Contingent. Banks don’t give operating credit on assets that don’t have positive NPV.

A simplified model based on average 577bpd of 2 600 well production, indicates 606 well at risk of shutdown. Calculated production profile indicates the true number to be 1 300 well pairs at risk. The effect on the economy is non linear and actual targeted 350 000 cut will be overshot due to the specifics of CPF operations.

Total SAGD commercial booked assets at 17B will suffer 24% - 45% of accounting writedowns.

If the in situ SAGD oil is valued at a paltry $15USD/bbl, that is $62B - $114B of balance sheet evaporation.

The write-down of 24% - 45% of SAGD Reserves is not just a spreadsheet error. It is a Balance of Payments Crisis for Ottawa. It breaks the fundamental economic contract of the Canadian Confederation: Resource wealth subsidizing national services.

Marginal pricing ensures the price shock propagates even without a full 700 000 bpd displacement. Economics will dictate the price of WCS. That price will need to match the much cheaper Orinoco oil.

We created a standard model of Shut In based on historical precedent. Shut In impacts due to geology and financial rules will create enormous macroeconomic impacts on Canada.

The 700k capacity doesn’t just sleep; it rots.

The Dilemma’s Conclusion

If you look at the 10-Year Trajectory:

• Pumping: Leaves you with a worthless dollar but a functioning industrial base that could recover if pipelines were built.

• Shutting In: Leaves you with a stable dollar but a “Rust Belt” energy sector that has structurally shrunk and cannot pivot back without massive CAPEX when the window reopens.

Canada has no good moves.

The US strategy (Operation Pompey) will push Federal Canada into a position where it must destroy its own future inventory just to survive the present fiscal quarter.

Independent of deliberate US Imperialist policies, stabilization of Orinoco cargoes can and will push US heavy oil refiners to buy those cheaper barrels.

OR

Alberta can choose to pre-emptively defect and ensure their own economy continues to get guaranteed PADD3 quotas. Equalization via Fiscal Capacity 3 year average guarantees a lot of Angry Albertans under a 700 000 bpd shut in.

The OPTIMAL AB_Z_STRAT is Secession.

---

Example Financial Outcomes

STATEMENT OF NEUTRALITY AND NON PARTICIPATION:

The CIA Research Team has no current open long or short positions on any company in any country in the oil industry as of the current publishing date. Our research is only meant for examining the System Dynamics of the Economy.

Below are the modeled financial results based on 2024 cost structure for MEG and AOC respectively. At current WCS price, under $30 differential blowout; we accommodate a Royalty cost of $1 minimum and account for the diluent cost with current WTI pricing.

Current WTI/WCS differential is $13.

MEG shows a LOSS of $6 per barrel.

Assuming their 2025 cost structure is similar, MEG can tolerate a WCS differential of roughly $24 before losses per barrel.

AOC true transport cost will be similar to MEG once accounting for the Aggregators bid to transport to PADD3. Which makes their cost $42 per barrel at WCS $35.65 ; a loss of $6.

They are in the same boat as MEG.

You’ve made it to the end. Congratulations. It was as hard for you to read as it was for our Research Team to compile, verify, calculate and synthesize. There is never a explicit word count or length target for any research. What is presented is what the Research Team thinks is necessary for a full understanding of a particular subject. This just happens to a massive System Dynamics piece on the entire Canadian Oil Industry.

For the people that saw a tiny scroll bar and immediately closed the browser, they are not the target demographic. You, reading this Addendum, are the target. You are here for long form, in depth analysis and we’ll never change our report style.

A formal announcement will be made in a few days regarding the future of this Substack and its move to a paid research facility. We will be publishing full unredacted long form analysis for the next month.

Then the freebies will mostly stop.

If you thought tens of thousands words of System Dynamics Analysis was being offered for free indefinitely was too good to be true, you’re right.

The stealth discount, to be formally announced, will be $50/month or $500 per year that will be active for 1 month before we revert permanent pricing to the current institutional pricing of $200/month or $2000 per year. This founder level discount will never be available again.

The stealth discount will be active immediately upon the release of this dispatch for Pledgers to lock in their lifetime Founder’s Rate.

Existing Pledged Subscribers (already recorded for bookkeeping) who have already pledged at the current pricing monthly will receive 2 months free on a monthly plan or 4 months free on a yearly plan. Your pledges will automatically down-convert to the discount pricing instead of paying the full institutional price in addition to the free months.

Thank you for your support.

And finally thank you to Michael Burry who publicized our work. Once we go paid, the least we can do is give Lifetime free access to our research. We would not have the many thousands of subscribers today without your sharing of our work. The monetary value is peanuts for you but we aim for the knowledge value to be of high utility for areas you may not have interest and awareness of.

The Venezuelan Oil Saga

Read in this order to get the full picture…

Might is Right - US Energy Imperialism

The Venezuelan Long Lose - The Entropic Slope and Zero Sum Games

Venezuelan Historical Primer: Friend, Foe, Vassal

Trump’s Enormous C-Length Win over China

Optimal Zero Sum Game Theory: The American Century

The Geological, Engineering, and Financial System Dynamics of the Canadian Oil Industry

The Art of War: Canada, America, China
